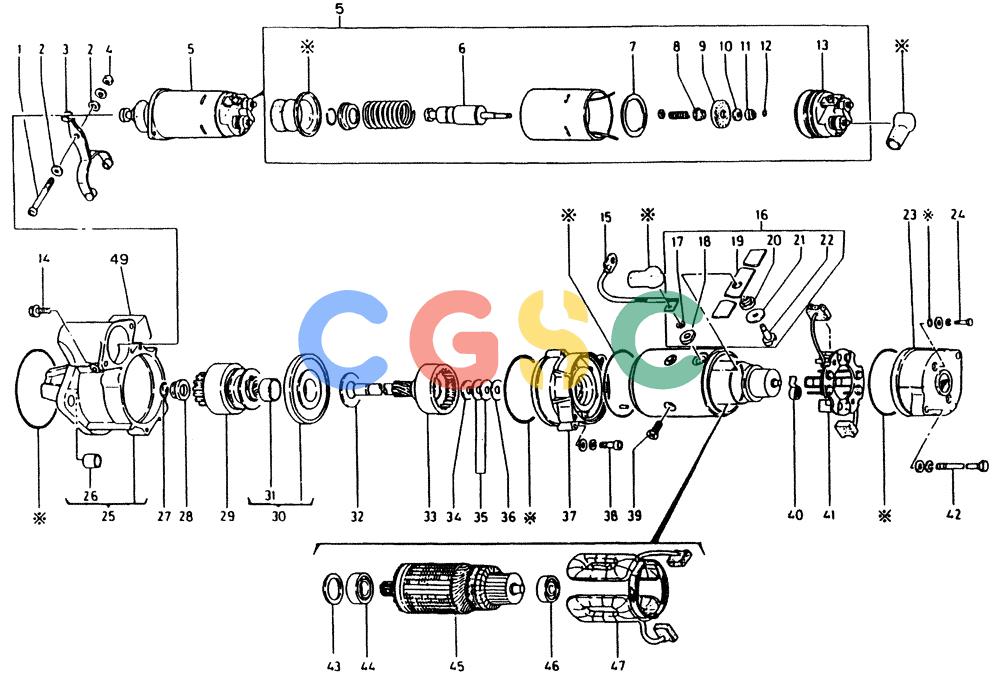

神钢零件查询(4JB1) - ISUZU DIESEL ENGINE (1/06-12/07) (01-050) - STARTER (NIKKO) Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
1003 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | VI8941514133 | [1] | STARTER ASM, 12V-2.2KW | |
| 1. | VI1811290400 | [1] | PIN, LEVER | |
| 2. | VI9821253410 | [2] | SEAL,WASHER | |
| 3. | VI8941780170 | [1] | LEVER ASM,SHIFT | |
| 4. | VI5094000250 | [1] | NUT | KOB Superseded by part number: 5094000250 |
| 5. | VI8943216860 | [1] | SWITCH ASM,MAG. | |
| 6. | VI8941780200 | [1] | PLUNGER | |
| 7. | VI8941780210 | [1] | PACKING | |
| 8. | VI8941780220 | [1] | BUSH,INSULATE | |
| 9. | VI8941780230 | [1] | CONTACTOR,MOVING | |
| 10. | VI8941780240 | [1] | WASHER,INSULATE | |
| 11. | VI5811180190 | [1] | HOLDER | |
| 12. | VI5811291490 | [2] | CLIP RING | |
| 13. | VI8941780280 | [1] | TERMINAL ASM. | |
| 14. | VI8941780260 | [2] | BOLT | |
| 15. | VI8941780270 | [1] | WIRE ASM,LEAD | |
| 16. | VI8941780280 | [1] | TERMINAL ASM. | |
| 17. | VI9881201760 | [1] | WASHER | |
| 18. | VI8941780290 | [1] | BUSH,INSULATE | |
| 19. | VI8941780300 | [1] | SEAT,INSULATE | |
| 20. | VI8941780310 | [1] | BUSH,GUM | |
| 21. | VI8941780320 | [1] | SEAT,INSULATE | |
| 22. | VI8941780330 | [1] | RIVET | |
| 23. | VI8944188630 | [1] | BRACKET ASM.,RR. | |
| 24. | VI8941780350 | [2] | BOLT | |
| 25. | VI8941780360 | [1] | BRACKET ASMIFRT. | |
| 26. | VI8941780370 | [1] | SET OF STD MAIN BRGS | KOBMETAL |
| 27. | VI8941780380 | [1] | CLIP RING | |
| 28. | VI8941780390 | [1] | STOPPER,PINION | |
| 29. | VI8941780400 | [1] | CLUTCH ASM,0.R | |
| 30. | VI8941780410 | [1] | BRACKET ASM,CENTER | |
| 31. | VI8941780420 | [1] | METAL | |
| 32. | VI8941780430 | [1] | WASHER,INSULATE | |
| 33. | VI8941780440 | [1] | SHAFT | |
| 34. | VI5811291600 | [1] | WASHER | |
| 35. | VI5811291590 | [1] | WASHER | |
| 36. | VI5811291580 | [1] | WASHER,INSULATE | |
| 37. | VI8941780450 | [1] | BRACKETICETER | |
| 38. | VI8941780460 | [2] | BOLT | |
| 39. | VI5811290240 | [4] | SCREW,DISH | |
| 40. | VI8941780470 | [4] | SPRING,BRUSH | |
| 41. | VI8941780480 | [1] | HOLDER ASM,BRUSH | |
| 42. | VI8941780490 | [2] | BOLT | |
| 43. | VI5811291560 | [1] | SET OF THRUST WASHER | KOBWASHER |
| 44. | VI1811295310 | [1] | BEARING,BALL | |
| 45. | VI8344188670 | [1] | ARMATURE ASM. | |
| 46. | VI8944188660 | [1] | BEARING | KOBBALL |
| 47. | VI8941780520 | [1] | FIELD COIL ASM. | |
| 48. | VI8943216880 | [1] | SEAL KIT | |
| 49. | VI1811710280 | [1] | RELAY,SAFETY | |
