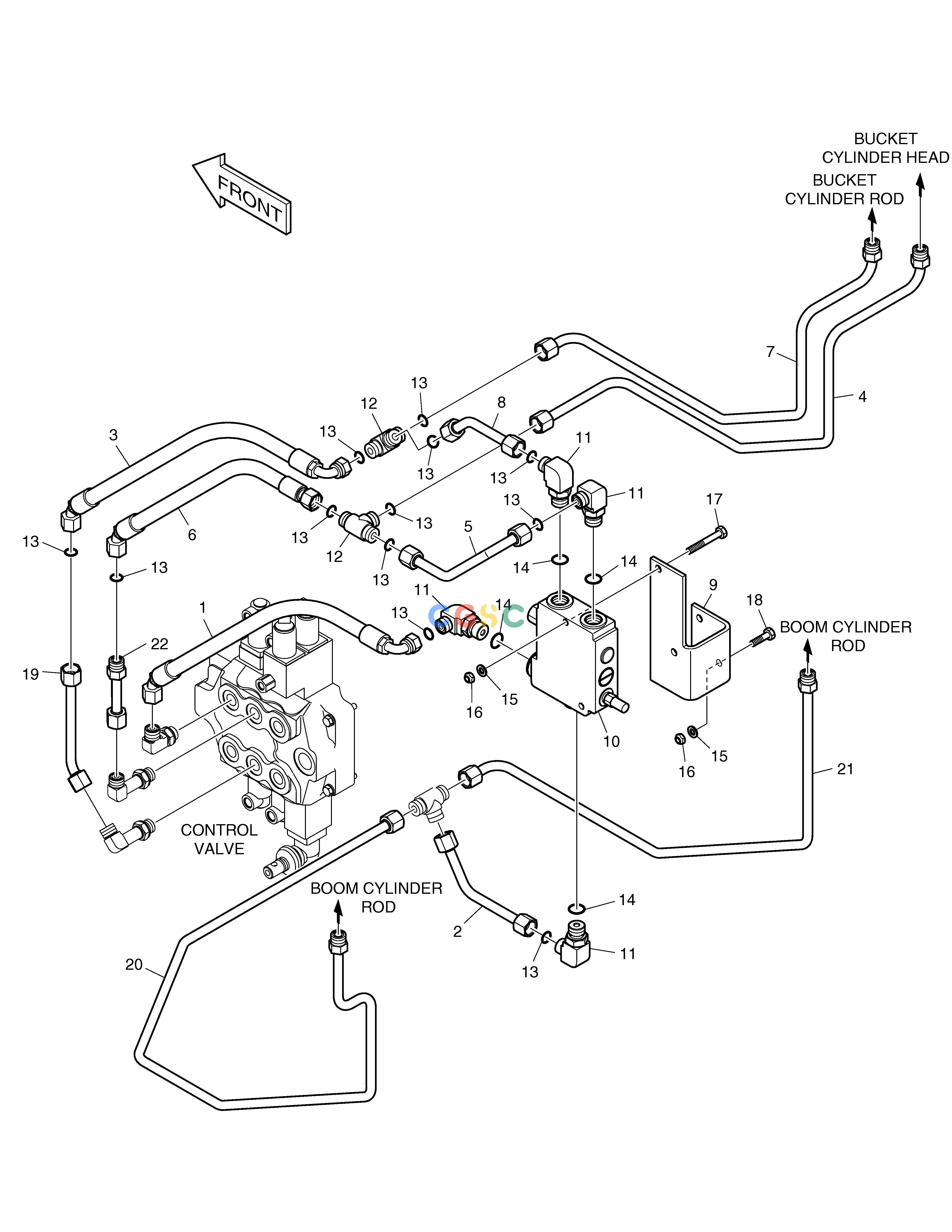

斗山零件查询SELF LEVELING PIPING-JOYSTICK 440 PLUS Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
521 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1023393
|
[-] |
SELF LEVELING PIPING
|
|
| 1. |
DS2021154
|
[1] |
HOSE
|
|
| 10. |
K1022551
|
[1] |
VALVE;SELF LEVEL
|
K1022551A
|
| 10. |
K1022551A
|
[1] |
VALVE;SELF LEVEL
|
|
| 11. |
K1023067
|
[4] |
ELBOW
|
|
| 12. |
K1023088
|
[2] |
TEE
|
|
| 13. |
S8040081
|
[10] |
O-RING
|
|
| 14. |
S8040101
|
[4] |
O-RING
|
|
| 15. |
K1023146
|
[4] |
WASHER;HARDENED
|
|
| 16. |
K1023115
|
[4] |
NUT;LOCK
|
|
| 17. |
S0509963
|
[2] |
BOLT
|
|
| 18. |
S0555963
|
[2] |
BOLT
|
|
| 19. |
K1022211
|
[1] |
TUBE
|
|
| 2. |
K1020991
|
[1] |
TUBE
|
|
| 20. |
K1021218
|
[1] |
TUBE
|
|
| 21. |
K1020995
|
[1] |
TUBE
|
|
| 22. |
K1022212
|
[1] |
TUBE
|
|
| 3. |
DS2021155
|
[1] |
HOSE
|
|
| 4. |
K1020992
|
[1] |
TUBE
|
|
| 5. |
K1020993
|
[1] |
TUBE
|
|
| 6. |
DS2012352
|
[1] |
HOSE
|
|
| 7. |
K1020825
|
[1] |
TUBE
|
|
| 8. |
K1020826
|
[1] |
TUBE
|
|
| 9. |
K1020827
|
[1] |
BRACKET
|
|
