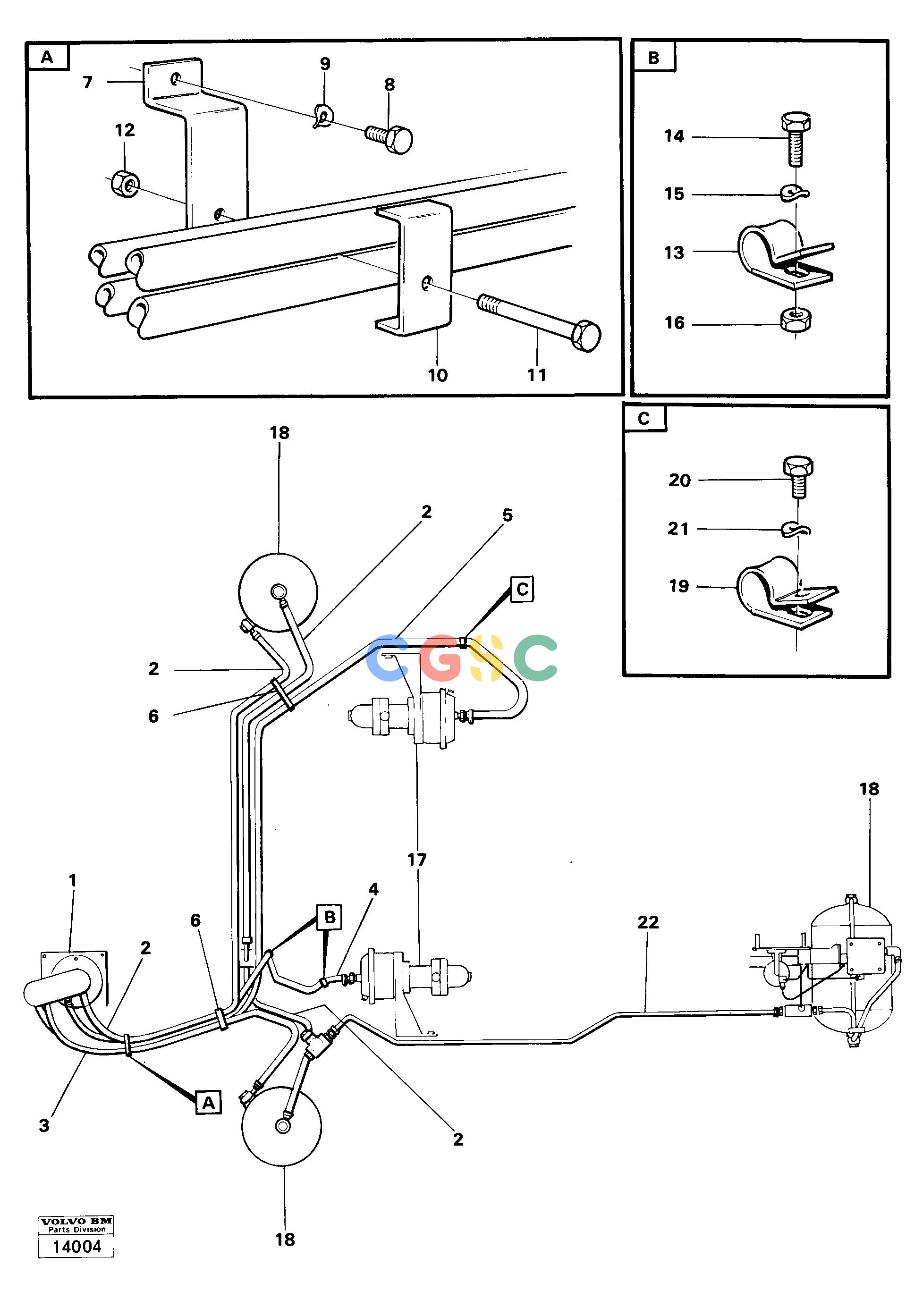

沃尔沃零件查询4300 Pneumatic system pipes4300 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
728 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 5. |
VOE928948
|
[3000] |
Hose
|
|
| 6. |
VOE4881440
|
[0002] |
Cable tie
|
|
| 7. |
VOE4741345
|
[0001] |
Anchorage
|
SER NO -1025
|
| |
VOE912429
|
[0001] |
Spacer ring
|
SER NO 1026-
|
| 8. |
VOE13955295
|
[0001] |
Screw
|
SER NO -1025
|
| |
VOE940142
|
[0001] |
Hexagon screw
|
SER NO 1026-
|
| 9. |
VOE13941907
|
[0001] |
Washer
|
|
| 1. |
|
[0001] |
Brake valve
|
|
| 10. |
VOE4741340
|
[0001] |
Cap
|
SER NO -1025
|
| |
VOE13945301
|
[0002] |
Clamp
|
SER NO 1026-1352
|
| |
VOE930789
|
[2] |
Clip
|
SER NO 1353-
|
| 11. |
VOE955303
|
[1] |
Hexagon screw
|
|
| 12. |
VOE955782
|
[1] |
Hexagon nut
|
|
| 13. |
VOE7018366
|
[2] |
Clamp
|
|
| 14. |
VOE940142
|
[1] |
Hexagon screw
|
|
| 15. |
VOE13941907
|
[1] |
Washer
|
|
| 16. |
VOE955782
|
[1] |
Hexagon nut
|
|
| 17. |
|
[2] |
Brake unit
|
|
| 18. |
|
[3] |
Air tank
|
|
| 19. |
VOE7018366
|
[1] |
Clamp
|
|
| 2. |
VOE928948
|
[REQ] |
Hose
|
L=2X2000
|
| 20. |
VOE940199
|
[1] |
Hexagon screw
|
|
| 21. |
VOE13941907
|
[1] |
Washer
|
|
| 22. |
VOE4926906
|
[1] |
Tube
|
|
| 3. |
VOE928948
|
[1350] |
Hose
|
|
| 4. |
VOE928948
|
[1800] |
Hose
|
|
