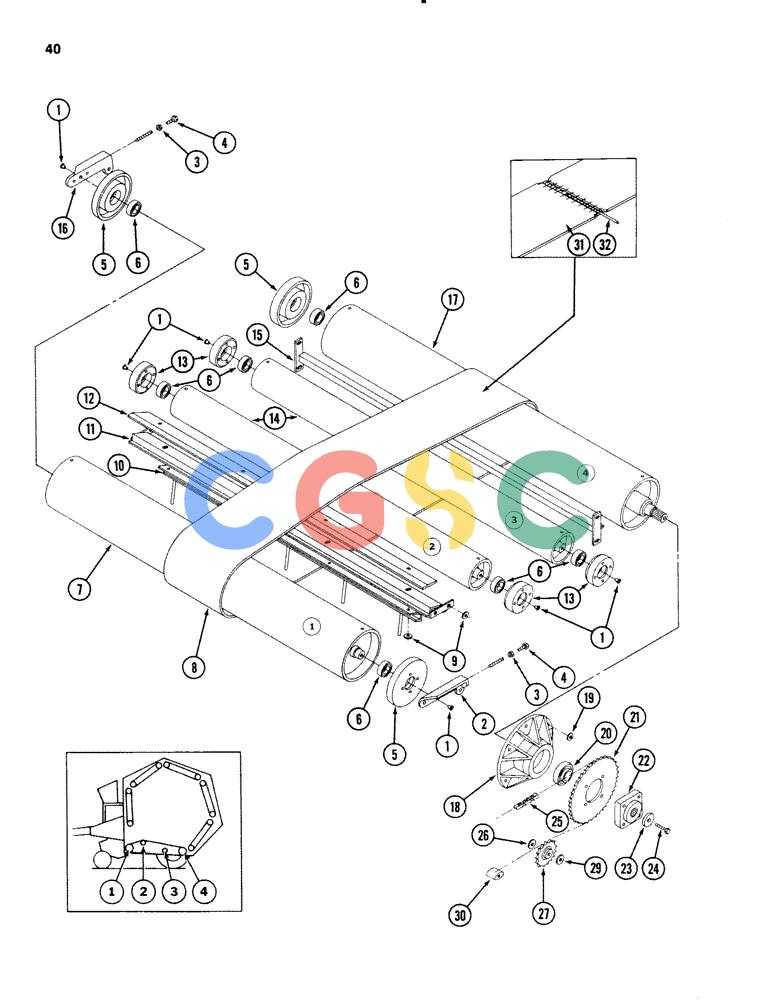

| 1. |
1017954R1
|
[1] |
PLUG,Cap, .485" OD
|
IH
- cap Superseded by part number: 87644289
|
| 2. |
ZA105070
|
[1] |
BLOCK
|
IH
- adjusting left
|
| . . |
180081
|
[2] |
BOLT,Hex, 5/16"-18 x 1 1/4", G5
|
IH
hex, 5/16"-18 NC x 1-1/4", grade 5 Superseded by part number: 179820
|
| 3. |
120378
|
[2] |
NUT,Hex, 1/2" - 13, Gr 5
|
IH
NUT, 1/2"-13, G5 Superseded by part number: 280431
|
| 4. |
180192
|
[2] |
BOLT (SPREADER),Hex, 1/2" - 13 x 3 1/2", Gr 5
|
IH
BOLT - hex, 1/2 NC x 3-1/2 inch Superseded by part number: 179895
|
| 5. |
ZA105046
|
[3] |
COLLAR
|
IH
- bearing
|
| . . |
9635884
|
[8] |
BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5
|
NH
- hex, 5/16 NC x 1 inch
|
| 6. |
1415467R91
|
[7] |
BALL BEARING,35 mm ID x 72 mm OD x 17 mm
|
IH
- 1.378 inch ID (35 mm) Superseded by part number: 84002007
|
| 7. |
ZA105011
|
[1] |
ROLLER
|
IH
(No. 1) Superseded by part number: 47442495, ZA105778, ZA105797
|
| 8. |
ZA104411
|
[5] |
BELT
|
IH
- Bottom endless Superseded by part number: 700709542
|
| 9. |
2148R1
|
[6] |
WASHER - flat, 11/32 x 7/8 x 3/32 inch (8 x 22 x 2 mm)
|
|
| 10. |
ZA105071
|
[1] |
DIVIDER
|
IH
|
| 11. |
ZA105025
|
[1] |
BRACKET
|
IH
|
| . . |
16897R1
|
[2] |
CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd
|
IH
BOLT - round head, square neck, 5/16 NC x 3/4 inch Superseded by part number: 412-512
|
| . . |
12872R1
|
[2] |
BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd
|
IH
CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd Superseded by part number: 598803R1
|
| 12. |
ZA105023
|
[1] |
BLADE
|
IH
SCRAPER
|
| 13. |
ZA105045
|
[4] |
COLLAR
|
IH
- bearing
|
| 14. |
ZA105010
|
[2] |
ROLLER
|
IH
(No. 2 and 3) Superseded by part number: 228695A1, 228681A1
|
| 15. |
ZA105020
|
[1] |
BLADE
|
IH
SCRAPER
|
| . . |
598802R1
|
[4] |
CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd
|
IH
BOLT - round head, square neck, 5/16 NC x 3/4 inch Type 5 Superseded by part number: 280497
|
| 16. |
ZA105069
|
[1] |
BLOCK
|
IH
- adjusting right
|
| 17. |
ZA105014
|
[1] |
ROLLER
|
IH
(No. 4) Superseded by part number: 47442495, ZA105797, ZA105780
|
| 18. |
ZA105019
|
[1] |
HOUSING
|
IH
- bearing
|
| . . |
18684R1
|
[5] |
BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2
|
IH
- round head, square neck, 3/8 NC x 1-1/4 inch Superseded by part number: 550796R1
|
| 19. |
27503R1
|
[5] |
WASHER
|
IH
- flat, 13/32 x 13/16 x 1/16 inch (10 x 20 x 1 mm) Superseded by part number: 23402R1
|
| 20. |
96328C1
|
[1] |
BALL BEARING,40mm ID x 80mm OD x 22mm W
|
CAS
- 1.5753 inch ID (40 mm)
|
| 21. |
ZA104230
|
[1] |
SPROCKET ASSY.
|
IH
SPROCKET - 40 teeth
|
| . . |
180130
|
[4] |
BOLT,Hex, 3/8" - 16 x 2", Gr 5
|
IH
- hex, 3/8 NC x 2 inch Superseded by part number: 113-219
|
| 22. |
ZA104593
|
[1] |
HUB
|
IH
- splined
|
| 23. |
357020R1
|
[1] |
WASHER
|
IH
- flat, 17/32 x 1-3/4 x 1/4 inch (13 x 44 x 6 mm)
|
| 24. |
26316R1
|
[1] |
BOLT,Hex, 1/2" - 13 x 1", Gr 8
|
IH
- hex lock, 1/2 NC x 1 inch Type 8 Superseded by part number: 113-451
|
| 25. |
NSS
|
[1] |
NOT SOLD SEPARAT
|
CON
CHAIN ASSEMBLY (Use 171 links from roll marked 611362R91, 1 offset link 612612R91 and 1 connecting link 574532R91)
|
| . . |
611362R91
|
[1] |
CHAIN (AG)
|
IH
CHAIN - 10 foot (3.048 m) roll Superseded by part number: 611362R91X
|
| . . |
612612R91
|
[1] |
CHAIN LINK
|
IH
LINK - offset Superseded by part number: 241-1716
|
| . . |
574532R91
|
[1] |
CLIP, SPRING
|
IH
LINK - connecting Superseded by part number: 241-1316
|
| 26. |
396-21066
|
[2] |
WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk
|
CAS
- flat, 21/32 x 1-3/8 x 1/16 inch (16 x 34 x 1 mm) Superseded by part number: 87613283
|
| 27. |
541857R92
|
[1] |
SPROCKET,15T
|
IH
- idler
|
| 29. |
495-81001
|
[1] |
WASHER,5/16"
|
CAS
- flat, 3/8 x 1-1/8 x 3/32 inch (9 x 28 x 2 mm) Superseded by part number: 86625240
|
| 30. |
ZA304776
|
[1] |
SLIDE
|
IH
- chain Superseded by part number: 700709424
|
| . . |
27464R1
|
[1] |
CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 4", Gr 5
|
IH
BOLT - round head, square neck, 1/2 NC x 4 inch Type 5 Superseded by part number: 87495288
|
| 31. |
ZA104108
|
[5] |
BELT
|
IH
Superseded by part number: 700724730
|
| 32. |
ZA102977
|
[5] |
PIN
|
IH
|
| . . |
208790C1
|
[1] |
PACKAGE
|
IH
KIT - belt repair (Box of lacing hooks)
|
| . . |
1254050C1
|
[1] |
TOOL
|
IH
LACER - belt (6 inch) Superseded by part number: 828459
|
