神钢零件查询(4JB1) - ISUZU DIESEL ENGINE (1/06-12/07) (01-052) - STARTER (HITACHI) Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
270 次

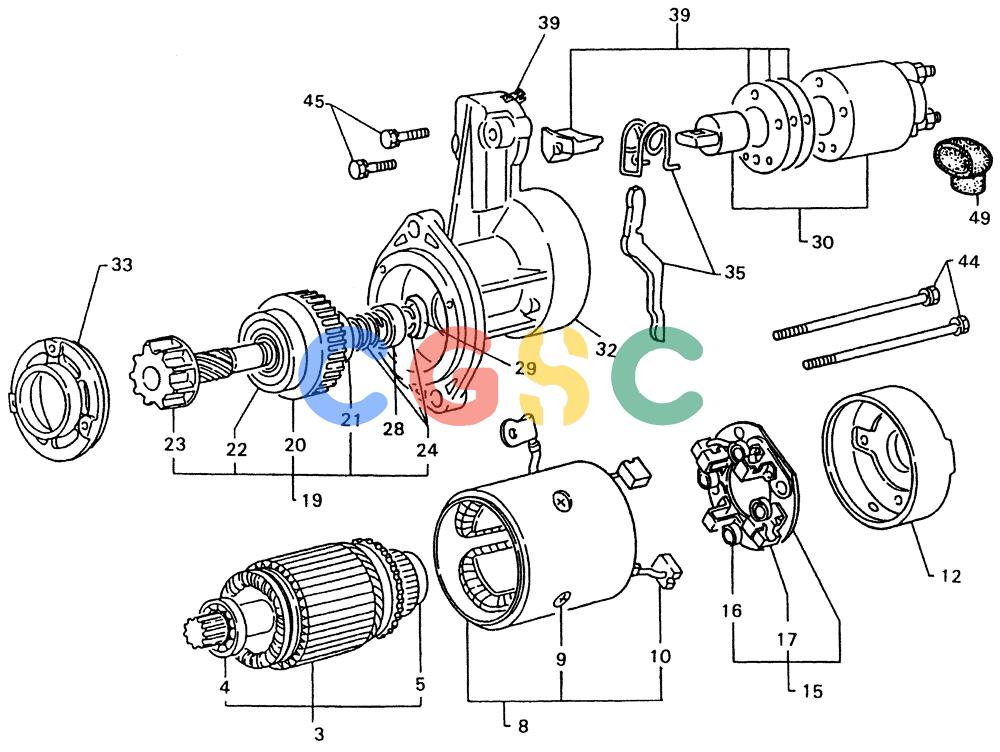

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | VI8944104090 | [1] | STARTER ASM, 12V-2.2KW | |
| . . | VI8970848770 | [1] | STARTER ASM, 12V-2.2KW | |
| 3. | VI8944355610 | [1] | ARMATURE ASM. | |
| 3. | VI8944383650 | [1] | ARMATURE ASM. | |
| 4. | VI8942284360 | [1] | BEARING | KOBBALL (1) |
| 5. | VI8942284370 | [1] | BEARING,BALL (2) | |
| 8. | VI8941368990 | [1] | COIL ASM,FIELD | |
| 8. | VI8941377130 | [1] | COIL ASM,F1ELD | |
| 9. | VI8942284390 | [4] | SCREW,POL CORE | |
| 10. | VI8941369000 | [2] | BRUSH(+) | |
| 10. | VI8941377140 | [2] | BRUSH(+) | |
| 12. | VI8944355620 | [1] | COVER ASM.REAR | |
| 12. | VI8941377170 | [1] | COVER ASM,REAR | |
| 15. | VI8941369010 | [1] | HOLDER ASM,BRUSH(INCL 16) | |
| 15. | VI8944467520 | [1] | HOLDER ASM,BRUSH | |
| 16. | VI8942420640 | [4] | SPRING'.BRUSH | |
| 17. | VI8941369000 | [2] | BRUSH(-) | |
| 17. | VI8941377140 | [2] | BRUSH(-) | |
| 19. | VI8944355630 | [1] | CLUTCH ASM,PINI0N | |
| 19. | VI8941389690 | [1] | CLUTCH ASM,PINI0N | |
| 20. | VI8944509180 | [1] | CLUTCH ASM. | |
| 20. | VI8943189700 | [1] | CLUTCH ASM. | |
| 21. | VI8942284480 | [1] | BEARING,BALL (3) | |
| 21. | VI8970248420 | [1] | BEARING,BALL (3) | |
| 22. | VI8942284490 | [1] | BEARING,BALL (4) | |
| 22. | VI8943118690 | [1] | BEARING,BALL (4) | |
| 23. | VI8944509190 | [1] | SHAFTIPISTON | |
| 23. | VI8944714460 | [1] | SHAFT,PISTON | |
| 24. | VI8942284500 | [1] | STOPPER SET | |
| 28. | VI8944355660 | [1] | BEARING,BALL | |
| 29. | VI8944355670 | [1] | HOLDER,BEARING | |
| 30. | VI8944355680 | [1] | SWITCH ASM,MAGNETIC | |
| 30. | VI8943189680 | [1] | SWITCH ASM,MAGNETIC | |
| 30. | VI8970847070 | [1] | SWITCH ASM,MAGNETIC | |
| 32. | VI8944355690 | [1] | CASE,GEAR | |
| 32. | VI8944714440 | [1] | CASE,GEAR | |
| 33. | VI8944355700 | [1] | RETAINER,BEARING | |
| 35. | VI8944355710 | [1] | LEVER SET,SHIFT | |
| 35. | VI5811270270 | [1] | LEVER SET,SHIFT | |
| 39. | VI8944355720 | [1] | COVER KIT,DUST | |
| 39. | VI8941303940 | [1] | COVER KIT,DUST | |
| 44. | VI8942420710 | [2] | BOLT,THROUGH | |
| 45. | VI5811292940 | [2] | BOLT, (D=6) | |
| 45. | VI9010456320 | [2] | B0LT,M6X32 | |
| 45. | VI5811292630 | [3] | BOLT | |
| 49. | VI5811290690 | [1] | COVER,TERMINAL | |
