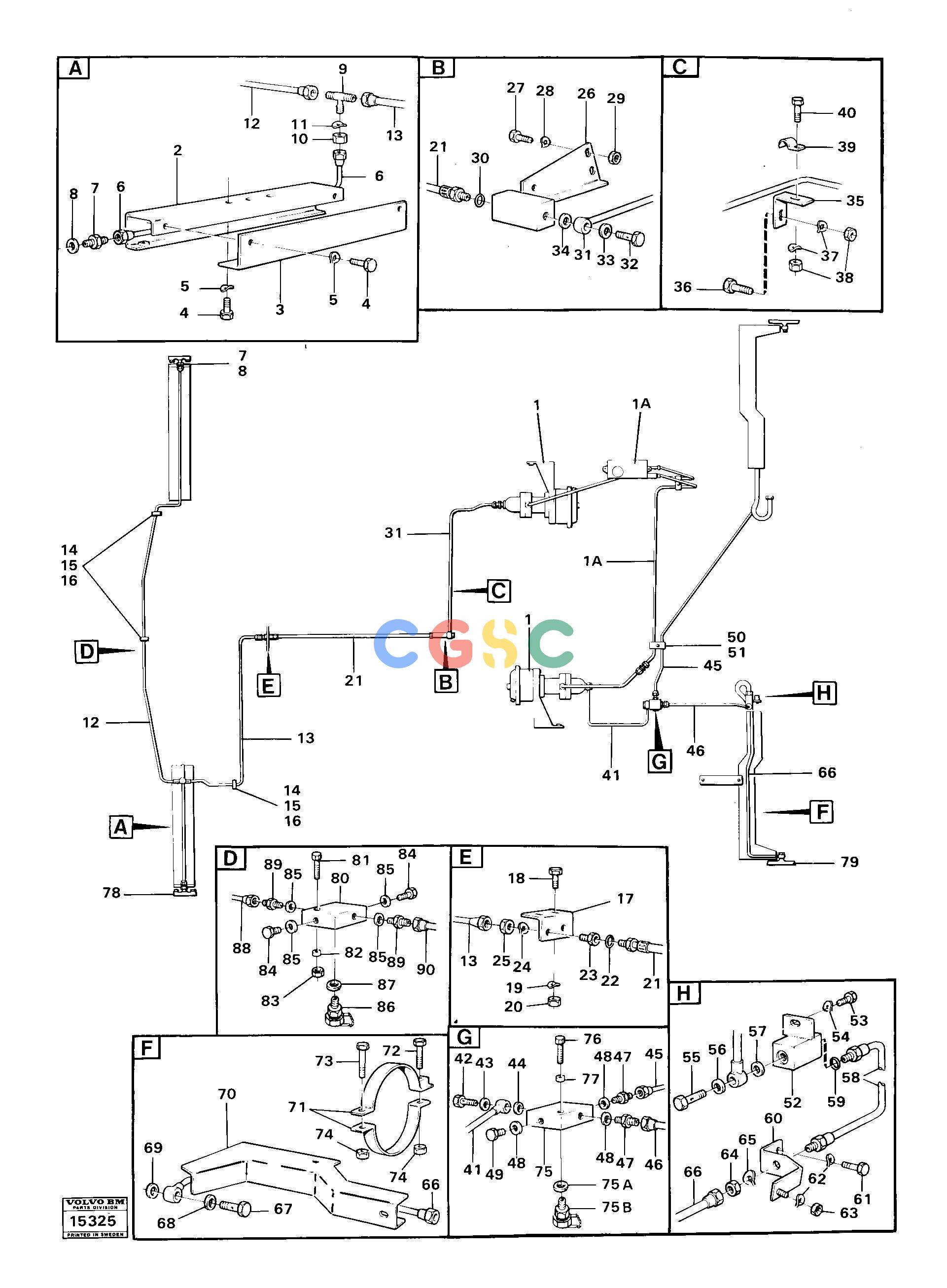

沃尔沃零件查询4300 Hydraulic system prod nr 33100, 331054300 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
621 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
|
Brake unit
|
|
| 84. |
VOE961891
|
[0002] |
Plug
|
|
| 85. |
VOE957178
|
[0004] |
Gasket
|
|
| 86. |
VOE4928801
|
[0001] |
Testing nipple
|
|
| 87. |
VOE957173
|
[0001] |
Gasket
|
|
| 88. |
VOE4928790
|
[0001] |
Tube
|
|
| 89. |
VOE7065653
|
[0002] |
Nipple
|
|
| 90. |
VOE4928788
|
[0001] |
Tube
|
|
| 1A. |
|
[0001] |
Oil tank
|
|
| 2. |
VOE4932060
|
[0002] |
Pipe protection
|
|
| 3. |
VOE4927033
|
[0002] |
Cover
|
|
| 4. |
VOE13955295
|
[0014] |
Screw
|
|
| 5. |
VOE13941907
|
[0014] |
Washer
|
|
| 6. |
VOE4926954
|
[0001] |
Tube
|
|
| 7. |
VOE7065653
|
[0002] |
Nipple
|
|
| 8. |
VOE13947621
|
[0002] |
Plane gasket
|
|
| 9. |
VOE7180083
|
[0001] |
T-nipple
|
|
| 10. |
VOE940154
|
[0001] |
Nut
|
|
| 11. |
VOE940280
|
[0001] |
Spring washer
|
|
| 12. |
VOE4929624
|
[0001] |
Tube
|
|
| 13. |
VOE4926952
|
[0001] |
Tube
|
|
| 14. |
VOE952624
|
[0003] |
Clamp
|
|
| 15. |
VOE955269
|
[0003] |
Hexagon screw
|
|
| 16. |
VOE13941906
|
[0003] |
Washer
|
|
| 17. |
VOE4850018
|
[0001] |
Anchorage
|
|
| 18. |
VOE13955295
|
[0002] |
Screw
|
|
| 19. |
VOE13941907
|
[0002] |
Washer
|
|
| 20. |
VOE955782
|
[0002] |
Hexagon nut
|
|
| 21. |
VOE928560
|
[0001] |
Hose assembly
|
|
| 22. |
VOE958226
|
[0001] |
O-ring
|
|
| 23. |
VOE743201
|
[0001] |
Nipple
|
|
| 24. |
VOE940280
|
[0001] |
Spring washer
|
|
| 25. |
VOE940154
|
[0001] |
Nut
|
|
| 26. |
VOE4850016
|
[0001] |
Anchorage
|
|
| 27. |
VOE13970949
|
[0002] |
Hexagon screw
|
|
| 28. |
VOE941908
|
[0002] |
Spring washer
|
|
| 29. |
VOE971071
|
[0002] |
Hexagon nut
|
|
| 30. |
VOE958226
|
[0001] |
O-ring
|
|
| 31. |
VOE4928668
|
[0001] |
Tube
|
|
| 32. |
VOE954393
|
[0001] |
Hollow screw
|
|
| 33. |
VOE13947622
|
[0001] |
Plane gasket
|
|
| 34. |
VOE13947621
|
[0001] |
Plane gasket
|
|
| 35. |
|
[0001] |
Bracket
|
|
| 36. |
VOE940142
|
[0001] |
Hexagon screw
|
|
| 37. |
VOE13941907
|
[0002] |
Washer
|
|
| 38. |
VOE955782
|
[0002] |
Hexagon nut
|
|
| 39. |
VOE7018351
|
[0001] |
Clamp
|
|
| 40. |
VOE13955295
|
[0001] |
Screw
|
|
| 41. |
VOE4926914
|
[0001] |
Tube
|
|
| 42. |
VOE954393
|
[0001] |
Hollow screw
|
|
| 43. |
VOE13947622
|
[0001] |
Plane gasket
|
|
| 44. |
VOE13947621
|
[0001] |
Plane gasket
|
|
| 45. |
VOE4739507
|
[1] |
Tube
|
|
| 46. |
VOE4739506
|
[1] |
Tube
|
|
| 47. |
VOE7065653
|
[2] |
Nipple
|
|
| 48. |
VOE13947621
|
[3] |
Plane gasket
|
|
| 49. |
VOE961891
|
[1] |
Plug
|
|
| 50. |
VOE7402404
|
[1] |
Clamp
|
|
| 51. |
VOE13955295
|
[1] |
Screw
|
|
| 52. |
VOE4762494
|
[2] |
Nipple
|
|
| 53. |
VOE13970947
|
[2] |
Hexagon screw
|
|
| 54. |
VOE941908
|
[2] |
Spring washer
|
|
| 55. |
VOE954393
|
[2] |
Hollow screw
|
|
| 56. |
VOE13947622
|
[2] |
Plane gasket
|
|
| 57. |
VOE13947621
|
[2] |
Plane gasket
|
|
| 58. |
VOE4785449
|
[2] |
Brake hose
|
|
| 59. |
VOE957175
|
[2] |
Gasket
|
|
| 60. |
VOE4928253
|
[0001] |
Anchorage
|
H
|
| |
VOE4928252
|
[0001] |
Anchorage
|
V
|
| 61. |
VOE13955295
|
[0004] |
Screw
|
|
| 62. |
VOE13941907
|
[0006] |
Washer
|
|
| 63. |
VOE955782
|
[0002] |
Hexagon nut
|
|
| 64. |
VOE940154
|
[0002] |
Nut
|
|
| 65. |
VOE940280
|
[0002] |
Spring washer
|
|
| 66. |
VOE4739489
|
[0002] |
Brake pipe
|
|
| 67. |
VOE954393
|
[0002] |
Hollow screw
|
|
| 68. |
VOE13947622
|
[0002] |
Plane gasket
|
|
| 69. |
VOE13947621
|
[0002] |
Plane gasket
|
|
| 70. |
VOE4739470
|
[0002] |
Brake shield
|
|
| 71. |
VOE4739490
|
[0004] |
Clamp
|
|
| 72. |
VOE13955325
|
[0002] |
Screw
|
|
| 73. |
VOE13970956
|
[0002] |
Hexagon screw
|
|
| 74. |
VOE971071
|
[0004] |
Hexagon nut
|
|
| 75. |
VOE4850277
|
[0001] |
Nipple
|
SER NO 1173-
|
| |
VOE4928792
|
[0001] |
Nipple
|
|
| 75A. |
VOE4928801
|
[0001] |
Testing nipple
|
|
| 75B. |
VOE957173
|
[0001] |
Gasket
|
|
| 76. |
VOE997425
|
[0001] |
Hexagon screw
|
SER NO 1173-
|
| 77. |
VOE13941907
|
[0001] |
Washer
|
SER NO 1173-
|
| 78. |
VOE4717031
|
[0002] |
Brake
|
FRAM/ FRONT
|
| |
|
|
None
|
|
| 79. |
VOE4717393
|
[0002] |
Brake
|
BAK/ REAR
|
| |
|
|
None
|
|
| 80. |
VOE4928792
|
[0001] |
Nipple
|
|
| 81. |
VOE997425
|
[0001] |
Hexagon screw
|
|
| 82. |
VOE13941907
|
[0001] |
Washer
|
|
| 83. |
VOE971071
|
[0001] |
Hexagon nut
|
|
