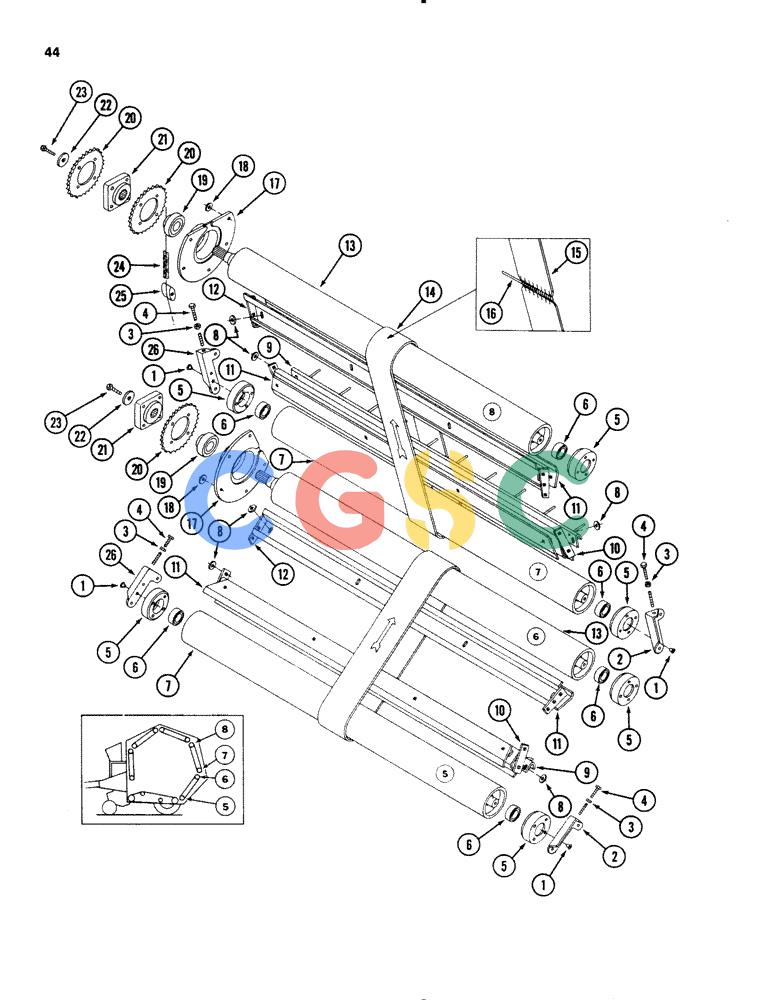

| 1. |
1017954R1
|
[8] |
PLUG,Cap, .485" OD
|
IH
- cap Superseded by part number: 87644289
|
| 2. |
ZA105038
|
[2] |
BLOCK
|
IH
- adjusting left
|
| . . |
180081
|
[4] |
BOLT,Hex, 5/16"-18 x 1 1/4", G5
|
IH
hex, 5/16"-18 NC x 1-1/4", grade 5 Superseded by part number: 179820
|
| 3. |
120378
|
[4] |
NUT,Hex, 1/2" - 13, Gr 5
|
IH
NUT, 1/2"-13, G5 Superseded by part number: 280431
|
| 4. |
180192
|
[4] |
BOLT (SPREADER),Hex, 1/2" - 13 x 3 1/2", Gr 5
|
IH
BOLT - hex, 1/2 NC x 3-1/2 inch Superseded by part number: 179895
|
| 5. |
ZA105045
|
[6] |
COLLAR
|
IH
- bearing
|
| . . |
9635884
|
[24] |
BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5
|
NH
- hex, 5/16 NC x 1 inch
|
| 6. |
1415467R91
|
[6] |
BALL BEARING,35 mm ID x 72 mm OD x 17 mm
|
IH
- 1.378 inch ID (35 mm) Superseded by part number: 84002007
|
| 7. |
ZA105010
|
[2] |
ROLLER
|
IH
(No. 5 and 7) Superseded by part number: 228695A1, 228681A1
|
| 8. |
21448R1
|
[1] |
WASHER
|
CAS
- flat, 11/32 x 7/8 x 3/32 inch (8 x 22 x 2 mm) Superseded by part number: 495-81253
|
| 9. |
ZA105030
|
[2] |
DIVIDER
|
IH
- (For 4-3/4 inch wide belts) (Prior to P.I.N. 001179)
|
| 9. |
ZA105297
|
[2] |
DIVIDER
|
IH
- (For 11 inch wide belts) (P.I.N. 001180 and after)
|
| 10. |
ZA105025
|
[2] |
BRACKET
|
IH
|
| . . |
16897R1
|
[4] |
CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd
|
IH
BOLT - round head, square neck, 5/16 NC x 3/4 inch Superseded by part number: 412-512
|
| . . |
12872R1
|
[4] |
BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd
|
IH
CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd Superseded by part number: 598803R1
|
| 11. |
ZA105023
|
[4] |
BLADE
|
IH
SCRAPER
|
| 12. |
ZA105026
|
[2] |
BRACKET
|
IH
|
| 13. |
ZA105012
|
[2] |
ROLLER
|
IH
(No. 6 and 8) Superseded by part number: 228685A1, 228695A1
|
| 14. |
ZA104412
|
[22] |
BELT,4.75" W 73.22" L
|
IH
4.75" W x 73.22" L, Top endless (Prior to P.I.N. 001179)
|
| 14. |
ZA105005
|
[10] |
BELT
|
IH
- top endless (11 inch wide) (P.I.N. 001180 and after) Superseded by part number: 700709544
|
| 15. |
ZA104107
|
[22] |
BELT
|
IH
- Top (4-3/4 inch wide) (Prior to P.I.N. 001179)
|
| 15. |
ZA105003
|
[10] |
BELT
|
IH
- Top (11 inch wide) (P.I.N. 001180 and after) Superseded by part number: 700724731
|
| 16. |
ZA102971
|
[22] |
PIN
|
IH
- (For 4-3/4 inch belt) (Prior to P.I.N. 001179)
|
| 16. |
ZA102977
|
[10] |
PIN
|
IH
- (For 11 inch belt) (P.I.N. 001180 and after)
|
| 17. |
ZA104841
|
[2] |
HOUSING
|
IH
- bearing
|
| . . |
18684R1
|
[10] |
BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2
|
IH
- round head, square neck, 3/8 NC x 1-1/4 inch Superseded by part number: 550796R1
|
| 18. |
120394
|
[10] |
WASHER,3/8", SAE
|
IH
WASHER - flat, 13/32 x 13/16 x 1/16 inch (10 x 20 x 1 mm) Superseded by part number: 87016
|
| 19. |
96328C1
|
[2] |
BALL BEARING,40mm ID x 80mm OD x 22mm W
|
CAS
- 1.5753 inch ID (40 mm)
|
| 20. |
ZA104227
|
[1] |
SPROCKET ASSY.
|
IH
SPROCKET - 30 teeth
|
| . . |
180130
|
[4] |
BOLT,Hex, 3/8" - 16 x 2", Gr 5
|
IH
- hex, 3/8 NC x 2 inch Superseded by part number: 113-219
|
| . . |
113-257
|
[4] |
BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5
|
CAS
- hex, 3/8 NC x 2-1/2 inch Superseded by part number: 87936
|
| 21. |
ZA104593
|
[2] |
HUB
|
IH
- splined
|
| 22. |
357020R1
|
[2] |
WASHER
|
IH
- flat, 17/32 x 1-3/4 x 1/4 inch (13 x 44 x 6 mm)
|
| 23. |
26316R1
|
[2] |
BOLT,Hex, 1/2" - 13 x 1", Gr 8
|
IH
- hex lock, 1/2 NC x 1 inch Type 8 Superseded by part number: 113-451
|
| 24. |
NSS
|
[1] |
NOT SOLD SEPARAT
|
CON
CHAIN (Use 121 links from roll marked 611362R91, 1 offset link 612612R91 and 1 connecting link 574532R91)
|
| . . |
611362R91
|
[1] |
CHAIN (AG)
|
IH
CHAIN - 10 foot (3.048 m) roll Superseded by part number: 611362R91X
|
| . . |
612612R91
|
[1] |
CHAIN LINK
|
IH
LINK - offset Superseded by part number: 241-1716
|
| . . |
574532R91
|
[1] |
CLIP, SPRING
|
IH
LINK - connecting Superseded by part number: 241-1316
|
| 25. |
ZA304776
|
[1] |
SLIDE
|
IH
- chain Superseded by part number: 700709424
|
| . . |
27464R1
|
[1] |
CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 4", Gr 5
|
IH
BOLT - round head, square neck, 1/2 NC x 4 inch Type 5 Superseded by part number: 87495288
|
| 26. |
ZA105037
|
[2] |
BLOCK
|
IH
- adjusting right
|
| . . |
208790C1
|
[1] |
PACKAGE
|
IH
KIT - belt repair (Box of lacing hooks)
|
| . . |
1254050C1
|
[1] |
TOOL
|
IH
LACER - belt (6 inch) Superseded by part number: 828459
|
