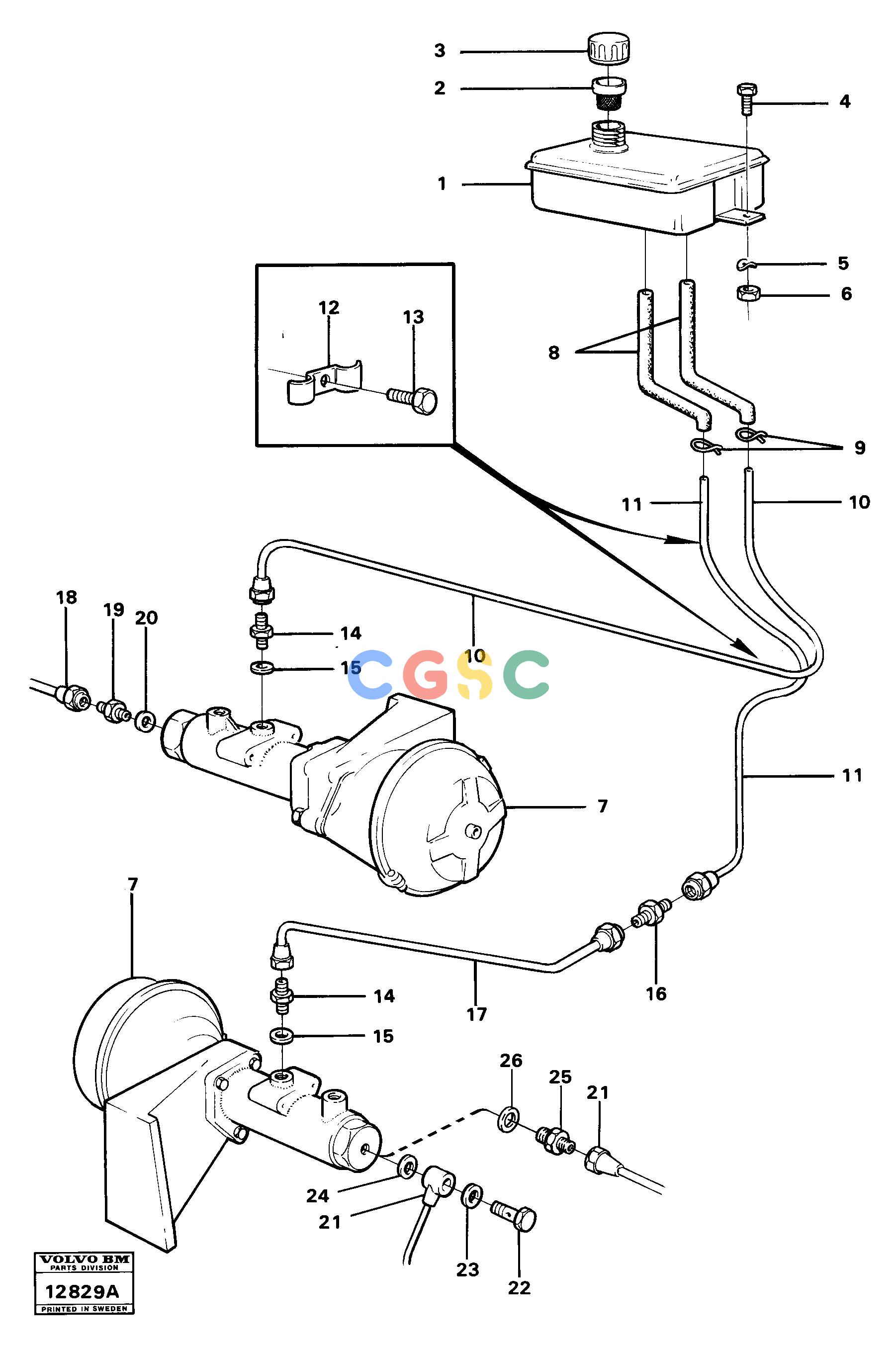

沃尔沃零件查询4300 Oil tank brake unit4300 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
305 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 5. |
VOE13941906
|
[0002] |
Washer
|
|
| 6. |
VOE13955781
|
[0002] |
Nut
|
|
| 7. |
|
[0002] |
Brake unit
|
|
| 8. |
VOE944574
|
[0270] |
Hose
|
|
| 9. |
VOE944212
|
[0004] |
Hose clamp
|
|
| 1. |
VOE1500611
|
[0001] |
Oil reservoir
|
|
| 10. |
VOE4926918
|
[0001] |
Tube
|
|
| 11. |
VOE4926916
|
[0001] |
Tube
|
PROD NO 33100, 33105
|
| |
VOE4929992
|
[0001] |
Tube
|
PROD NO 33106, 33107
|
| 12. |
VOE7402404
|
[0002] |
Clamp
|
TILLV.NR-3103
|
| |
VOE4932332
|
[0003] |
Clamp
|
SER NO 3104-
|
| 13. |
VOE13955295
|
[0002] |
Screw
|
|
| 14. |
VOE7192008
|
[0002] |
Nipple
|
|
| 15. |
VOE13947622
|
[0002] |
Plane gasket
|
|
| 16. |
VOE954330
|
[0001] |
Nipple
|
|
| 17. |
VOE4926915
|
[0001] |
Tube
|
PROD NO 33100, 33105
|
| |
VOE4929990
|
[1] |
Tube
|
PROD NO 33106, 33107
|
| 18. |
|
[1] |
Pipe
|
|
| 19. |
VOE7065653
|
[1] |
Nipple
|
|
| 2. |
VOE7343354
|
[0001] |
Strainer
|
|
| 20. |
VOE13947621
|
[1] |
Plane gasket
|
|
| 21. |
|
[1] |
Pipe
|
|
| 22. |
VOE954393
|
[1] |
Hollow screw
|
PROD NO 33100, 33105
|
| 23. |
VOE13947621
|
[1] |
Plane gasket
|
|
| |
|
|
None
|
PROD NO 33100, 33105
|
| 24. |
VOE13947622
|
[1] |
Plane gasket
|
|
| |
|
|
None
|
PROD NO 33100, 33105
|
| 25. |
VOE13949522
|
[1] |
Nipple
|
PROD NO 33106, 33107
|
| 26. |
VOE13947621
|
[1] |
Plane gasket
|
|
| |
|
|
None
|
PROD NO 33106, 33107
|
| 3. |
VOE11996160
|
[0001] |
Cover
|
|
| 4. |
VOE13955271
|
[0002] |
Screw
|
|
