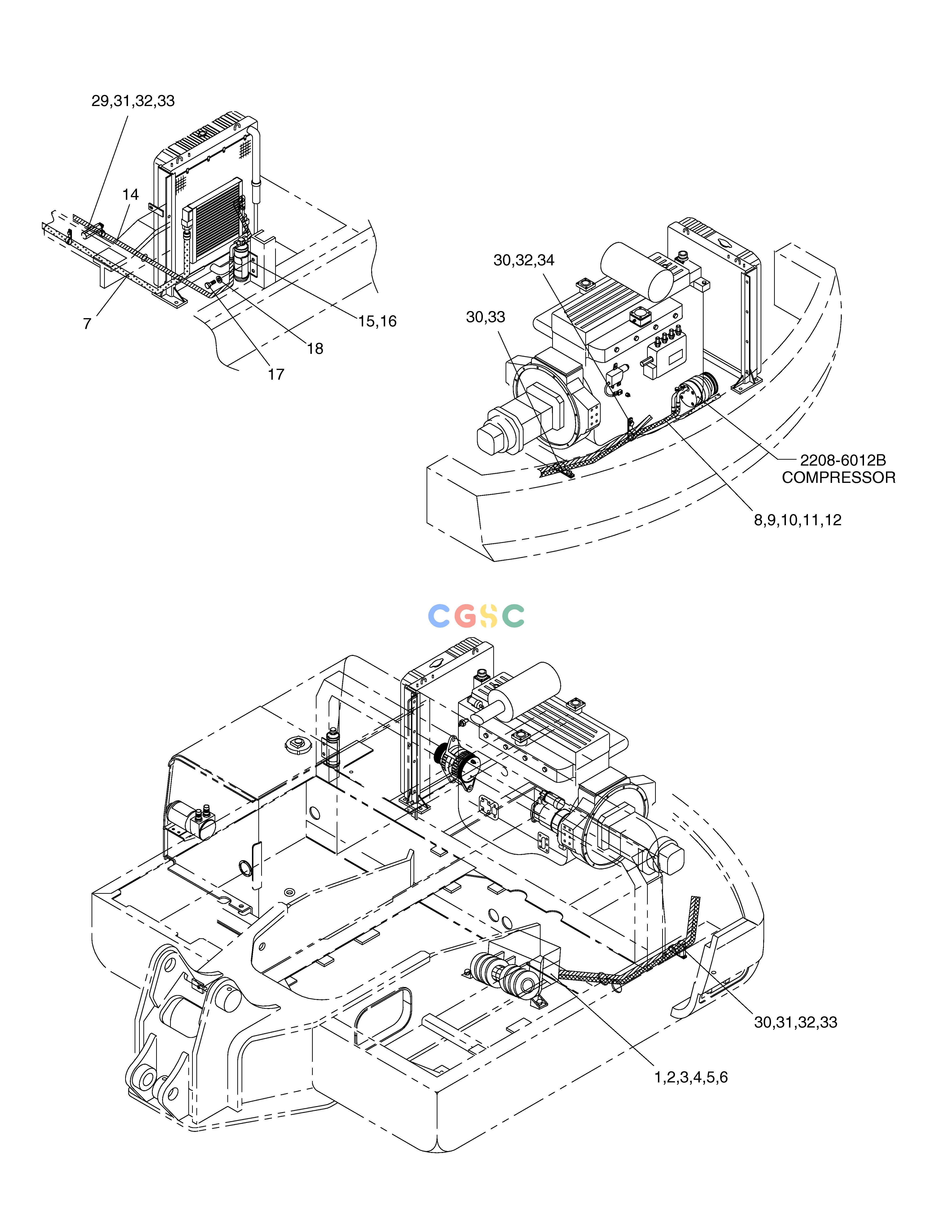

斗山零件查询AIR CONDITIONER(1)-RELATED PARTS B55W-1 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
964 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
920-00101
|
[-] |
COOLER & HEATER ASSY
|
|
| 1. |
920-00047
|
[1] |
UNIT;AIRCON
|
|
| 10. |
S5110601
|
[1] |
WASHER;SPRING M10
|
|
| 11. |
S5020603
|
[1] |
WASHER;PLAIN M10
|
|
| 12. |
2180-1219
|
[2] |
WASHER;SEAL
|
|
| 14. |
2185-1369D17
|
[1] |
HOSE;LIQUID(2) 3200L
|
|
| 15. |
2204-6032
|
[1] |
RECEIVER DRIER
|
|
| 16. |
2514-6001
|
[1] |
HOLDER;RECEIVER DRIER
|
|
| 17. |
S0504553
|
[2] |
BOLT
|
|
| 18. |
S5102303
|
[2] |
. WASHER
|
|
| 2. |
2191-1374D12
|
[2] |
PLATE
|
|
| 29. |
124-00208D2
|
[1] |
CLAMP
|
|
| 3. |
2161-2272
|
[2] |
PLATE;RUBBER
|
|
| 30. |
124-00209D1
|
[3] |
CLIP
|
|
| 31. |
2120-2187
|
[2] |
BOLT
|
|
| 32. |
S5102503
|
[3] |
. WASHER
|
|
| 33. |
2121-1305
|
[3] |
NUT
|
|
| 34. |
S0508653
|
[1] |
BOLT
|
|
| 4. |
S0509053
|
[2] |
. BOLT
|
|
| 5. |
S5102503
|
[2] |
. WASHER
|
|
| 6. |
S5010513
|
[2] |
WASHER
|
|
| 7. |
185-00363A
|
[1] |
HOSE;DISCHARGE
|
|
| 8. |
185-00362
|
[1] |
HOSE;SUCTION
|
|
| 9. |
S2212361
|
[1] |
BOLT;SOCKET M10X1.5X35
|
|
