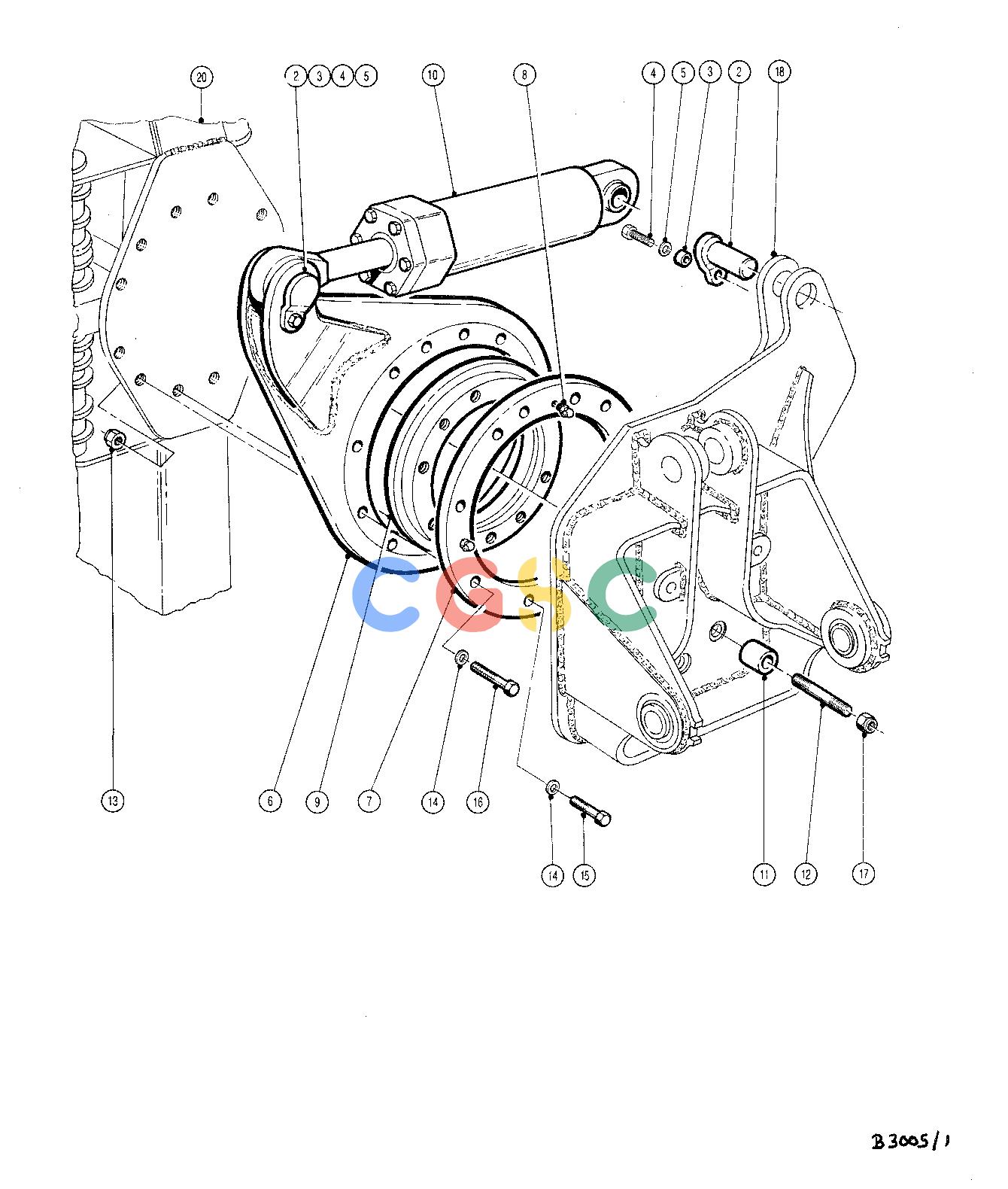

约翰迪尔零件查询20``STD - ATTACHMENTS WRIST ASSEMBLY 20`` HEAD ( 62001 - 63036) 4542-012/10 [4542-012/10]EPC John Deere online
广数供应链运营团队, 14 02月, 2025，浏览：
897 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| A. |
701031800
|
[1] |
WRIST GROUP
|
|
| 2. |
700406200
|
[2] |
Pin
|
|
| 3. |
700041400
|
[2] |
Spacer
|
|
| 4. |
810084200
|
[2] |
BOLT 3/4-10UNCX1-1/2
|
|
| 5. |
810971800
|
[2] |
WASHER 3/4
|
|
| 6. |
700433300
|
[1] |
Plate
|
|
| 7. |
700429100
|
[1] |
Plate
|
|
| 8. |
810044000
|
[4] |
GREASE FIT 1/8-27PTF
|
|
| 9. |
700523900
|
[1] |
Plate
|
|
| 10. |
-------
|
[1] |
CYLINDER - WRIST, 5``DIA
|
|
| 11. |
700421500
|
[12] |
Spacer
|
|
| 12. |
700475000
|
[12] |
Stud
|
|
| 13. |
811219200
|
[8] |
NUT 1-14UNS
|
|
| 14. |
810020200
|
[12] |
WASHER 1
|
|
| 15. |
811446300
|
[4] |
BOLT 1.00-14X3.00
|
|
| 16. |
811446200
|
[8] |
BOLT 1.00-14X4.00
|
|
| 17. |
810046900
|
[12] |
LOCKNUT 1-1/8-12UNF
|
|
| 18. |
-------
|
[REF.] |
BOOM ADAPTER
|
|
| 20. |
-------
|
[REF.] |
Felling Head
|
|
