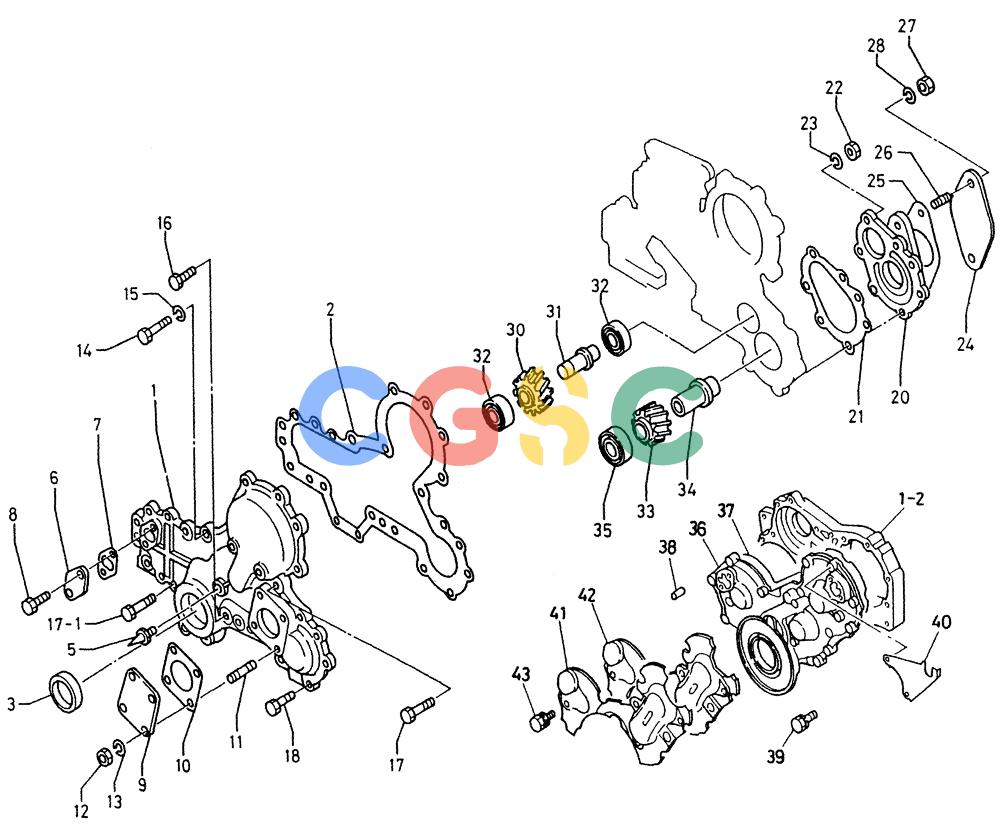

神钢零件查询(4JB1) - ISUZU DIESEL ENGINE - K903C EXCAVATOR (1/06-12/07) (01-003) - TIMING GEAR CASE & OTHER PARTS Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
1010 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | VI8941421541 | [1] | GEAR CASE TIMING | |
| 1-1. | VI1941701092 | [1] | GEAR CASE TIMING | |
| 1-2. | VI8944287990 | [1] | GEAR CASE TIMING | |
| 2. | VI8941293100 | [1] | PACKING GEAR CASE | |
| 2-1. | VI8941701100 | [1] | PACKING GEAR CASE | |
| 2-2. | VI8941104871 | [1] | PACKING GEAR CASE | |
| 3. | VI5096250790 | [1] | SEAL | KOBSEAL OIL, CRANK SHAFT Superseded by part number: VI8970491450 |
| 5. | VI5113270180 | [1] | POINTER GEAR CASE | |
| 6. | VI5113210090 | [2] | COVER | KOBCOVER TIMING CHECK |
| 7. | VI5113220790 | [2] | PACKING CHECK COVER | |
| 7-1. | VI9113228020 | [2] | GASKET | KOBPACKING CHECK COVER Superseded by part number: VI8971186981 |
| 8. | VI9019006140 | [4] | BOLT | KOBSEMS, COVER Superseded by part number: VI0500406140 |
| 9. | VI5113210350 | [1] | COVER PUMP | |
| 10. | VI5113220351 | [1] | PACKING COVER | |
| 11. | VI9041108220 | [4] | STUD | KOBSTUD PUMP |
| 11-1. | VI9041108220 | [3] | STUD | KOBSTUD PUMP |
| 12. | VI9091104080 | [4] | HANGER | KOBNUT COVER FIX. Superseded by part number: VI0911105080 |
| 13. | VI9091505080 | [4] | WASHER | KOBWASHER SPR. Superseded by part number: VI0915105080 |
| 14. | VI9010562650 | [1] | BOLT CASE | |
| 14-1. | VI9910562700 | [1] | BOLT CASE | |
| 15. | VI9091505120 | [1] | LOCK WASHER | KOBWASHER SPR. |
| 16. | VI5090001580 | [4] | BOLT SEMS, CASE L=60 | |
| 16-1. | VI5090300200 | [4] | BOLT | KOBSEMS, CASE Superseded by part number: VI0280508700 |
| 16-2. | VI9019108200 | [6] | BOLT SEMS,CASE L=70 | |
| 17. | VI9019108300 | [2] | COVER | KOBBOLT SEMS, CASE TO PLATE Superseded by part number: VI0505408300 |
| 17-1. | VI9019108450 | [5] | BOLT SEMS, CASE TO PLATE | |
| 17-2. | VI9019108450 | [2] | BOLT SEMS, CASE TO PLATE | |
| 18. | VI5090001580 | [5] | BOLT SEMS CASE TO SPACER | |
| 18-1. | VI5090300200 | [3] | BOLT | KOBSEMS CASE TO SPACER Superseded by part number: VI0280508700 |
| 20. | VI8941293110 | [1] | SPACER PTO, PUMP | |
| 20-1. | VI8941701110 | [1] | SPACER PTO, PUMP | |
| 21. | VI8941293120 | [1] | PACKING SPACER | |
| 21-1. | VI8941701120 | [1] | PACKING SPACER | |
| 22. | VI9091104080 | [2] | HANGER | KOBNUT SPACER Superseded by part number: VI0911105080 |
| 22-1. | VI9091104080 | [1] | HANGER | KOBNUT SPACER Superseded by part number: VI0911105080 |
| 23. | VI9091505080 | [2] | WASHER | KOBWASHER SPR. Superseded by part number: VI0915105080 |
| 23-1. | VI9091505080 | [1] | WASHER | KOBWASHER SPR. Superseded by part number: VI0915105080 |
| 24. | VI5113211000 | [1] | COVER PTO PUMP | |
| 25. | VI5113220430 | [1] | PACKING COVER | |
| 26. | VI9944112400 | [2] | STUD PUMP | |
| 26-1. | VI9944110250 | [2] | STUD PUMP | |
| 27. | VI9991104120 | [2] | NUT | KOBNUT COVER Superseded by part number: VI9991105120 |
| 27-1. | VI9091104100 | [2] | NUT | KOBCOVER Superseded by part number: VI9091105100 |
| 28. | VI9091505120 | [2] | LOCK WASHER | KOBWASHER SPR. |
| 28-1. | VI9091505100 | [2] | WASHER | KOBWASHER SPR. Superseded by part number: VI1099853450 |
| 30. | VI8941293130 | [1] | GEAR IDLE, C | |
| 30-1. | VI5125250130 | [1] | GEAR IDLE, C | |
| 31. | VI8941362880 | [1] | SHAFT IDLE GEAR, C | |
| 31-1. | VI8941701130 | [1] | SHAFT IDLE GEAR, C | |
| 32. | VI5098100130 | [2] | BEARING ROLLER, IDLE | |
| 33. | VI8941293150 | [1] | GEAR PTO PUMP DRIVE | |
| 33-1. | VI8944017980 | [1] | GEAR PTO PUMP DRIVE | |
| 34. | VI8941293160 | [1] | SHAFT PTO GEAR | |
| 34-1. | VI8941701140 | [1] | SHAFT PTO GEAR | |
| 35. | VI9000906280 | [1] | BEARING BALL PTO | |
| 35-1. | VI9000906570 | [1] | CAMSHAFT BEARING | KOBBEARING BALL PTO |
| 36. | VI8941553601 | [1] | COVER | KOBTIMING CASE Superseded by part number: VI8972312141 |
| 37. | VI8941401171 | [1] | GASKET | KOBO-RING CASE TO COVER Superseded by part number: VI8972386310 |
| 38. | VI9081510200 | [2] | PIN | KOBPIN STRAIGHT |
| 39. | VI9019108320 | [8] | BOLT SEMS, COVER | |
| 39-1. | VI5090001580 | [1] | BOLT SEMS, COVER | |
| 39-2. | VI9958212550 | [1] | BOLT | KOBBOLT COVER Superseded by part number: VI0583112550 |
| 39-3. | VI5090300210 | [6] | BOLT SEMS COVER | |
| 40. | VI8944288050 | [1] | BRACKET, CONT. | |
| 41. | VI8941557211 | [1] | COVER ASSY | KOBCOVER ASM. GEAR CASE |
| 42. | VI8941557221 | [1] | SPACER RUBBER | |
| 43. | VI9019706180 | [4] | BOLT COVER | |
