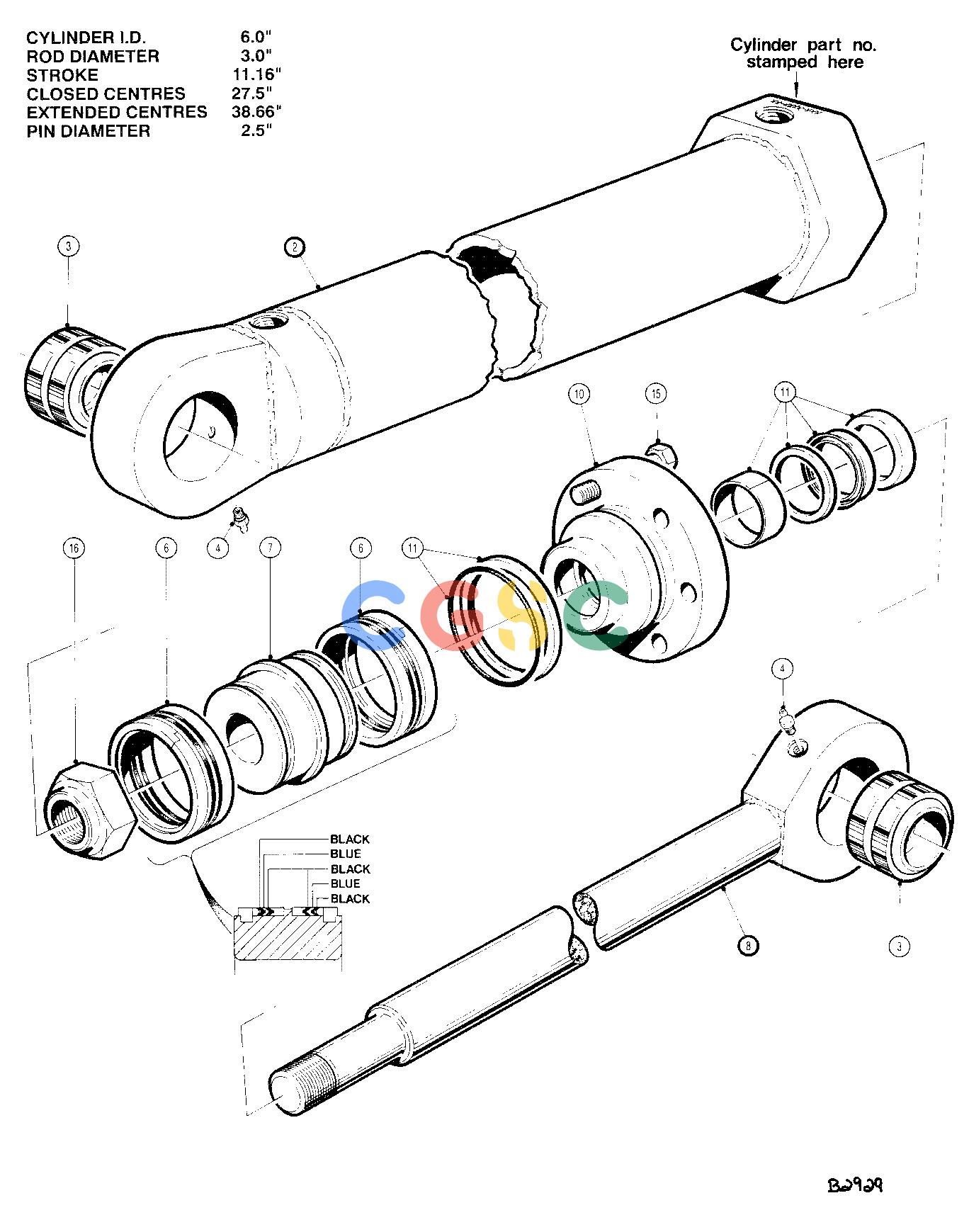

约翰迪尔零件查询22``STD - ATTACHMENTS CYLINDER WRIST 22`` HEAD ( 65001 - 65051) 2879-013/10 [2879-013/10]EPC John Deere online
广数供应链运营团队, 14 02月, 2025，浏览：
766 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
700409800
|
[1] |
Cylinder
|
|
| 2. |
700550600
|
[1] |
Housing
|
|
| 3. |
810106800
|
[2] |
BALL BUSHING
|
|
| 4. |
810000100
|
[2] |
GREASE FITTING.N610
|
|
| 6. |
811445700
|
[2] |
SEAL PACKAGE
|
|
| 7. |
700427200
|
[1] |
Piston
|
|
| 8. |
700427000
|
[1] |
ROD - INCL. ITEMS 3,4
|
|
| 10. |
700550700
|
[1] |
GLAND
|
|
| 11. |
700607000
|
[1] |
Seal Kit
|
|
| 15. |
810584100
|
[6] |
BOLT .8750-14X3.50
|
|
| 16. |
700248700
|
[1] |
LOCKNUT
|
|
| |
700402900
|
[1] |
SEAL KIT - K1
|
|
