沃尔沃零件查询4300 Steering unit43006648368-6211923NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
957 次

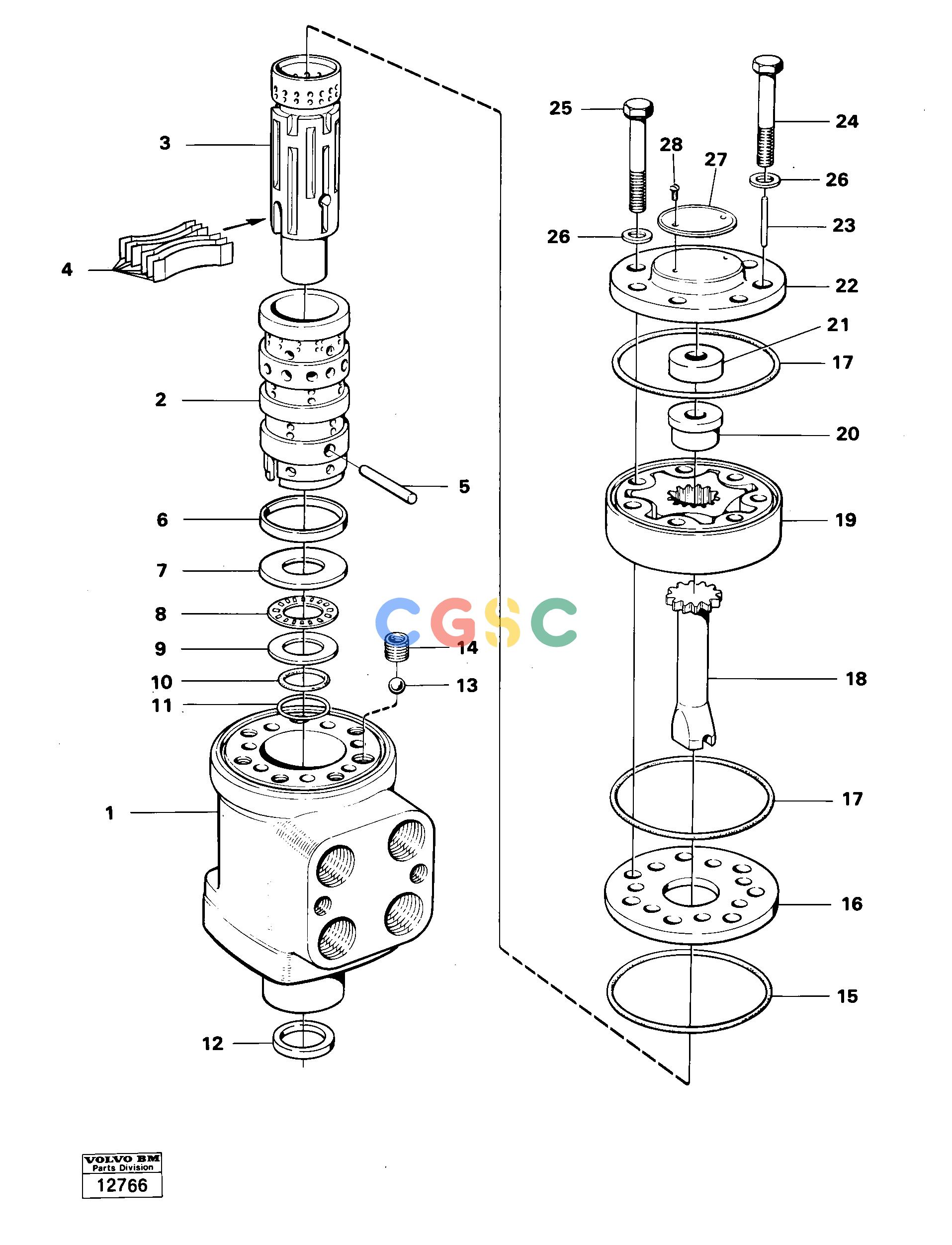

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
|
|
Housing
|
|
| 2. |
|
[0001] |
Slide
|
|
| 3. |
|
[0001] |
Slide
|
|
| 4. |
VOE6211184
|
[0001] |
Spring kit
|
|
| 5. |
VOE595377
|
[0001] |
Pin
|
|
| |
VOE6648368
|
[0001] |
Shf Cont Valve
|
|
| 6. |
VOE6213305
|
[0001] |
Ring
|
|
| |
VOE6211922
|
[0001] |
Thrust bearing
|
|
| 7. |
|
[0001] |
Washer
|
|
| 8. |
|
[0001] |
Needle bearing
|
|
| 9. |
|
[0001] |
Washer
|
|
| 10. |
VOE6639844
|
[0001] |
Ring
|
|
| 11. |
VOE6639843
|
[0001] |
O-ring
|
|
| 12. |
VOE6639845
|
[0001] |
Seal
|
|
| 13. |
VOE184645
|
[0001] |
Ball
|
|
| 14. |
VOE595380
|
[0001] |
Bushing
|
|
| |
VOE6211923
|
|
Control valve
|
|
| 15. |
VOE595381
|
[0001] |
O-ring
|
|
| 16. |
VOE595390
|
[0001] |
Plate
|
|
| 17. |
VOE595382
|
[0002] |
O-ring
|
|
| 18. |
VOE6628913
|
[0001] |
Drive gear
|
|
| 19. |
VOE6648377
|
[0001] |
Rotor kit
|
|
| |
VOE6642436
|
|
Rotor kit
|
|
| |
VOE11700990
|
|
Rotor kit
|
|
| 20. |
VOE6648379
|
[0001] |
Spacer
|
|
| 21. |
VOE6629055
|
[0001] |
Spacer ring
|
|
| 22. |
VOE595383
|
[0001] |
Cover
|
|
| |
VOE6212857
|
|
Shf Cont Valve
|
|
| 23. |
VOE6628909
|
[0001] |
Pin
|
|
| 24. |
VOE6629052
|
[0001] |
Screw
|
|
| |
VOE6642306
|
|
Screw
|
|
| |
VOE6212859
|
|
Screw
|
|
| 25. |
VOE6629053
|
[0006] |
Screw
|
|
| |
VOE6642307
|
|
Screw
|
|
| |
VOE6212860
|
|
Screw
|
|
| 26. |
VOE6625755
|
[0007] |
Washer
|
|
| 27. |
|
[0001] |
Plate
|
|
| 28. |
|
[0002] |
Screw
|
|
| 1. |
VOE6648375
|
[0001] |
Housing
|
|
| |
VOE6639850
|
[0001] |
Gasket kit
|
|
