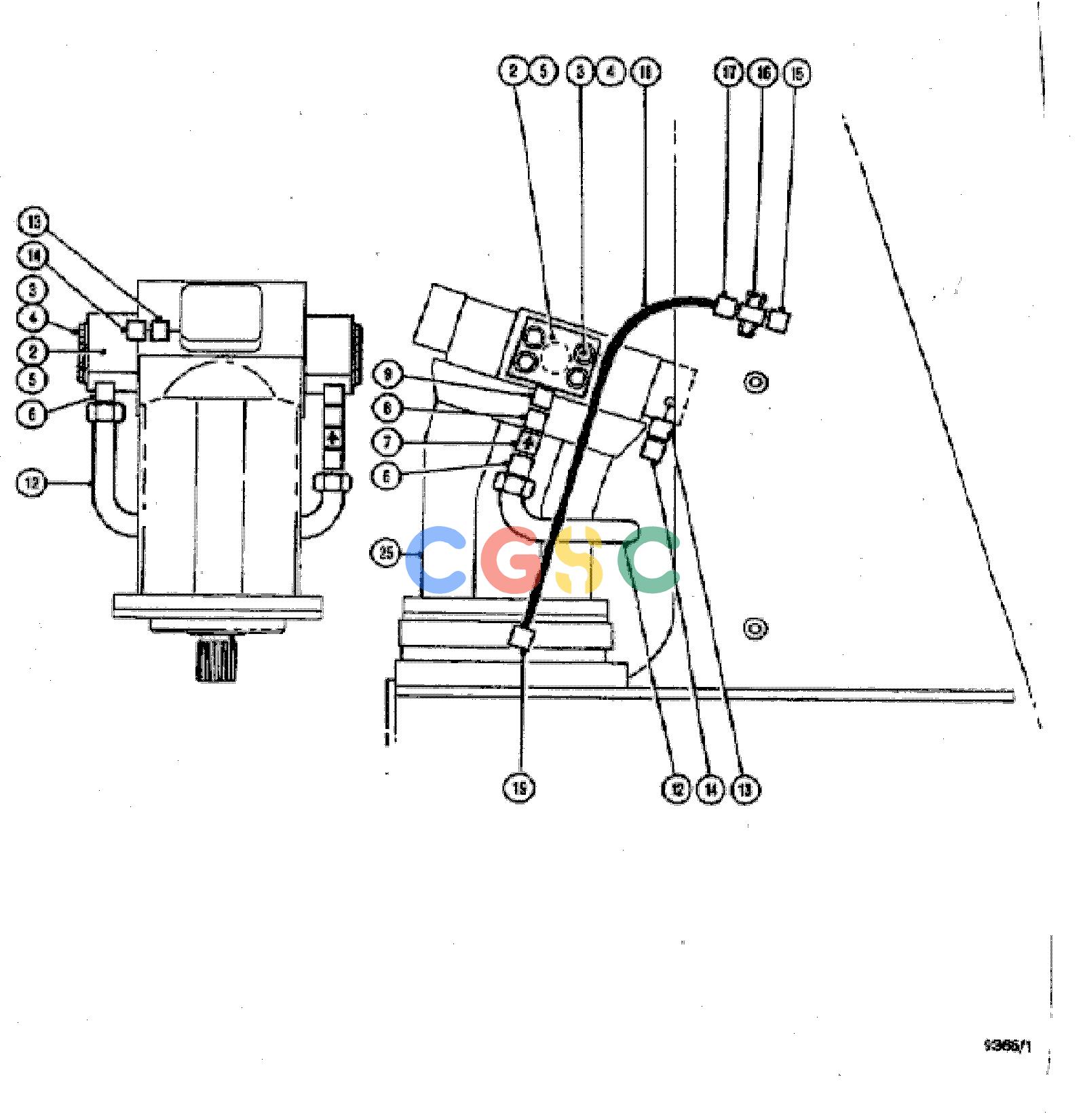

约翰迪尔零件查询22``STD - ATTACHMENTS HYDRAULIC SYSTEM SAW MOTOR 22`` HEAD ( 65001 - ) 2000-178/10 [2000-178/10]EPC John Deere online
广数供应链运营团队, 14 02月, 2025，浏览：
897 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 2. |
700070300
|
[2] |
BLOCK -
|
|
| 3. |
810082900
|
[8] |
BOLT .500-13X3.00 -
|
|
| 4. |
810011600
|
[8] |
WASHER 1/2 -
|
|
| 5. |
810566400
|
[2] |
O-RING -
|
|
| 6. |
811441300
|
[2] |
ADAPTER -
|
|
| 7. |
700591800
|
[1] |
VALVE-CHECK -
|
|
| 8. |
840547100
|
[1] |
O-RING -
|
|
| 9. |
810115500
|
[1] |
FITTING -
|
|
| 12. |
700273400
|
[1] |
TUBE -
|
|
| 13. |
810862800
|
[2] |
ADAPTER -
|
|
| 14. |
810626000
|
[2] |
CAP -
|
|
| 15. |
810000100
|
[1] |
GREASE FITTING.N610 -
|
|
| 16. |
700243500
|
[1] |
BRACKET -
|
|
| 17. |
810280700
|
[1] |
FITT 1/8NPTFX7/16-20 -
|
|
| 18. |
811409500
|
[1] |
HOSE-HYD 0.25X22 -
|
|
| 19. |
810273400
|
[1] |
ELBOW-90 DEG. -
|
|
| 25. |
-------
|
[1] |
MOTOR - DISC SAW
|
|
