神钢零件查询(4JB1) - ISUZU DIESEL ENGINE - K903C EXCAVATOR (1/06-12/07) (01-017) - ELECTRICAL PARTS Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
316 次

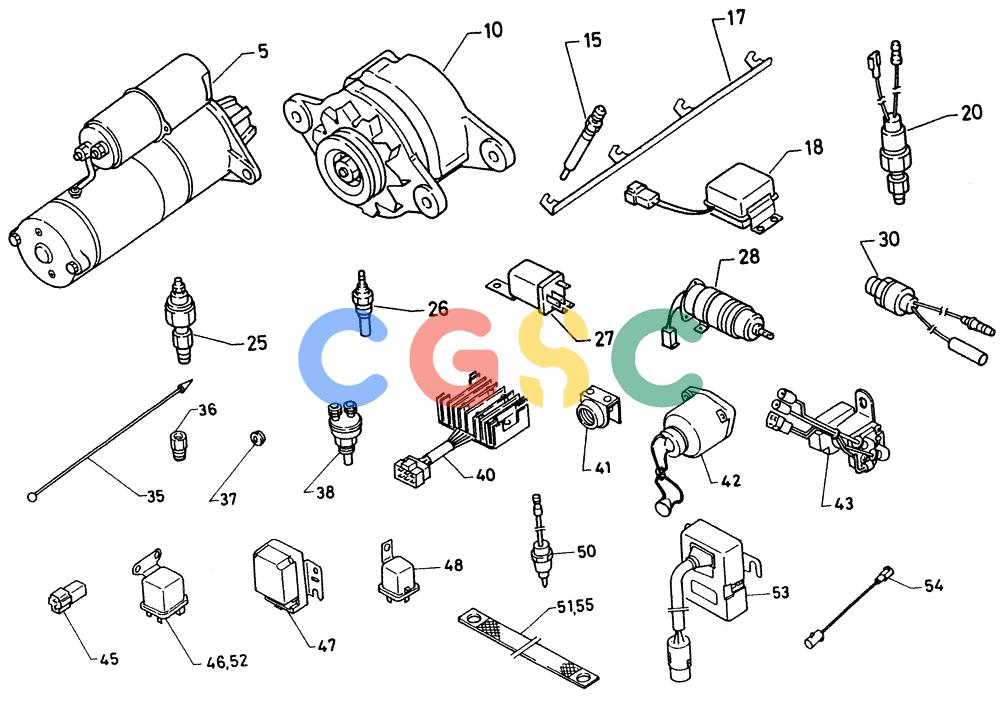

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 5. | VI8941514132 | [1] | STARTER ASM., SEE FIG. 01-022-01 | |
| 5-1. | VI8941712961 | [1] | STARTER ASM., SEE FIG. 01-022-03 | |
| 5-2. | VI8944104090 | [1] | STARTER ASM., SEE FIG. 01-022-02 | |
| 5-3. | VI8944234520 | [1] | STARTER MOTOR | KOBSTARTER ASM., SEE FIG. 01-022-04 |
| 10. | VI8941538821 | [1] | GENERATOR ASM., SEE FIG. 01-023-01 | |
| 10-1. | VI8944237560 | [1] | GENERATOR ASM., SEE FIG. 01-023-02 | |
| 10-2. | VI8944294340 | [1] | GENERATOR ASM., SEE FIG. 01-023-01 | |
| 10-3. | VI8944315600 | [1] | GENERATOR ASM., SEE FIG. 01-023-01 | |
| 10-4. | VI8944237550 | [1] | GENERATOR ASM., SEE FIG. 01-023-01 | |
| 15. | VI5814100230 | [4] | PLUG, GLOW | |
| 15-1. | VI8941337592 | [4] | PLUG, GLOW. Q.O.S | |
| 15-2. | VI9825139284 | [4] | PLUG, GLOW 24V | |
| 17. | VI8941537231 | [1] | CONNECTION | KOBCONNECTOR, GLOW PLUG Superseded by part number: VI8941537232 |
| 18. | VI1815100250 | [1] | TIMER ASM. | |
| 18-1. | VI8944165830 | [1] | TIMER ASM. | |
| 20. | VI8941538830 | [1] | PRESSURE | |
| 20. | VI8944178310 | [1] | PRESSURE | |
| 25. | VI5824100121 | [1] | THERMOSTAT | KOBSWITCH ASM., OIL PRESS. Superseded by part number: VI5824100122 |
| 25-1. | VI1824100330 | [1] | SWITCH | KOBSWITCH ASM., OIL PRESS. Superseded by part number: 76554707 |
| 26. | VI5824500180 | [1] | UNIT,THERMO METER | |
| 26-1. | VI8944265661 | [1] | UNIT,THERMO METER | |
| 27. | VI5825500290 | [1] | RELAY, SOLENOID | |
| 28. | VI5819100201 | [1] | SOLENOID ASM. ENG. STOP | |
| 28-1. | VI8944245982 | [1] | SOLENOID ASM. ENG. STOP | |
| 28-2. | VI8944245992 | [1] | SOLENOID ASM. ENG. STOP | |
| 30. | VI8941268220 | [1] | SENSOR | KOBTACHO SENSOR Superseded by part number: VIG1466721020 |
| 35. | VI9829317430 | [1] | CABLE, OIL PRESS | |
| 36. | VI9099022380 | [1] | CONNECTION | KOBADAPTER |
| 37. | VI5096050190 | [1] | PLUG | |
| 38. | VI5824500330 | [1] | OVER HEAT WARNING SWITCH | |
| 38-1. | VI5824500130 | [1] | SWITCH | KOBOVER HEAT WARNING SWITCH |
| 40. | VI5812510140 | [1] | REGULATOR ASM. | |
| 41. | VI5814200340 | [1] | RESISTANCE, CONTROL | |
| 41-1. | VI9825301080 | [1] | RESISTOR | KOBRESISTANCE.CONTROL 24V |
| 42. | VI1823100060 | [1] | SWITCH ASM., STARTER | |
| 43. | VI5825530671 | [1] | RELAY, SAFETY | |
| 43-1. | VI1825530212 | [1] | RELAY, SAFETY | |
| 43-2. | VI1825530110 | [1] | RELAY | KOBSAFETY Superseded by part number: 1825530110 |
| 45. | VI8942499850 | [2] | DIODE | |
| 46. | VI8942382950 | [1] | RELAY, STARTER | |
| 47. | VI8941341380 | [1] | RELAY, CHARGE | |
| 48. | VI5825500290 | [1] | RELAY | |
| 50. | VI8941211520 | [1] | SWITCH, THERMO | |
| 51. | VI9829315110 | [1] | HARNESS | KOBCABLE ASM. |
| 52. | VI8942481610 | [1] | RELAY, GLOW PLUG | |
| 53. | VI8941731200 | [1] | TIMER, Q.O.S | |
| 54. | VI5826590440 | [1] | FUSIBLE LINK | |
| 55. | VI9829315110 | [1] | HARNESS | KOBCABLE, EARTH |
