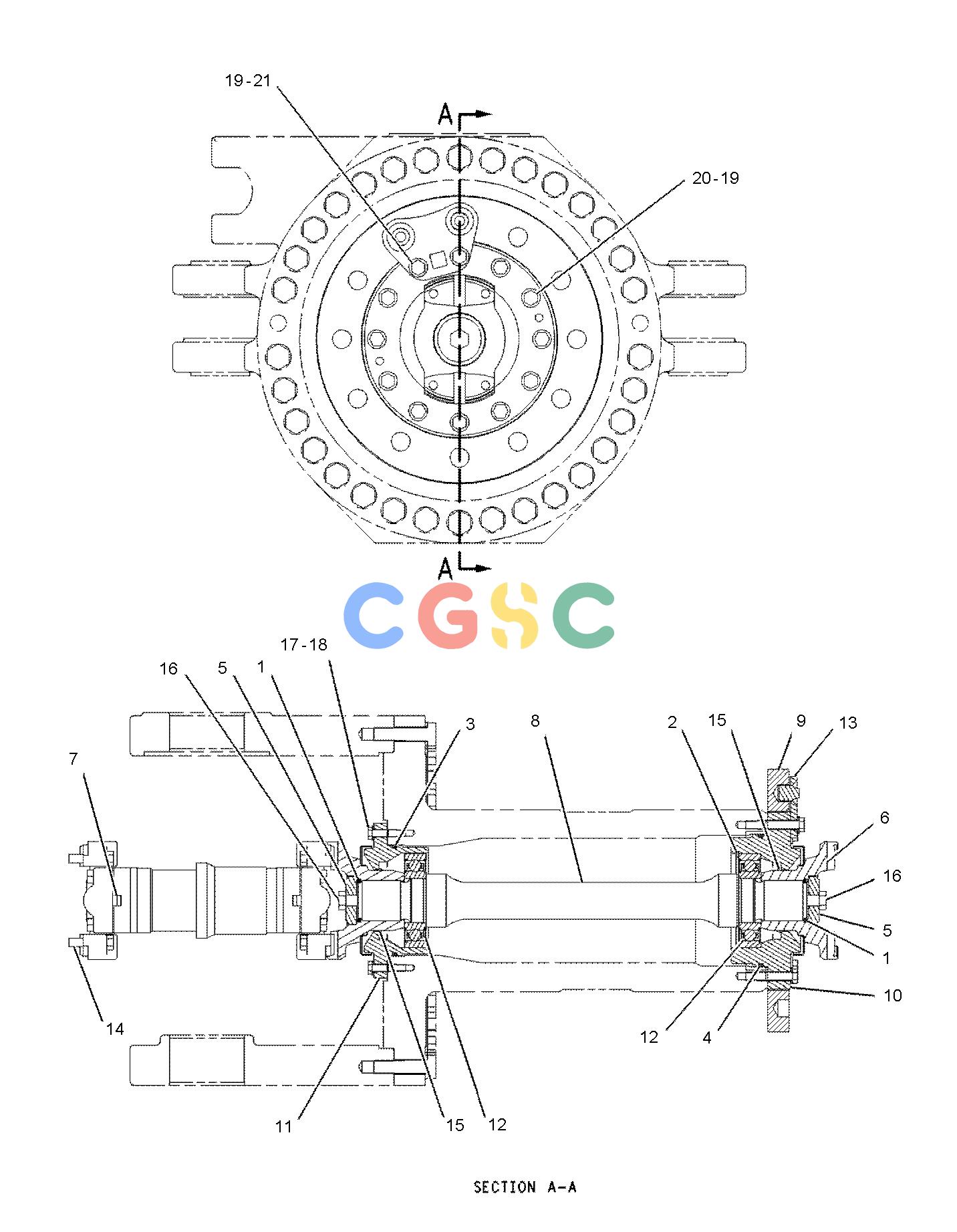

卡特零件查询（725） 149-0109: SHAFT GP-HITCH DRIVE
广数供应链运营团队, 14 02月, 2025，浏览：
796 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 2U-1574 | [2] | SEAL-O-RING | |
| 2. | 2U-1594 | [1] | CLIP | |
| 3. | 6V-5055 | [1] | SEAL-O-RING | |
| 4. | 6V-5102 | [1] | SEAL-O-RING | |
| 5. | 142-1281 | [2] | RETAINER | |
| 6. | | [2] | YOKE AS |
| | | | (EACH INCLUDES) |
| | 105-5088 | [1] | GUARD | |
| 7. | 172-4454Y | [1] | SHAFT GP-DRIVE | |
| 8. | 172-8297 | [1] | SHAFT | |
| 9. | 172-8298 | [1] | FLANGE-THRUST | |
| 10. | 172-8300 | [1] | CARRIER | |
| 11. | 172-8301 | [1] | CARRIER | |
| 12. | 172-8302 | [2] | BALL BEARING | |
| 13. | 172-8303 | [1] | PLATE AS | |
| 14. | 0S-0484 | [8] | BOLT(1/2-20X2.25-IN) | |
| 15. | 5P-1086 | [2] | SEAL-LIP TYPE | |
| 16. | 7X-2555M | [2] | BOLT(M16X2X80-MM) | |
| 17. | 8T-4121 | [6] | WASHER-HARD(11X21X2.5-MM THK) | |
| 18. | 8T-4185M | [6] | BOLT(M10X1.5X50-MM) | |
| 19. | 8T-4223 | [12] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 20. | 8T-4648M | [10] | BOLT(M12X1.75X70-MM) | |
| 21. | 8T-6868M | [2] | BOLT(M12X1.75X80-MM) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
