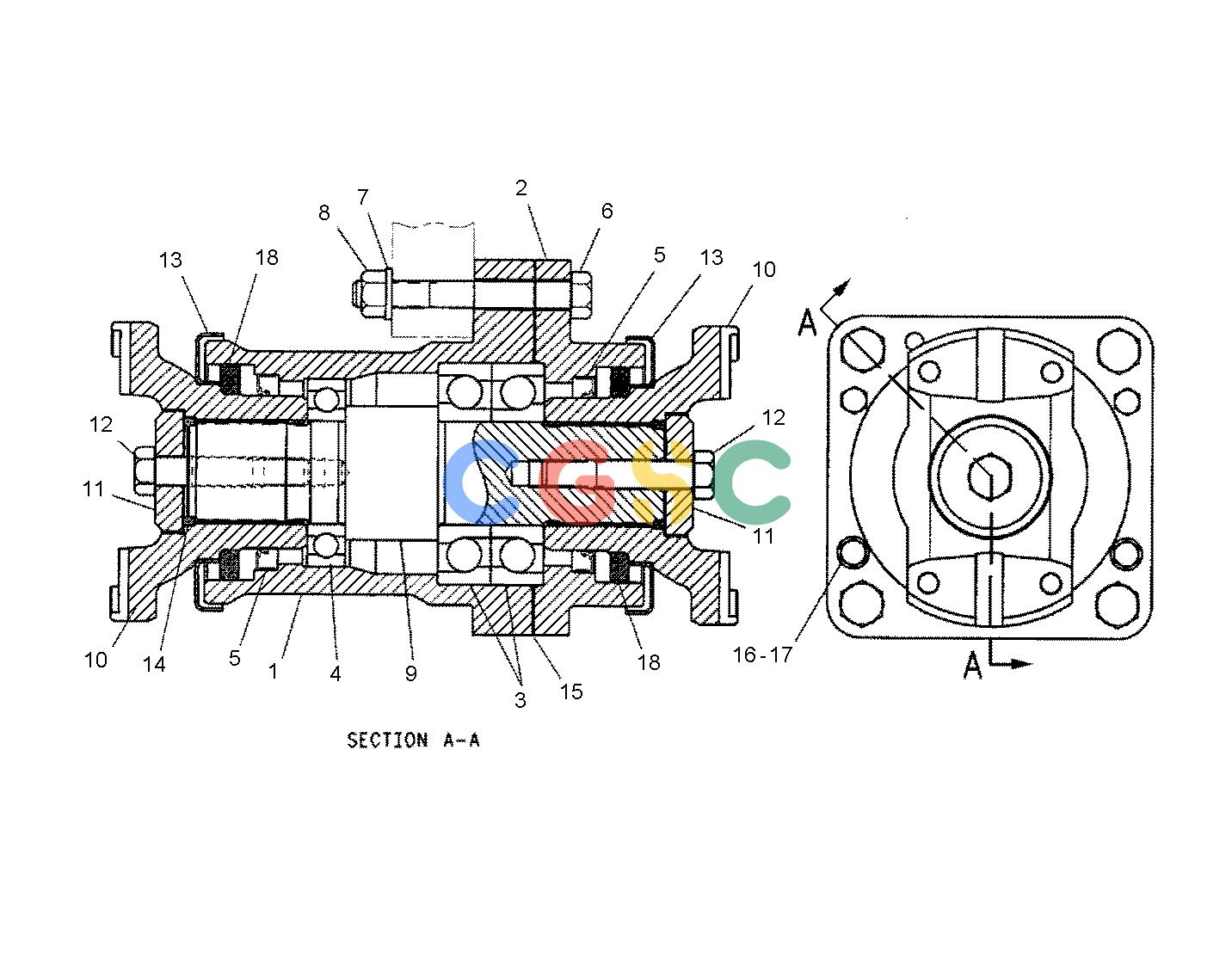

卡特零件查询（725） 131-8403: SHAFT GP-REAR DRIVE
广数供应链运营团队, 14 02月, 2025，浏览：
645 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 131-8398 | [1] | HOUSING | |
| 2. | 131-8400 | [1] | HOUSING | |
| 3. | 131-1010 | [2] | BALL BEARING | |
| 4. | 1F-2771 | [1] | BALL BEARING | |
| 5. | 5P-1086 | [2] | SEAL-LIP TYPE | |
| 6. | 7X-0356 | [4] | BOLT(5/8-11X5-IN) | |
| 7. | 8T-4122 | [4] | WASHER-HARD(17X32X3.5-MM THK) | |
| 8. | 7X-0448 | [4] | NUT(5/8-11-THD) | |
| 9. | 131-8401 | [1] | SHAFT | |
| 10. | 142-1280 | [2] | YOKE-DRIVE | |
| 11. | 142-1281 | [2] | RETAINER | |
| 12. | 7X-0350 | [2] | BOLT(5/8-11X3.5-IN) | |
| 13. | 3S-9880 | [2] | GUARD | |
| 14. | 2U-1574 | [2] | SEAL-O-RING | |
| 15. | 142-1282B | [1] | SHIM PACK(INCLUDES 9-SHIMS) | |
| 16. | 4L-9337 | [4] | BOLT(3/8-16X1.5-IN) | |
| 17. | 8T-4896 | [4] | WASHER-HARD(10.2X18.5X2.5-MM THK) | |
| 18. | 142-2670 | [2] | RING-SEAL | |
| | B | | USE AS REQUIRED |
