神钢零件查询(4D31-T) - MITSUBISHI DIESEL ENGINE (1/88-12/06) (01-002) - CRANKSHAFT BEARING Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
438 次

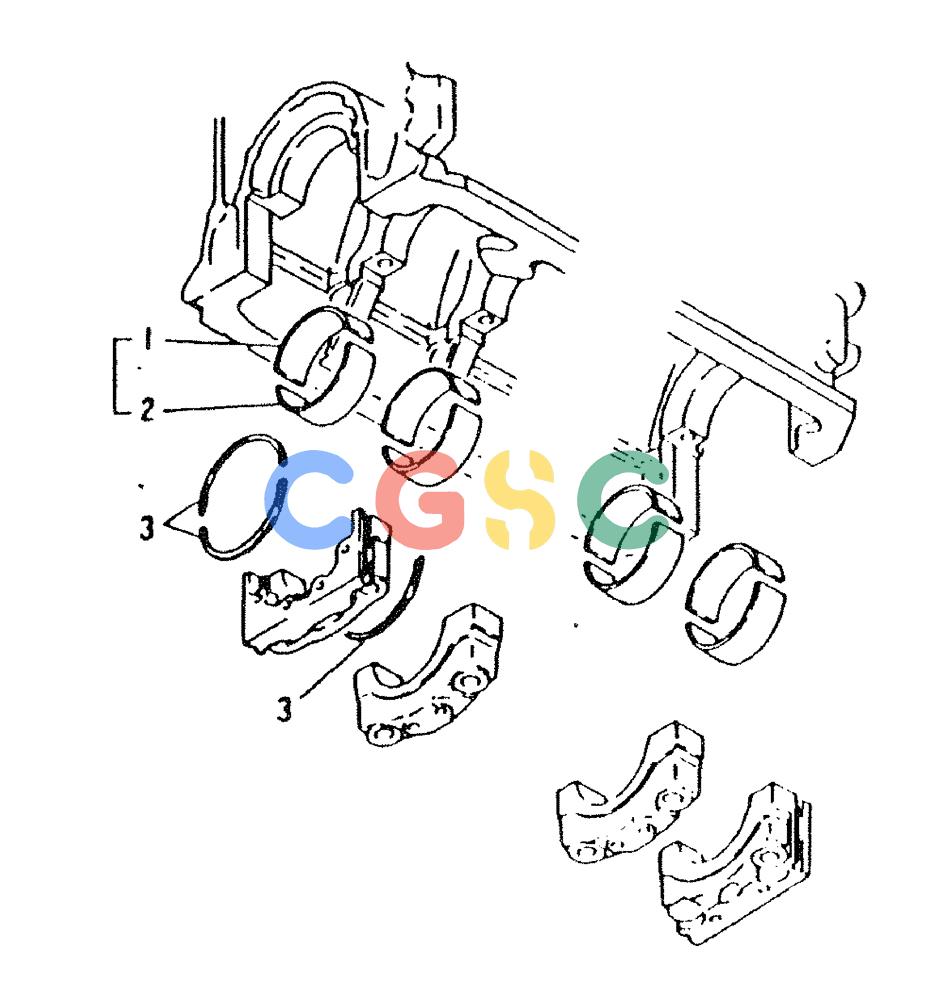

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-2. | VAME999384 | [1] | SET OF STD MAIN BRGS | KOBMAIN BEARING SET, ONE MODEL STD |
| . . | VAME999385 | [1] | BEARING ASSY | KOBUS 0.25 |
| . . | VAME999386 | [1] | BEARING ASSY | KOBUS 0.50 |
| . . | VAME999387 | [1] | BEARING SET | KOBUS 0.75 |
| . . | VAME999388 | [1] | US 1.00 | |
| 1. | NSS | [5] | NOT SOLD SEPARAT | CONBEARING, MAIN UPPER STD, (ME011550) |
| 2. | NSS | [5] | NOT SOLD SEPARAT | CONBEARING, MAIN LOWER STD, (ME011555) |
| 3. | VAME020328 | [3] | THRUST PLATE | KOBPLATE, THRUST STD Superseded by part number: VAME013564 |
| . . | VAME020329 | [1] | THRUST PLATE O.S 0.1 OS 0.15 | THRUST PLATE O.S 0.1 OS 0.15 |
| . . | VAME020330 | [1] | PLATE THRUST O.S. 0S 0.30 | PLATE THRUST O.S. 0S 0.30 |
| . . | VAME020331 | [1] | METAL 045 OS 0.45 | METAL 045 OS 0.45 |
