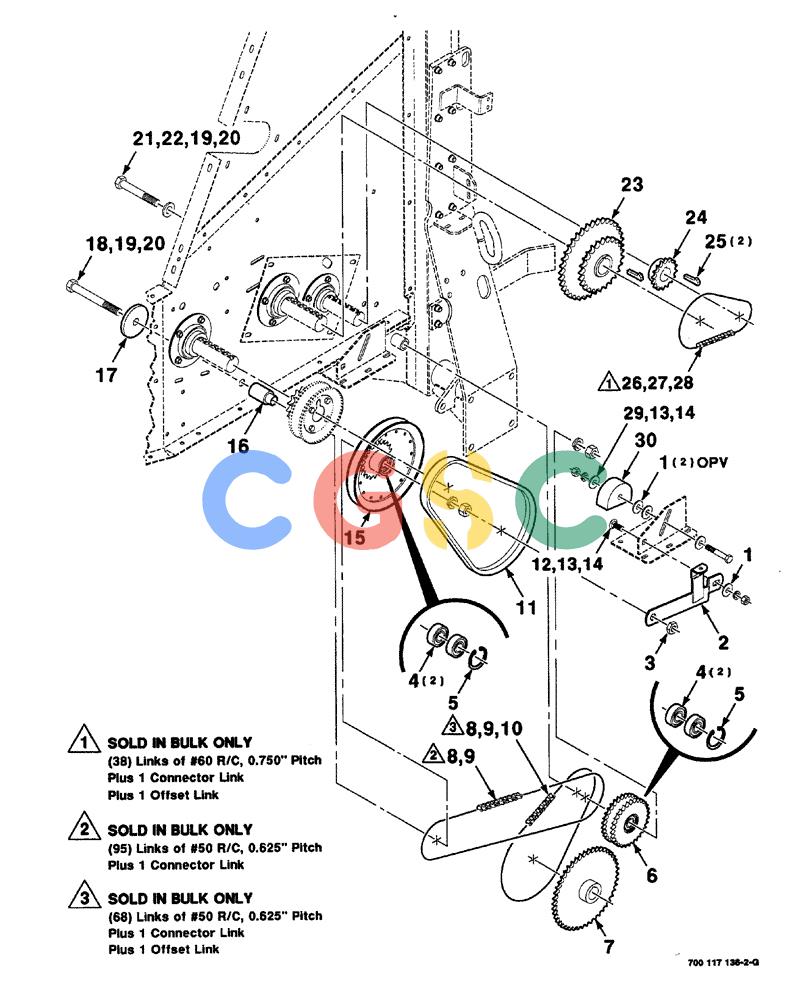

| 1. |
495-21056
|
[3] |
WASHER,1/2"
|
CAS
wide plain, 1/2" Superseded by part number: 72187265, 80700
|
| 2. |
700131874
|
[1] |
STRAP
|
HFI
WA idler, arm
|
| 3. |
425-1412
|
[1] |
JAM NUT,Jam, 3/4"-10, G5
|
CAS
hex jam, 3/4"-10 Superseded by part number: 86632557
|
| 4. |
T39594
|
[4] |
BALL BEARING,0.7505" ID x 1.7805" OD x 0.61"
|
CAS
cylindrical Superseded by part number: 87029275
|
| 5. |
100-21175
|
[2] |
SNAP RING,1.75", Int, #175
|
CAS
Superseded by part number: 66967
|
| 6. |
6241848
|
[1] |
DRIVE SPROCKET
|
L
ASSY. double, 25 tooth, Includes: Ref. 4 and 5
|
| 7. |
6284046
|
[1] |
PINION
|
L
SPROCKET, WA, 45 tooth, Ref. pickup drive see Figure 03-14
|
| 8. |
1791D
|
[2] |
CHAIN (AG),#50, 192 Links x 15.88mm = 3048mm
|
IH
roller, #50, 10 foot bulk
|
| 9. |
47530
|
[2] |
LINK, CONNECTING
|
IH
#50 R/C
|
| 10. |
241-1715
|
[1] |
LINK,15.88mm Pitch
|
CAS
offset, #50 R/C Superseded by part number: 86595276
|
| 11. |
57604
|
[1] |
V-BELT
|
L
|
| 12. |
433-820
|
[1] |
CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5
|
CAS
Superseded by part number: 87868
|
| 13. |
80679
|
[2] |
LOCK WASHER,1/20.507 CST ZND
|
NH
|
| 14. |
425-108
|
[2] |
NUT,1/2" - 13, Gr 5
|
CAS
Superseded by part number: 280431
|
| 15. |
700126740
|
[1] |
SHEAVE
|
L
ASSY. sprocket, Includes: Ref. 4 and 5
|
| 16. |
700101762
|
[1] |
SPACER
|
HFI
|
| 17. |
6579106
|
[1] |
LARGE PLATE
|
CAS
PLATE, LARGE WASHER special Superseded by part number: 706579106
|
| 18. |
413-12104
|
[1] |
BOLT,Hex, 3/4" - 10 x 6-1/2", Gr 5
|
CAS
hex, 3/4"-10 x 6-1/2" Superseded by part number: 280223
|
| 19. |
492-11075
|
[2] |
LOCK WASHER,3/4"
|
CAS
3/4" Superseded by part number: 87340
|
| 20. |
425-1012
|
[2] |
NUT,3/4"-10, G5
|
CAS
Superseded by part number: 280954
|
| 21. |
413-1280
|
[1] |
BOLT,Hex, 3/4" - 10 x 5", Gr 5
|
CAS
Superseded by part number: 88421
|
| 22. |
705566
|
[1] |
WASHER
|
IH
hardened plain, 3/4"
|
| 23. |
700101757
|
[1] |
SPROCKET
|
L
SPROCKET, WA double, 24 and 36 tooth, see Figure 02-14
|
| 24. |
700101814
|
[1] |
SPROCKET
|
L
SPROCKET, WA, 16 tooth
|
| 25. |
Q3947
|
[2] |
KEY,Gib, 3/8" Sq x 1 1/2"
|
IH
|
| 26. |
241-1316
|
[1] |
LINK,19.05mm Pitch
|
CAS
CHAIN roller, #60, 10 foot bulk
|
| 28. |
241-1716
|
[1] |
LINK,19.05mm Pitch
|
CAS
HALF LINK offset, #60 R/C
|
| 29. |
413-848
|
[1] |
BOLT,Hex, 1/2" - 13 x 3", Gr 5
|
IH
SCREW hex cap, 1/2"-13 x 3" Superseded by part number: 72187218, 87339
|
| 30. |
760728
|
[1] |
BLOCK ASSY.
|
L
chain, idler
|
