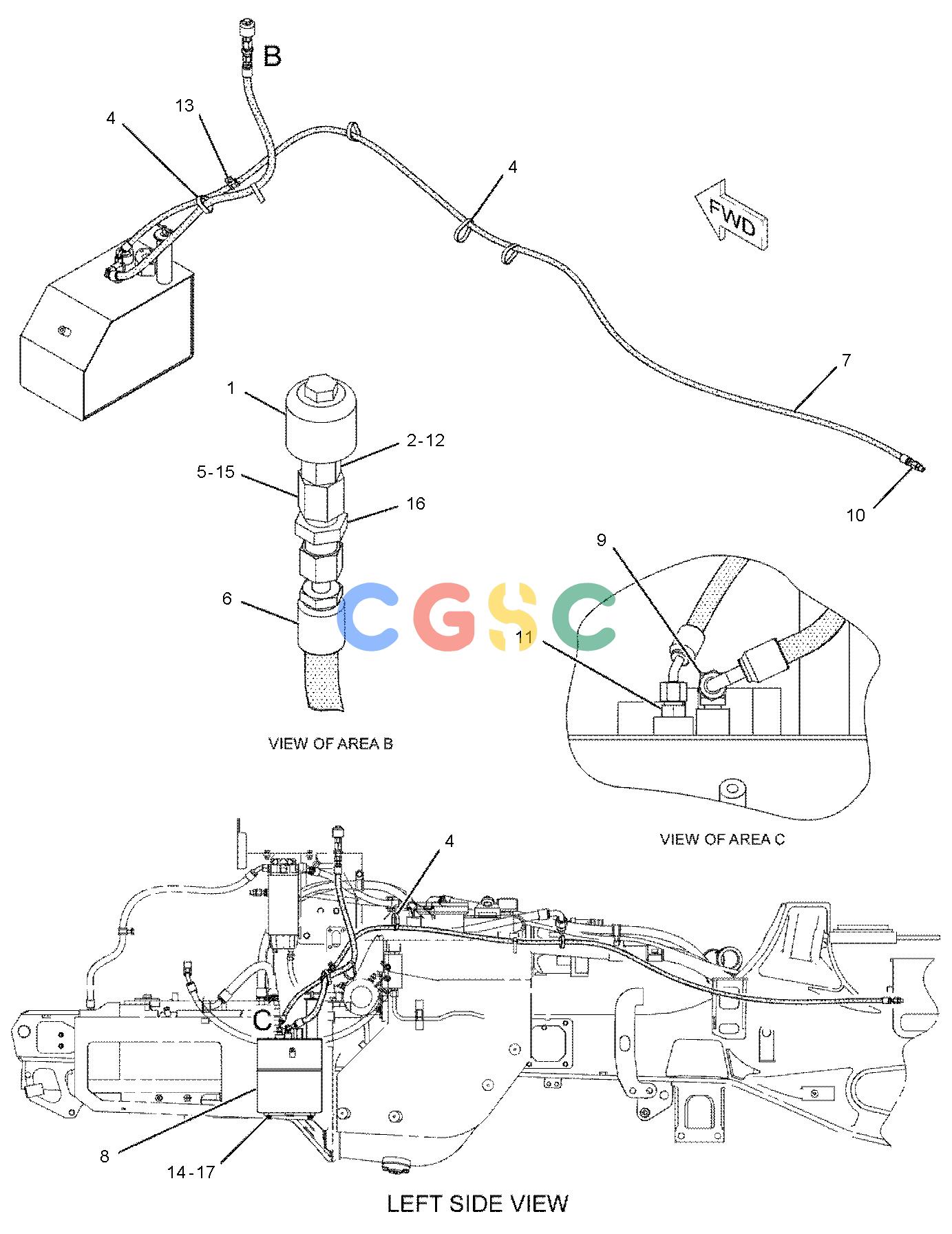

卡特零件查询（725） 245-2083: TANK GP-POWER TRAIN OIL
广数供应链运营团队, 14 02月, 2025，浏览：
334 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 4H-6112 | [1] | BREATHER(POWER TRAIN OIL) | |
| 2. | 5P-3501 | [1] | ADAPTER | |
| 4. | 6U-0456 | [5] | STRAP | |
| 5. | 8T-9358 | [1] | CONNECTOR | |
| 6. | 112-9269I | [1] | HOSE AS | |
| 7. | 180-2452I | [1] | HOSE AS | |
| 8. | 193-0918Y | [1] | TANK GP-POWER TRAIN OIL(TRANSFER GEAR) | |
| 9. | 199-6290 | [1] | ELBOW AS | |
| | 2T-2305 | [1] | ELBOW | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| 10. | 148-8316 | [1] | CONNECTOR AS | |
| | 3J-7354 | [1] | SEAL-O-RING | |
| | 4J-5477 | [1] | SEAL-O-RING | |
| | 6V-8647 | [1] | CONNECTOR | |
| 11. | 148-8325 | [1] | CONNECTOR AS | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 4J-5477 | [1] | SEAL-O-RING | |
| | 6V-8641 | [1] | CONNECTOR | |
| 12. | 3J-1907 | [1] | SEAL-O-RING | |
| 13. | 3U-2752 | [1] | CLIP(LOOP) | |
| 14. | 7X-7729 | [4] | WASHER(11X25X3-MM THK) | |
| 15. | 6V-8397 | [1] | SEAL-O-RING | |
| 16. | 6V-9168 | [1] | NUT(11/16-16-THD) | |
| 17. | 8T-4191M | [4] | BOLT(M10X1.5X16-MM) | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
