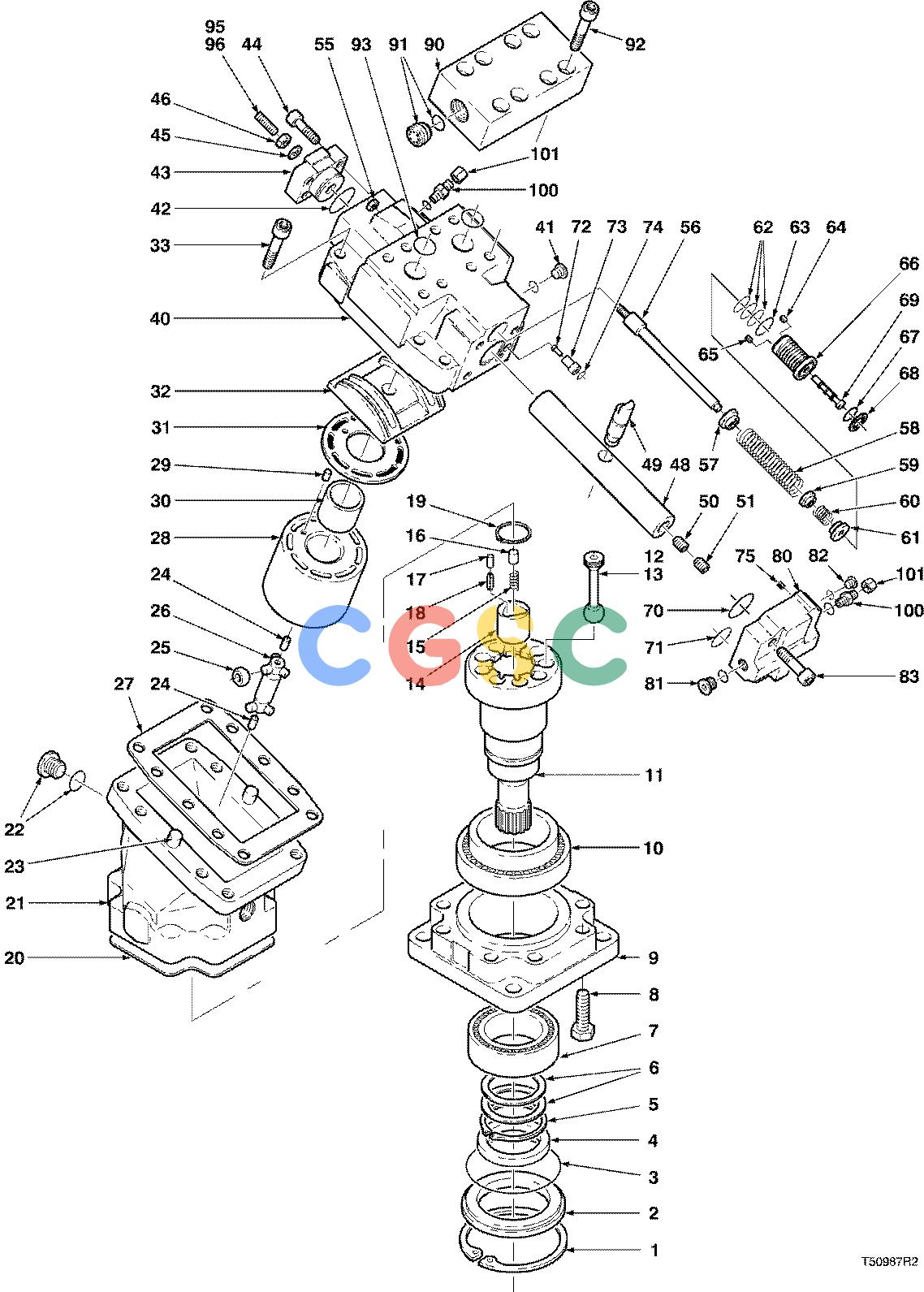

约翰迪尔零件查询24``STD - ATTACHMENTS MOTOR DISC SAW 24`` HEAD ( 603003 - ) 2252-010/10 [2252-010/10]EPC John Deere online
广数供应链运营团队, 14 02月, 2025，浏览：
486 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| A. |
F120871
|
[1] |
MOTOR -
|
|
| 1. |
F433150
|
[1] |
RETAINING RING -
|
|
| 2. |
F433151
|
[1] |
PLATE -
|
|
| 3. |
F433152
|
[1] |
O-RING -
|
|
| 4. |
F433153
|
[1] |
SEAL - SHAFT
|
|
| 5. |
F433154
|
[1] |
RETAINING RING -
|
|
| 6. |
F433155
|
|
SHIM 0.5MM -
|
|
| |
F433156
|
|
SHIM 0.6MM -
|
|
| |
F433157
|
|
SHIM 0.8MM -
|
|
| 7. |
F433158
|
[1] |
BEARING -
|
|
| 8. |
F433159
|
[8] |
BOLT -
|
|
| 9. |
F433160
|
[1] |
FLANGE -
|
|
| 10. |
F433161
|
[1] |
BEARING - ROLLER
|
|
| 11. |
F433162
|
[1] |
SHAFT -
|
|
| 12. |
F433163
|
[9] |
PISTON -
|
|
| 13. |
F433164
|
[3] |
RING - PISTON
|
|
| 14. |
F433165
|
[1] |
COUPLING -
|
|
| 15. |
F433166
|
[1] |
SPRING -
|
|
| 16. |
F433167
|
[1] |
PIN - GUIDE
|
|
| 17. |
F433168
|
[3] |
PIN -
|
|
| 18. |
F433169
|
[3] |
PIN - SPRING
|
|
| 19. |
F433170
|
[1] |
RETAINING RING -
|
|
| 20. |
F433171
|
[1] |
GASKET -
|
|
| 21. |
F433172
|
[1] |
HOUSING -
|
|
| 22. |
F433173
|
[1] |
PLUG -
|
|
| 23. |
F433174
|
[2] |
PIN -
|
|
| 24. |
F433175
|
[2] |
PIN -
|
|
| 25. |
F433176
|
[6] |
ROLLER -
|
|
| 26. |
F433177
|
[1] |
SHAFT -
|
|
| 27. |
F433178
|
[1] |
GASKET -
|
|
| 28. |
F433179
|
[1] |
BARREL - CYLINDER
|
|
| 29. |
F433180
|
[3] |
PIN - GUIDE
|
|
| 30. |
F433181
|
[1] |
BEARING - NEEDLE
|
|
| 31. |
F433182
|
[1] |
PLATE -
|
|
| 32. |
F433183
|
[1] |
PLATE - CONTROL
|
|
| 33. |
F433159
|
[8] |
BOLT -
|
|
| 40. |
F433184
|
[1] |
PLATE -
|
|
| 41. |
F433185
|
[1] |
PLUG -
|
|
| 42. |
F433186
|
[1] |
O-RING -
|
|
| 43. |
F433187
|
[1] |
COVER -
|
|
| 44. |
F433188
|
[4] |
BOLT -
|
|
| 45. |
F433189
|
[1] |
WASHER -
|
|
| 46. |
-------
|
[1] |
Nut
|
|
| 48. |
F433191
|
[1] |
PISTON -
|
|
| 49. |
F433192
|
[1] |
PIN -
|
|
| 50. |
F433193
|
[1] |
SET SCREW -
|
|
| 51. |
F433194
|
[1] |
SET SCREW -
|
|
| 55. |
F433195
|
[1] |
NUT -
|
|
| 56. |
F433196
|
[1] |
ROD - ADJUSTING
|
|
| 57. |
F433197
|
[1] |
GUIDE - SPRING
|
|
| 58. |
F433198
|
[1] |
SPRING -
|
|
| 59. |
F433199
|
[1] |
SEAT - SPRING
|
|
| 60. |
F433200
|
[1] |
SPRING -
|
|
| 61. |
F433201
|
[1] |
SEAT - SPRING
|
|
| 62. |
F433202
|
[9] |
RING - PISTON
|
|
| 63. |
F433203
|
[1] |
O-RING -
|
|
| 64. |
F433386
|
[1] |
ORIFICE - 1.0
|
|
| 65. |
F433386
|
[1] |
ORIFICE - 1.0
|
|
| 66. |
F433204
|
[1] |
SLEEVE -
|
|
| 67. |
F433205
|
[1] |
O-RING -
|
|
| 68. |
F433206
|
[1] |
RING -
|
|
| 69. |
F433207
|
[1] |
SPOOL -
|
|
| 70. |
F433208
|
[1] |
O-RING -
|
|
| 71. |
F433209
|
[3] |
O-RING -
|
|
| 72. |
F433210
|
[2] |
POPPET -
|
|
| 73. |
F433211
|
[2] |
GUIDE -
|
|
| 74. |
F433209
|
[4] |
O-RING -
|
|
| 75. |
F433387
|
[1] |
ORIFICE - 0.6
|
|
| 80. |
F433212
|
[1] |
PLATE -
|
|
| 81. |
F433213
|
[1] |
PLUG -
|
|
| 82. |
F433213
|
[1] |
PLUG -
|
|
| 83. |
F433394
|
[4] |
BOLT -
|
|
| |
F433389
|
[1] |
CHECK VALVE -
|
|
| 90. |
F433388
|
[1] |
HOUSING -
|
|
| 91. |
F433393
|
[1] |
CHECK VALVE -
|
|
| 92. |
F433390
|
[8] |
BOLT -
|
|
| 93. |
F433391
|
[2] |
O-RING -
|
|
| 95. |
F433190
|
[1] |
SCREW M10X1.50X90 -
|
|
| 96. |
F121359
|
[1] |
SCREW M10X1.50X70 - FOR TJ 950 ONLY
|
|
| 100. |
810862800
|
[2] |
ADAPTER -
|
|
| 101. |
810626000
|
[2] |
CAP -
|
|
| |
F433392
|
[1] |
SEAL KIT -
|
|
