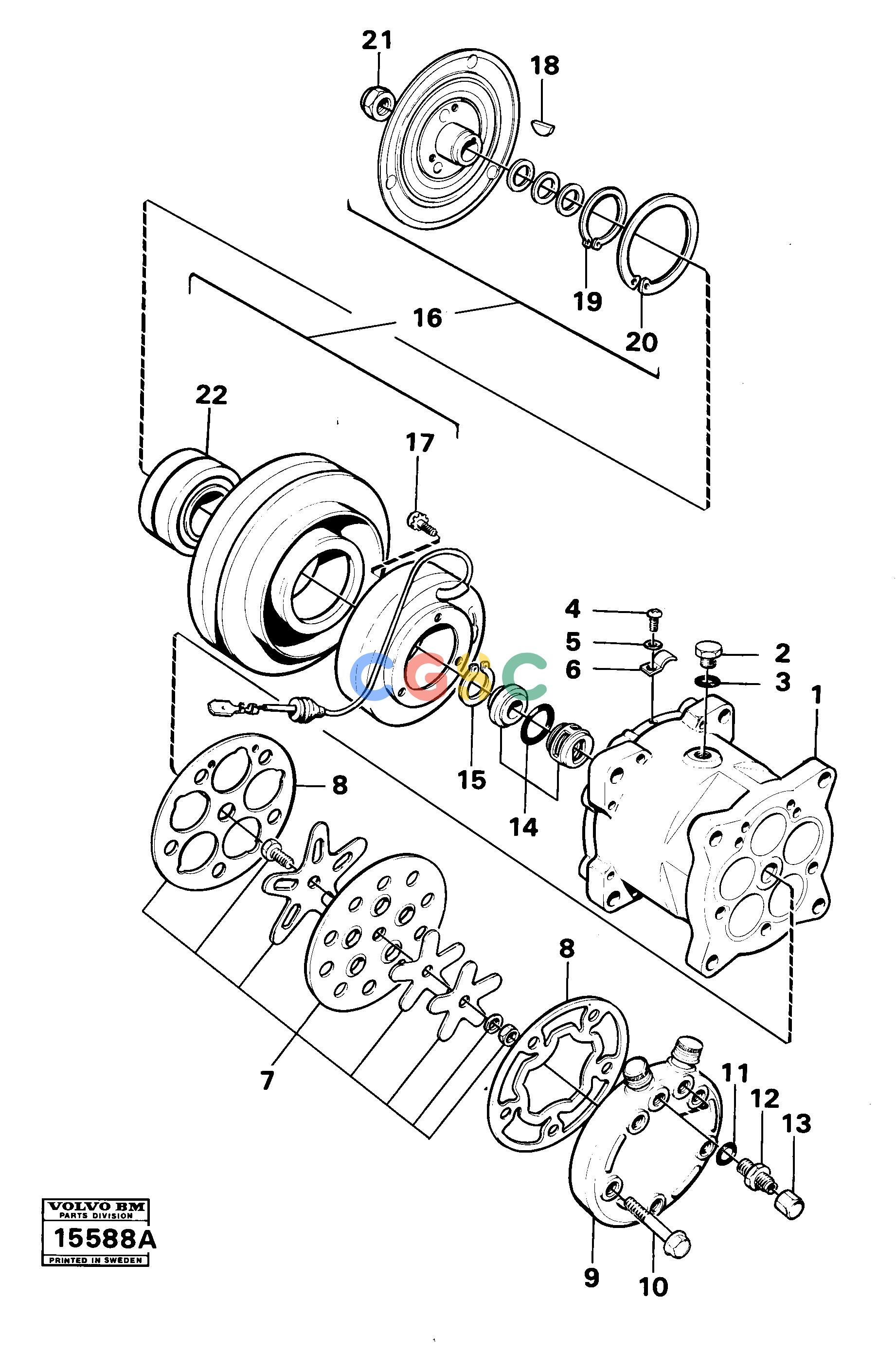

沃尔沃零件查询4300 Air compressor43001572273-1593151NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
732 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 3. |
VOE3522453
|
[1] |
O-ring
|
|
| 4. |
|
[1] |
Bolt
|
|
| 5. |
|
[1] |
Washer
|
|
| 6. |
|
[1] |
Clamp
|
|
| 7. |
VOE1698666
|
[1] |
Repair kit
|
|
| |
VOE1572273
|
[0001] |
Compressor
|
ERS. AV 1593151
|
| 8. |
VOE1698665
|
[1] |
Gasket kit
|
|
| 9. |
VOE1596020
|
[1] |
Cylinder head
|
|
| 10. |
VOE1596036
|
[6] |
Screw
|
|
| 11. |
VOE3522453
|
[3] |
O-ring
|
|
| 12. |
VOE1596025
|
[2] |
Valve
|
|
| 13. |
VOE1215459
|
[0002] |
Valve cap
|
|
| 14. |
VOE1596034
|
[0001] |
Seal
|
|
| 15. |
|
[0001] |
Lock ring
|
|
| 16. |
VOE1596027
|
[0001] |
Clutch
|
|
| 17. |
VOE1596033
|
[0003] |
Screw
|
|
| |
VOE1593151
|
|
Compressor
|
|
| 18. |
VOE1596030
|
[0001] |
Key
|
|
| 19. |
VOE13914468
|
[0001] |
Snap ring
|
|
| 20. |
VOE1596032
|
[0001] |
Lock ring
|
|
| 21. |
VOE1596029
|
[0001] |
Nut
|
|
| 22. |
VOE6648698
|
[0001] |
Bearing kit
|
|
| 1. |
|
[1] |
Casing
|
|
| 2. |
VOE1596024
|
[1] |
Plug
|
|
