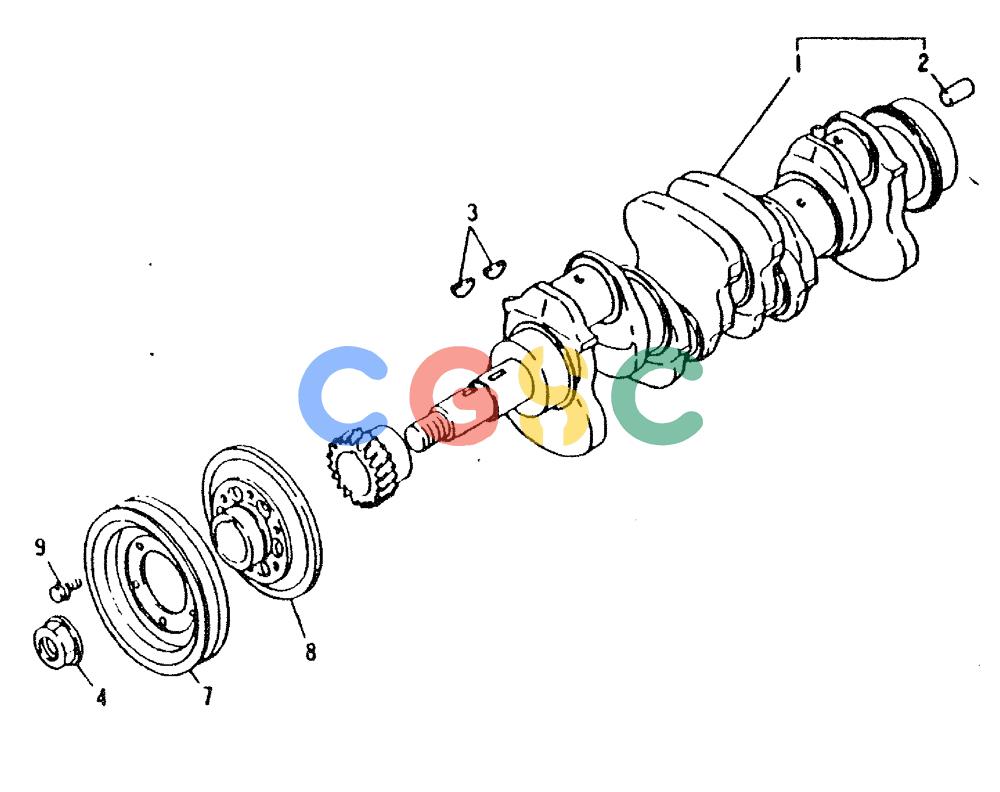

神钢零件查询(4D31-T) - MITSUBISHI DIESEL ENGINE (1/88-12/06) (01-011) - CRANKSHAFT AND PULLEY Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
225 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-2. | VAME012317 | [1] | CRANKSHAFT CRANKSHAFT ASSY | CRANKSHAFT CRANKSHAFT ASSY |
| 1. | NSS | [1] | NOT SOLD SEPARAT | CONCRANKSHAFT |
| 2. | VAMF472407 | [1] | PIN | KOBPIN, DOWEL 14 |
| 3. | VAMS476137 | [2] | WOODRUFF KEY | KOBKEY, WOODRUFF 7 X 22 Superseded by part number: VAF287007022 |
| 4. | VAMH004045 | [1] | NUT | KOBNUT 24 |
| 7. | VAME080319 | [1] | PULLEY | KOBPULLEY, CRANKSHAFT PCD163.5 |
| 8. | VAME012321 | [1] | FLANGE | KOBFLANGE, CRANKSHAFT PULLEY |
| 9. | VAMF140225 | [6] | BOLT | KOBBOLT, FLANGE 6 X 20 |
