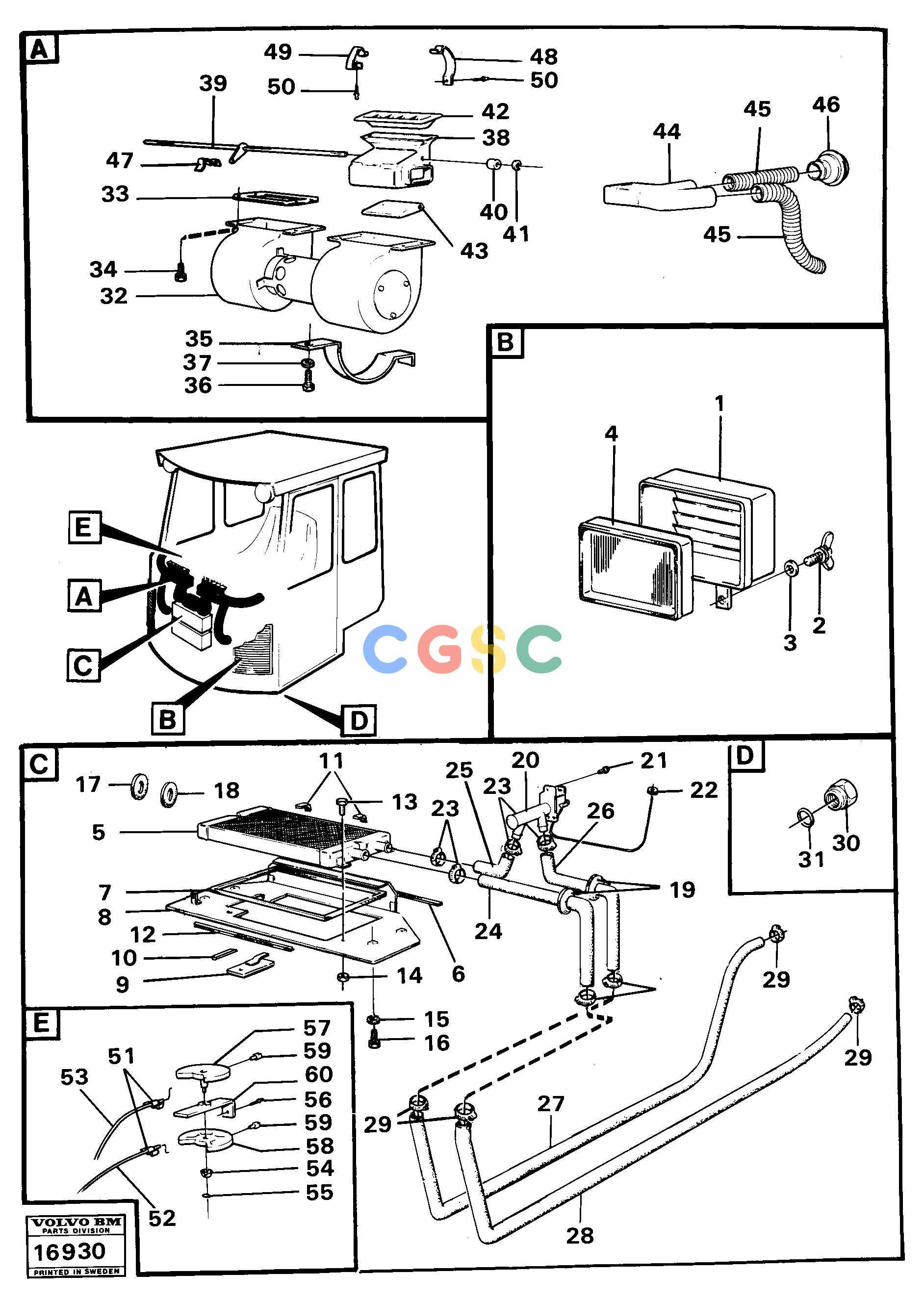

沃尔沃零件查询4300 Heating system prod no 33106,331074300 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
991 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE1573059
|
[4] |
Filter retainer
|
|
| 2. |
VOE13965036
|
[8] |
Wing screw
|
|
| 3. |
VOE925736
|
[8] |
Washer
|
|
| 4. |
VOE11007388
|
[4] |
Air filter
|
|
| 5. |
VOE4771307
|
[1] |
Radiator
|
|
| 6. |
VOE4785641
|
[REQ] |
Rubber moulding
|
|
| 7. |
VOE4785641
|
[REQ] |
Rubber moulding
|
|
| 8. |
|
[1] |
Mounting plate
|
|
| 9. |
|
[1] |
Mounting plate
|
|
| 10. |
VOE762681
|
[REQ] |
Rubber moulding
|
L=1000
|
| 11. |
VOE4785641
|
[REQ] |
Rubber moulding
|
L=2X35
|
| 12. |
VOE4785415
|
[REQ] |
Sealing strip
|
L=2X180
|
| 13. |
VOE13955271
|
[2] |
Screw
|
|
| 14. |
VOE13955781
|
[2] |
Nut
|
|
| 15. |
VOE60110304
|
[0004] |
Washer
|
|
| 16. |
VOE955268
|
[0004] |
Hexagon screw
|
|
| 17. |
VOE961970
|
[0001] |
Plug
|
|
| 18. |
VOE943920
|
[0001] |
Plug
|
|
| 19. |
VOE13961962
|
[0002] |
Protecting bushing
|
|
| 20. |
VOE4774825
|
[0001] |
Volume control valve
|
|
| 21. |
VOE955137
|
[0001] |
Cross recessed screw
|
|
| 22. |
VOE941262
|
[0001] |
Grommet
|
|
| 23. |
VOE13943472
|
[0006] |
Hose clamp
|
|
| 24. |
VOE943368
|
[REQ] |
Hose
|
|
| 25. |
VOE943368
|
[REQ] |
Hose
|
|
| 26. |
VOE943368
|
[REQ] |
Hose
|
|
| 27. |
VOE943368
|
[REQ] |
Hose
|
|
| 28. |
VOE943368
|
[REQ] |
Hose
|
|
| 29. |
VOE4789398
|
[0004] |
Clamp
|
|
| |
VOE13943474
|
[0004] |
Hose clamp
|
|
| 30. |
VOE4770554
|
[0002] |
Blind nut
|
|
| |
VOE4770555
|
[0002] |
Blind nut
|
|
| 31. |
VOE925055
|
[0002] |
O-ring
|
|
| |
VOE925058
|
[0002] |
O-ring
|
|
| 32. |
VOE4881219
|
[0001] |
Fan
|
|
| 33. |
VOE4770831
|
[0002] |
Gasket
|
|
| 34. |
VOE955270
|
[0008] |
Hexagon screw
|
|
| 35. |
VOE4932198
|
[0002] |
Bracket
|
|
| 36. |
VOE955297
|
[0008] |
Hexagon screw
|
|
| 37. |
VOE13955894
|
[8] |
Washer
|
|
| 38. |
VOE4770481
|
[1] |
Dfr Outlet
|
H
|
| |
VOE4770482
|
[1] |
Dfr Outlet
|
V
|
| 39. |
VOE4770553
|
[1] |
Shutter shaft
|
|
| 40. |
VOE364225
|
[4] |
Bushing
|
|
| 41. |
VOE191695
|
[1] |
Retainer
|
|
| 42. |
VOE686195
|
[2] |
Frame
|
|
| 43. |
|
[2] |
Muffler
|
|
| 44. |
VOE4955003
|
[2] |
Tube
|
|
| 45. |
VOE4850665
|
[REQ] |
Corrugated hose
|
|
| 46. |
VOE4786855
|
[2] |
Nozzle
|
|
| 47. |
VOE1211599
|
[1] |
Clip
|
|
| 48. |
VOE11005773
|
[2] |
Elbow
|
|
| 49. |
VOE4770491
|
[4] |
Spring
|
|
| 50. |
VOE942184
|
[0006] |
Blind rivet
|
|
| 51. |
VOE1211599
|
[0002] |
Clip
|
|
| 52. |
VOE4945757
|
[0001] |
Control wire
|
|
| 53. |
VOE4770489
|
[0001] |
Control wire
|
|
| 54. |
VOE676522
|
[0001] |
Spring washer
|
|
| 55. |
VOE943407
|
[0001] |
Retainer
|
|
| 56. |
VOE942184
|
[0006] |
Blind rivet
|
|
