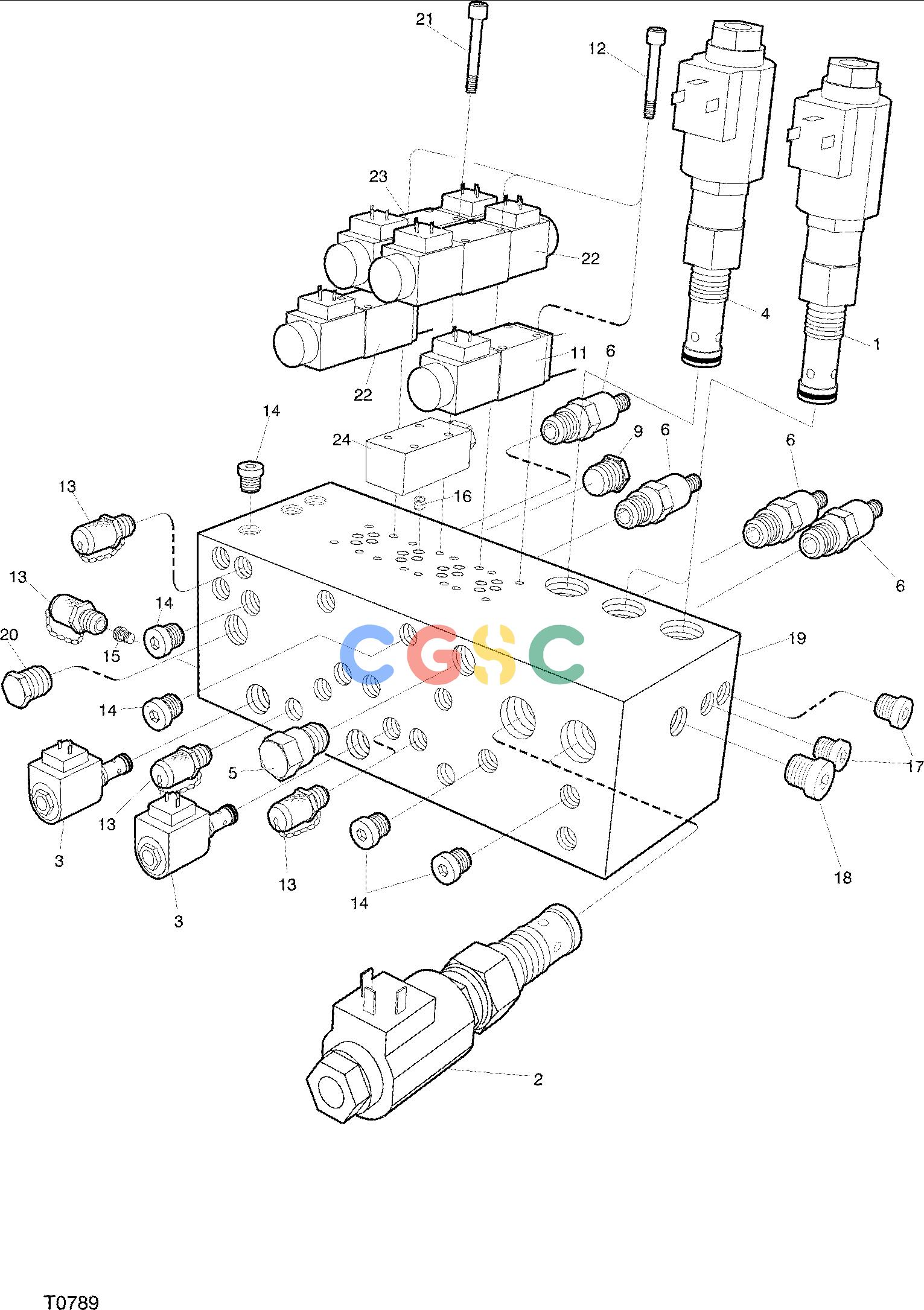

约翰迪尔零件查询732B ATT - ATTACHMENTS ENGINE VALVE ASSY F042686 11 10 T0789 [T0789]EPC John Deere online
广数供应链运营团队, 14 02月, 2025，浏览：
472 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
F053323
|
[1] |
HYDRAULIC VALVE
|
|
| 1. |
F045537
|
[2] |
Valve
|
|
| |
F045559
|
[2] |
Seal Kit
|
|
| |
F045558
|
[2] |
MAGNET COIL
|
|
| 2. |
F045538
|
[2] |
Valve
|
|
| |
F045559
|
[2] |
Seal Kit
|
|
| |
F045558
|
[2] |
MAGNET COIL
|
|
| 3. |
F046797
|
[2] |
Relief Valve
|
|
| |
F053327
|
[2] |
Seal Kit
|
|
| |
F047035
|
[2] |
Solenoid
|
|
| |
F045547
|
[2] |
Nut
|
|
| 4. |
F046795
|
[1] |
Valve
|
|
| |
F045559
|
[1] |
Seal Kit
|
|
| |
F045558
|
[1] |
MAGNET COIL
|
|
| 5. |
F049992
|
[1] |
Plug
|
|
| 6. |
F046796
|
[4] |
PRESSURE REDUCING VALVE
|
|
| |
F045563
|
[4] |
Seal Kit
|
|
| 9. |
F045550
|
[1] |
Check Valve
|
|
| 11. |
F045541
|
[1] |
Control Valve
|
|
| |
F045560
|
[1] |
Seal Kit
|
|
| |
F053328
|
[1] |
MAGNET COIL
|
|
| 12. |
F045542
|
[3] |
BOLT SET
|
|
| 13. |
F004419
|
[5] |
MEASURING NIPPLE
|
|
| 14. |
F018111
|
[5] |
Plug
|
|
| 15. |
F046800
|
[1] |
THROTTLE
|
|
| 16. |
F045553
|
[1] |
THROTTLE
|
|
| 17. |
F018112
|
[6] |
Plug
|
|
| 18. |
F005570
|
[1] |
Plug
|
|
| 19. |
F045551
|
[1] |
HYDRAULIC VALVE
|
|
| 20. |
F045549
|
[1] |
Check Valve
|
|
| 21. |
F046799
|
[1] |
BOLT SET
|
|
| 22. |
F045544
|
[2] |
Control Valve
|
|
| |
F045560
|
[2] |
Seal Kit
|
|
| |
F053328
|
[2] |
MAGNET COIL
|
|
| 23. |
F045548
|
[1] |
Control Valve
|
|
| |
F045560
|
[1] |
Seal Kit
|
|
| |
F053328
|
[1] |
MAGNET COIL
|
|
| 24. |
F049993
|
[1] |
Valve
|
|
