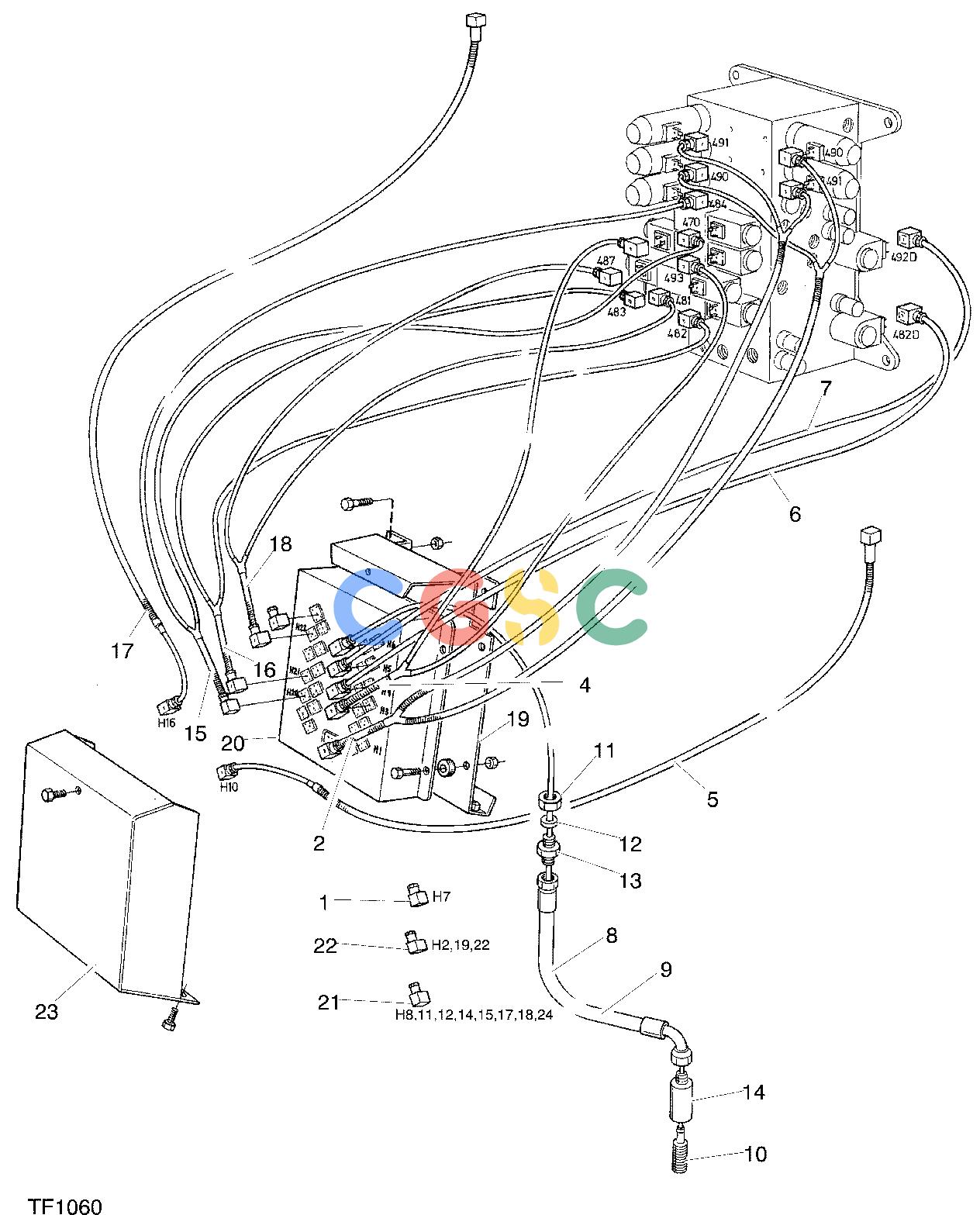

约翰迪尔零件查询732B ATT - ATTACHMENTS ENGINE TJ 3000 F042686 11 30 TF1060 [TF1060]EPC John Deere online
广数供应链运营团队, 14 02月, 2025，浏览：
308 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
F021470
|
[1] |
Plug
|
|
| 2. |
F046974
|
[1] |
CABLE HARNESS
|
|
| 3. |
F046987
|
[1] |
MEASURING ROLL
|
|
| 4. |
F046975
|
[1] |
CABLE HARNESS
|
|
| 5. |
F046983
|
[1] |
CABLE HARNESS
|
|
| 6. |
F046977
|
[1] |
CABLE HARNESS
|
|
| 7. |
F046978
|
[1] |
CABLE HARNESS
|
|
| 8. |
F046972
|
[1] |
CABLE HARNESS
|
|
| 9. |
F047257
|
[1] |
HOSE-ASSY
|
|
| 10. |
F033304
|
[1] |
Sensor
|
|
| 11. |
F022415
|
[1] |
COUPLING NUT
|
|
| 12. |
F028802
|
[1] |
CONDUIT ENTRY
|
|
| 13. |
F024601
|
[1] |
NIPPLE
|
|
| 14. |
F044178
|
[1] |
Holder
|
|
| 15. |
F046982
|
[1] |
CABLE HARNESS
|
|
| 16. |
F046973
|
[1] |
CABLE HARNESS
|
|
| 17. |
F046984
|
[1] |
CABLE HARNESS
|
|
| 18. |
F046976
|
[1] |
CABLE HARNESS
|
|
| 19. |
F046880
|
[1] |
FASTENING PLATE
|
|
| 20. |
F043395
|
[1] |
ELECTRICAL BOX
|
|
| 21. |
F042075
|
[9] |
BLIND CAP
|
|
| 22. |
F042073
|
[3] |
BLIND CAP
|
|
| 23. |
F046882
|
[1] |
Case
|
|
