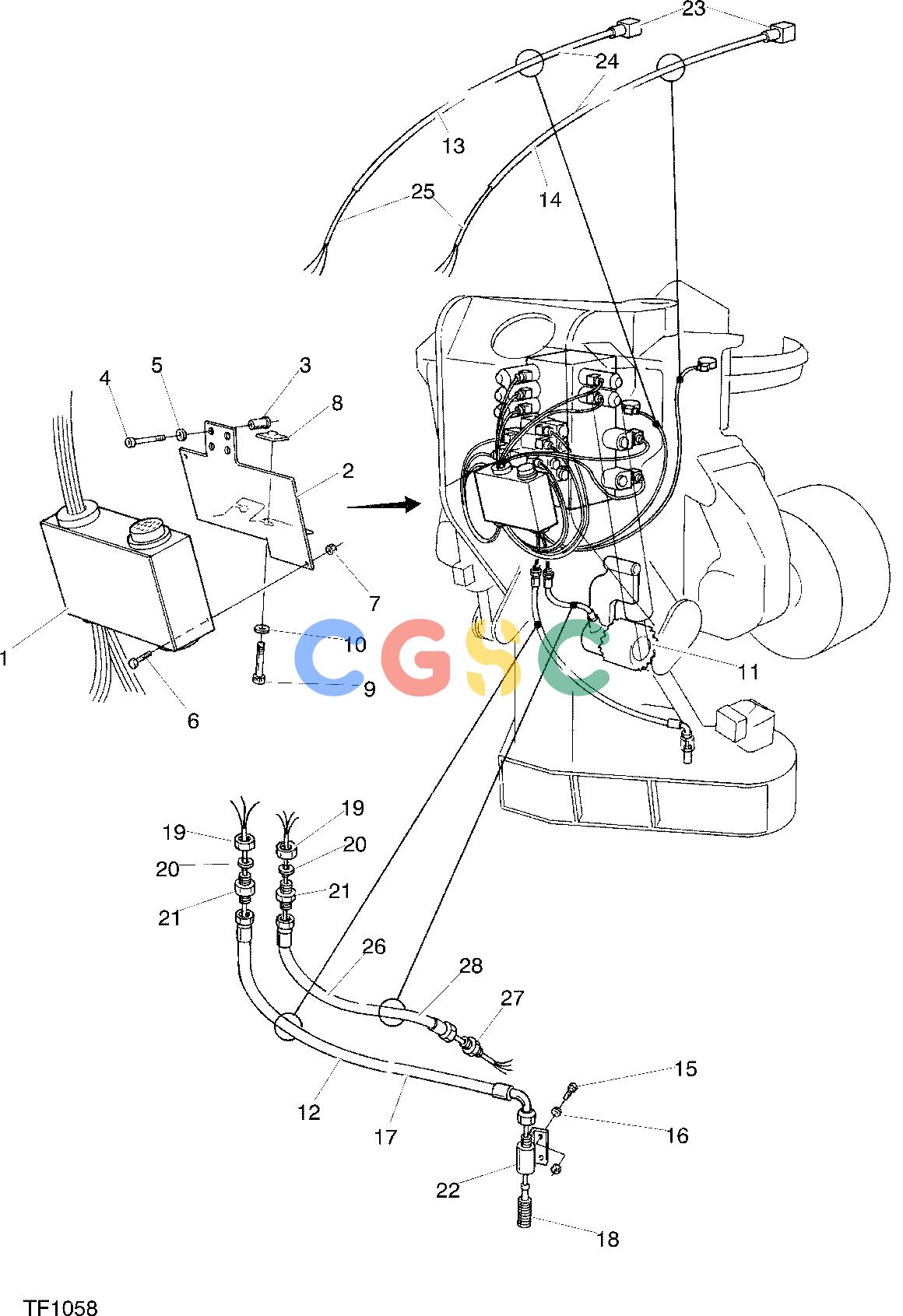

约翰迪尔零件查询732B ATT - ATTACHMENTS ENGINE ELECTRICAL MOUNTING F042686 11 26 TF1058 [TF1058]EPC John Deere online
广数供应链运营团队, 14 02月, 2025，浏览：
652 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
F046074
|
[1] |
ELECTRICAL BOX
|
|
| |
F046072
|
[1] |
ELECTRICAL BOX
|
|
| |
F035038
|
[14] |
Cable
|
|
| 2. |
F045964
|
[1] |
FASTENING PLATE
|
|
| 3. |
F048135
|
[4] |
Spacer
|
|
| 4. |
F010916
|
[4] |
Screw
|
|
| 5. |
F010721
|
[4] |
Washer
|
|
| 6. |
F001624
|
[2] |
Screw
|
|
| 7. |
F003584
|
[2] |
Lock Nut
|
|
| 8. |
F015301
|
[1] |
Holder
|
|
| 9. |
F003468
|
[1] |
Screw
|
|
| 10. |
F010718
|
[1] |
Washer
|
|
| 11. |
F046931
|
[1] |
MEASURING ROLL
|
|
| 12. |
F046077
|
[1] |
CABLE HARNESS
|
|
| 13. |
F046827
|
[1] |
CABLE HARNESS
|
|
| 14. |
F046833
|
[1] |
CABLE HARNESS
|
|
| 15. |
F015142
|
[2] |
Screw
|
|
| 16. |
F026121
|
[1] |
Washer
|
|
| 17. |
F047257
|
[1] |
HOSE-ASSY
|
|
| 18. |
F033304
|
[1] |
Sensor
|
|
| 19. |
F022415
|
[2] |
COUPLING NUT
|
|
| 20. |
F028802
|
[2] |
CONDUIT ENTRY
|
|
| 21. |
F024601
|
[2] |
NIPPLE
|
|
| 22. |
F044178
|
[1] |
Holder
|
|
| 23. |
F024583
|
[1] |
Connector
|
|
| 24. |
F014942
|
[1] |
PROTECTION TUBE
|
|
| 25. |
F049018
|
[1] |
Cable
|
|
| 26. |
F046076
|
[1] |
CABLE HARNESS
|
|
| 27. |
F005055
|
[1] |
NIPPLE
|
|
| 28. |
F045453
|
[1] |
HOSE-ASSY
|
|
