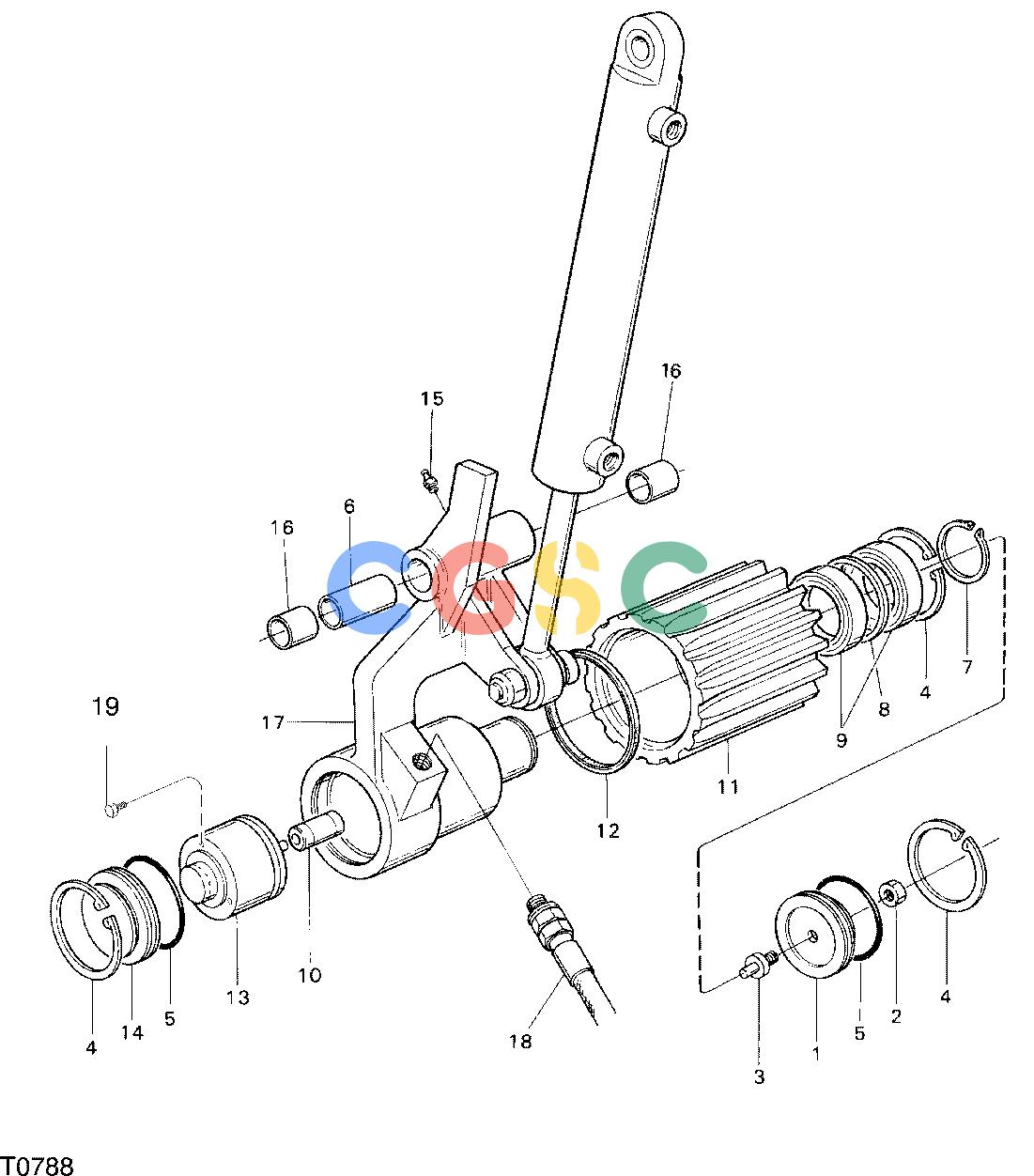

约翰迪尔零件查询732B ATT - ATTACHMENTS ENGINE MEASURING WHEEL F042686 11 32 T0788 [T0788]EPC John Deere online
广数供应链运营团队, 14 02月, 2025，浏览：
260 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
F046931
|
[1] |
MEASURING ROLL
|
|
| |
F046987
|
[1] |
MEASURING ROLL
|
|
| 1. |
F018214
|
[1] |
Cap
|
|
| 2. |
F041006
|
[1] |
Nut
|
|
| 2. |
F003563
|
[1] |
Nut
|
|
| 3. |
F018215
|
[1] |
Shaft
|
|
| 4. |
F015955
|
[3] |
CIRCLIP
|
|
| 5. |
F004710
|
[2] |
O-Ring
|
|
| 6. |
F019866
|
[1] |
Spacer
|
|
| 7. |
F003358
|
[1] |
CIRCLIP
|
|
| 8. |
F015957
|
[1] |
Spacer
|
|
| 9. |
F015956
|
[2] |
Ball Bearing
|
|
| 10. |
F020724
|
[1] |
SHAFT COUPLING
|
|
| 11. |
F015958
|
[1] |
MEASURING ROLL
|
|
| 12. |
F015953
|
[1] |
SEAL RING
|
|
| 13. |
F045844
|
[1] |
LENGTH SENSOR
|
|
| 14. |
F018202
|
[1] |
Cap
|
|
| 15. |
F023581
|
[1] |
GREASE NIPPLE
|
|
| 15. |
F012745
|
[1] |
GREASE NIPPLE
|
|
| 16. |
F049331
|
[2] |
BEARING BUSHING
|
|
| 17. |
F018724
|
[1] |
Arm
|
|
| 18. |
F046076
|
[1] |
CABLE HARNESS
|
|
| 18. |
F046985
|
[1] |
CABLE HARNESS
|
|
| 19. |
F012791
|
[3] |
Screw
|
|
