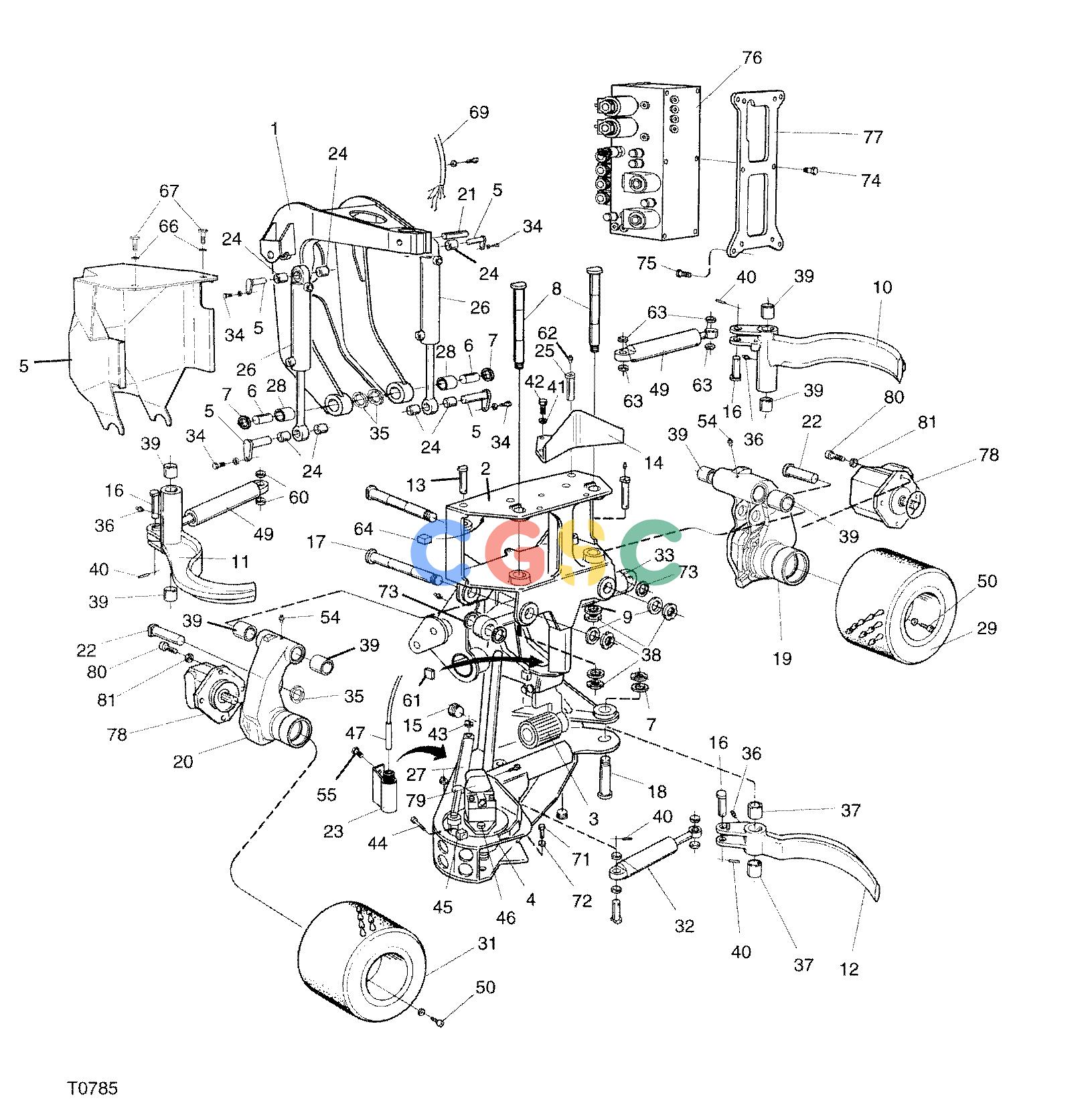

约翰迪尔零件查询732B ATT - ATTACHMENTS ENGINE HARVESTER HEAD 732B F042686 11 2 T0785 [T0785]EPC John Deere online
广数供应链运营团队, 14 02月, 2025，浏览：
487 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
F044284
|
[1] |
LINK ASSY
|
|
| 2. |
F041300
|
[1] |
LEG ASSY
|
|
| 3. |
F018213
|
[1] |
MEASURING ROLL
|
|
| 4. |
F005616
|
[1] |
Saw Unit
|
|
| 5. |
F041941
|
[4] |
SHAFT ASSY
|
|
| 6. |
F041938
|
[2] |
Shaft
|
|
| 7. |
F018240
|
[2] |
Spacer
|
|
| 8. |
F018238
|
[2] |
Shaft
|
|
| 9. |
F018239
|
[4] |
Spacer
|
|
| 10. |
F017844
|
[1] |
DELIMBING KNIFE
|
|
| 11. |
F017837
|
[1] |
DELIMBING TOOL
|
|
| 12. |
F018058
|
[1] |
Holder
|
|
| 13. |
F018228
|
[2] |
Pin
|
|
| 14. |
F018050
|
[1] |
DELIMBING KNIFE
|
|
| 15. |
F021332
|
[1] |
REFILLING COVER
|
|
| 16. |
F018229
|
[3] |
Pin
|
|
| 17. |
F018237
|
[2] |
Shaft
|
|
| 18. |
F018225
|
[1] |
Shaft
|
|
| 19. |
F019281
|
[1] |
WHEEL MOUNTING
|
|
| 20. |
F019282
|
[1] |
WHEEL MOUNTING
|
|
| 21. |
F018236
|
[1] |
Shaft
|
|
| 22. |
F019280
|
[2] |
Pin
|
|
| 23. |
F044178
|
[1] |
Holder
|
|
| 24. |
F011186
|
[8] |
Sleeve
|
|
| 25. |
F019942
|
[1] |
Pin
|
|
| 26. |
F026294
|
[2] |
Cylinder
|
|
| 27. |
F018292
|
[1] |
Hydraulic Cylinder
|
|
| 28. |
F043120
|
[2] |
SLIDE BEARING
|
|
| 29. |
F022514
|
[1] |
FEED WHEEL
|
|
| 30. |
F005553
|
[1] |
Hydraulic Cylinder
|
|
| 31. |
F022513
|
[1] |
FEED WHEEL
|
|
| 32. |
F018294
|
[1] |
Hydraulic Cylinder
|
|
| 33. |
F045288
|
[1] |
Hydraulic Cylinder
|
|
| 34. |
F003531
|
[6] |
Screw
|
|
| 35. |
F019245
|
[5] |
Lock Nut
|
|
| 36. |
F005626
|
[3] |
GREASE NIPPLE
|
|
| 37. |
F043118
|
[4] |
SLIDE BEARING
|
|
| 38. |
F019244
|
[4] |
Lock Nut
|
|
| 39. |
F043119
|
[8] |
SLIDE BEARING
|
|
| 40. |
F016361
|
[9] |
Spring Pin
|
|
| 41. |
F005012
|
[3] |
Lock Washer
|
|
| 42. |
F003548
|
[3] |
Screw
|
|
| 43. |
F003357
|
[2] |
CIRCLIP
|
|
| 44. |
F011199
|
[1] |
Screw
|
|
| 45. |
F003564
|
[1] |
Nut
|
|
| 46. |
F003532
|
[4] |
Screw
|
|
| 47. |
F028637
|
[1] |
CABLE HARNESS
|
|
| 48. |
F003588
|
[2] |
Lock Nut
|
|
| 49. |
F045289
|
[2] |
Hydraulic Cylinder
|
|
| |
F054648
|
[1] |
Seal Kit
|
|
| 50. |
F003418
|
[20] |
Screw
|
|
| 51. |
F012794
|
[2] |
Bolt
|
|
| 52. |
F015969
|
[1] |
SWORD
|
|
| 53. |
F015968
|
[1] |
Saw Chain
|
|
| 54. |
F012745
|
[2] |
GREASE NIPPLE
|
|
| 55. |
F012851
|
[2] |
Screw
|
|
| 56. |
F003425
|
[8] |
Screw
|
|
| 57. |
F002805
|
[8] |
Lock Washer
|
|
| 58. |
F020779
|
[2] |
O-Ring
|
|
| 59. |
F018230
|
[1] |
Shaft
|
|
| 60. |
F019921
|
[4] |
Spacer
|
|
| 61. |
F019926
|
[1] |
HEAD
|
|
| 62. |
F003727
|
[3] |
GREASE NIPPLE
|
|
| 63. |
F019886
|
[12] |
Spacer
|
|
| 64. |
F019947
|
[2] |
HEAD
|
|
| 65. |
F044313
|
[1] |
Case
|
|
| 66. |
F003337
|
[2] |
Washer
|
|
| 67. |
F003517
|
[2] |
Screw
|
|
| 68. |
F023581
|
[3] |
GREASE NIPPLE
|
|
| 69. |
F019756
|
[1] |
CABLE HARNESS
|
|
| 71. |
F003524
|
[3] |
Screw
|
|
| 72. |
F008262
|
[24] |
Lock Washer
|
|
| 73. |
F019279
|
[2] |
SPACER RING
|
|
| 74. |
F003539
|
[2] |
Screw
|
|
| 75. |
F003531
|
[4] |
Screw
|
|
| 76. |
F040302
|
[1] |
HYDRAULIC VALVE
|
|
| 77. |
F044161
|
[1] |
FASTENING PLATE
|
|
| 78. |
F040301
|
[2] |
Hydraulic Motor
|
|
| 79. |
F005616
|
[1] |
Hydraulic Motor
|
|
| 80. |
F003425
|
[8] |
Screw
|
|
| 81. |
F002805
|
[8] |
Lock Washer
|
|
