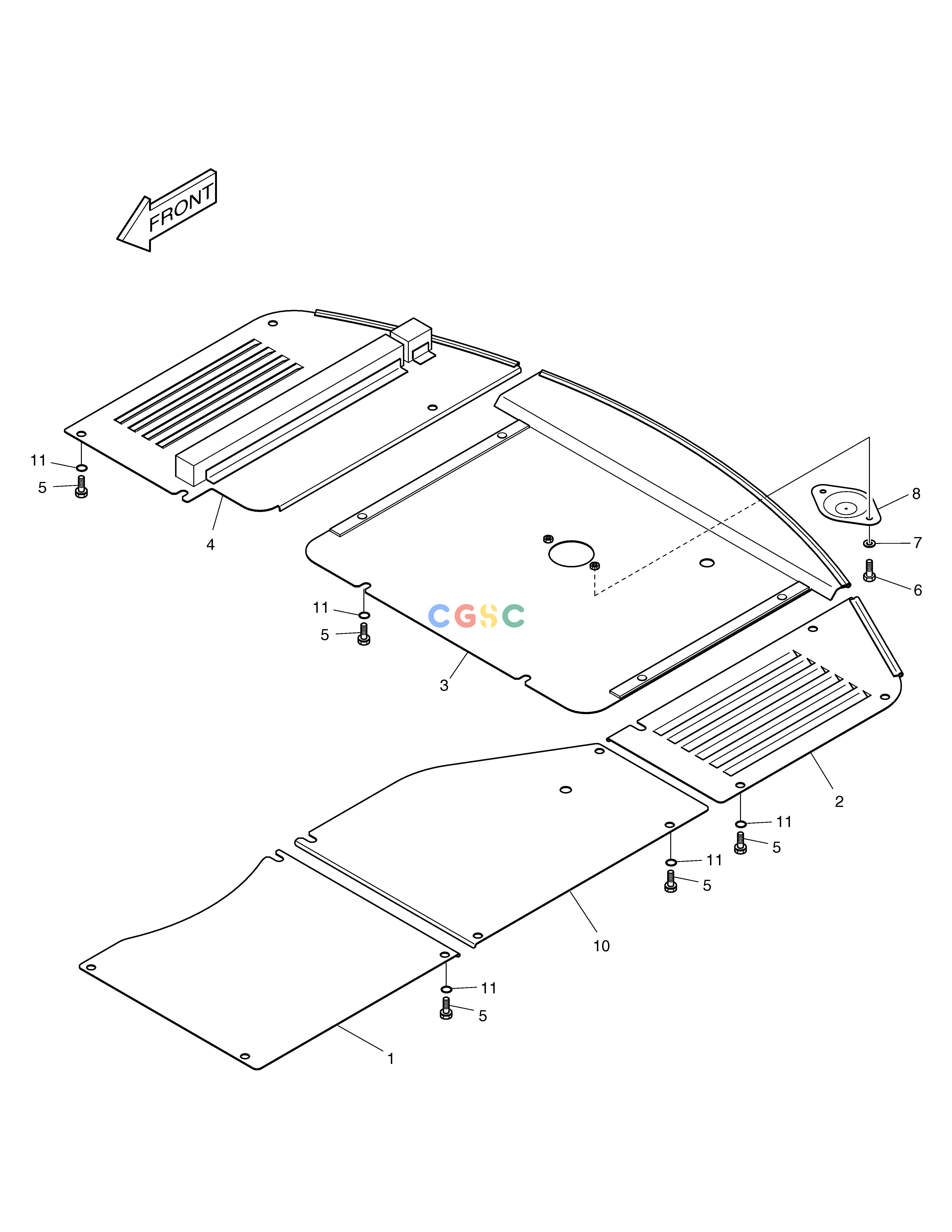

斗山零件查询UNDER COVER B55W-1 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
256 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
621-02290
|
[-] |
UNDER COVER ASS'Y
|
|
| -. |
621-02290A
|
[-] |
UNDER COVER ASS'Y
|
|
| 1. |
621G02281
|
[1] |
COVER;UNDER
|
|
| 1. |
621G02281A
|
[1] |
COVER;UNDER
|
|
| 10. |
621G02289
|
[1] |
COVER;UNDER
|
|
| 10. |
621G02289A
|
[1] |
COVER;UNDER
|
|
| 11. |
2114-1058D10
|
[22] |
WASHER
|
|
| 2. |
621G02282
|
[1] |
COVER;UNDER
|
|
| 2. |
621G02282A
|
[1] |
COVER;UNDER
|
|
| 3. |
621G01156C
|
[1] |
COVER
|
|
| 3. |
621G01156E
|
[1] |
COVER
|
|
| 4. |
621G02283
|
[1] |
COVER;UNDER
|
|
| 4. |
621G02283A
|
[1] |
COVER;UNDER
|
621G02283B
|
| 4. |
621G02283B
|
[1] |
COVER;UNDER
|
|
| 5. |
2120-2196D13
|
[22] |
BOLT;SET M10X1.5X25
|
|
| 6. |
S0508553
|
[2] |
BOLT
|
|
| 7. |
S5010513
|
[2] |
WASHER
|
|
| 8. |
621G01447A
|
[1] |
COVER
|
|
| 8. |
621G01447B
|
[1] |
COVER
|
|
