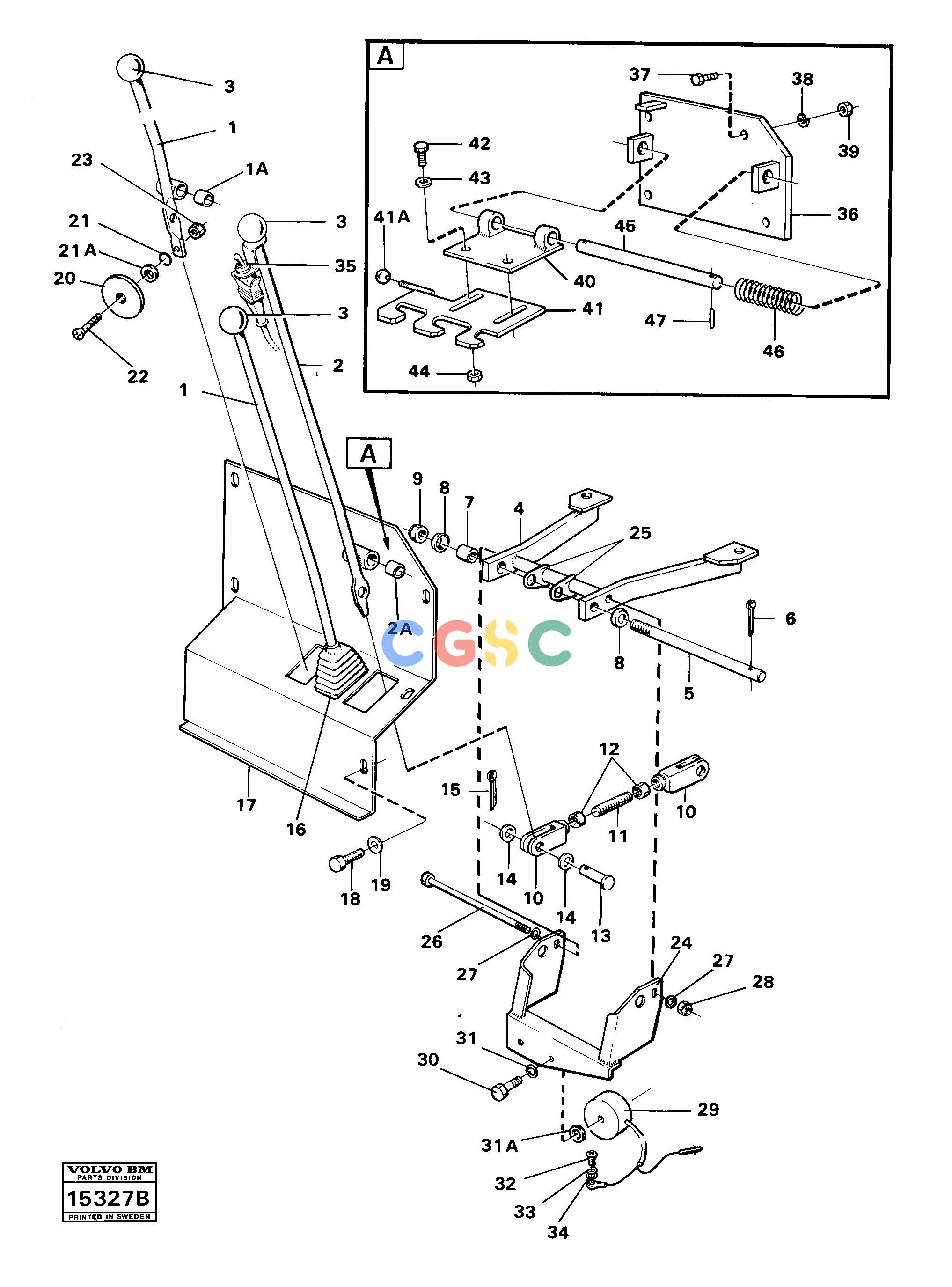

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 5. |
VOE4927999
|
[0001] |
Shaft
|
|
| 45. |
VOE4928621
|
[0001] |
Shaft
|
|
| 46. |
VOE400607
|
[0001] |
Spring
|
|
| 47. |
VOE13951944
|
[0002] |
Spring pin
|
|
| 6. |
VOE907864
|
[0001] |
Split pin
|
|
| 7. |
VOE4927997
|
[0001] |
Sleeve
|
|
| 8. |
VOE961384
|
[0002] |
Disc spring
|
|
| 9. |
VOE13971090
|
[0001] |
Lock nut
|
|
| 1. |
VOE4854314
|
[0002] |
Control lever
|
|
| 10. |
VOE928944
|
[0006] |
Fork
|
|
| 11. |
VOE954013
|
[0003] |
Pull Rod
|
CH -1812
|
| |
VOE954011
|
[0003] |
Control rod
|
CH 1813 -
|
| 12. |
VOE940140
|
[0006] |
Hexagon nut
|
|
| 1A. |
VOE943120
|
[0004] |
Bushing
|
|
| 13. |
VOE13964858
|
[0006] |
Clevis pin
|
|
| 14. |
VOE976945
|
[0006] |
Washer
|
|
| 15. |
VOE907845
|
[0006] |
Split pin
|
|
| 16. |
VOE4740480
|
[0003] |
Seal
|
|
| 17. |
VOE4850399
|
[0001] |
Casing
|
|
| 18. |
VOE13955271
|
[0007] |
Screw
|
|
| 19. |
VOE60110304
|
[0007] |
Washer
|
|
| 2. |
VOE4927528
|
[0001] |
Control lever
|
|
| 20. |
VOE4824294
|
|
Mgn Armature
|
|
| 21. |
VOE13955971
|
|
O-ring
|
|
| 21A. |
VOE13960138
|
[0002] |
Washer
|
SER NO 3248-
|
| 22. |
VOE956189
|
|
Cross recessed sunk screw
|
|
| 2A. |
VOE943120
|
[0002] |
Bushing
|
|
| 23. |
VOE13963104
|
|
Lock nut
|
|
| 24. |
VOE4928194
|
[0001] |
Solenoid retainer
|
|
| 25. |
VOE4928157
|
[0002] |
Slide plate
|
|
| 26. |
VOE13970990
|
[0001] |
Hexagon screw
|
|
| 3. |
VOE949094
|
[0003] |
Ball
|
|
| 27. |
VOE60110353
|
[0002] |
Washer
|
|
| 28. |
VOE13971090
|
[0001] |
Lock nut
|
|
| 29. |
VOE4880355
|
|
Solenoid
|
|
| 30. |
VOE940199
|
|
Hexagon screw
|
|
| 31. |
VOE13941907
|
|
Washer
|
|
| 31A. |
VOE13960141
|
[0002] |
Washer
|
SER NO 3248-
|
| 32. |
VOE955268
|
|
Hexagon screw
|
|
| 33. |
VOE955892
|
|
Plain washer
|
|
| 34. |
VOE955948
|
|
Toothed washer
|
|
| 35. |
|
[0001] |
Switch
|
|
| 36. |
|
[0001] |
Mounting plate
|
|
| 37. |
VOE13955271
|
[0004] |
Screw
|
SER NO -2116
|
| 4. |
VOE4850705
|
[0001] |
Lever mounting
|
|
| |
VOE955269
|
[0004] |
Hexagon screw
|
|
| |
|
|
None
|
SER NO 2117-
|
| 38. |
VOE13941906
|
[0004] |
Washer
|
SER NO 2117-
|
| 39. |
VOE13955781
|
[0004] |
Nut
|
|
| 40. |
VOE4928622
|
[0001] |
Slide Plate
|
|
| 41. |
VOE4928618
|
[0001] |
Plate
|
TILLV NR-2116
|
| |
VOE4929255
|
[0001] |
Plate
|
|
| |
|
|
None
|
SER NO 2117-
|
| 41A. |
VOE940344
|
[0001] |
Handle ball
|
|
| |
|
|
None
|
SER NO 2117-
|
| 42. |
VOE955269
|
[0002] |
Hexagon screw
|
|
| 43. |
VOE955892
|
[0002] |
Plain washer
|
|
| 44. |
VOE13955781
|
[0002] |
Nut
|
|
