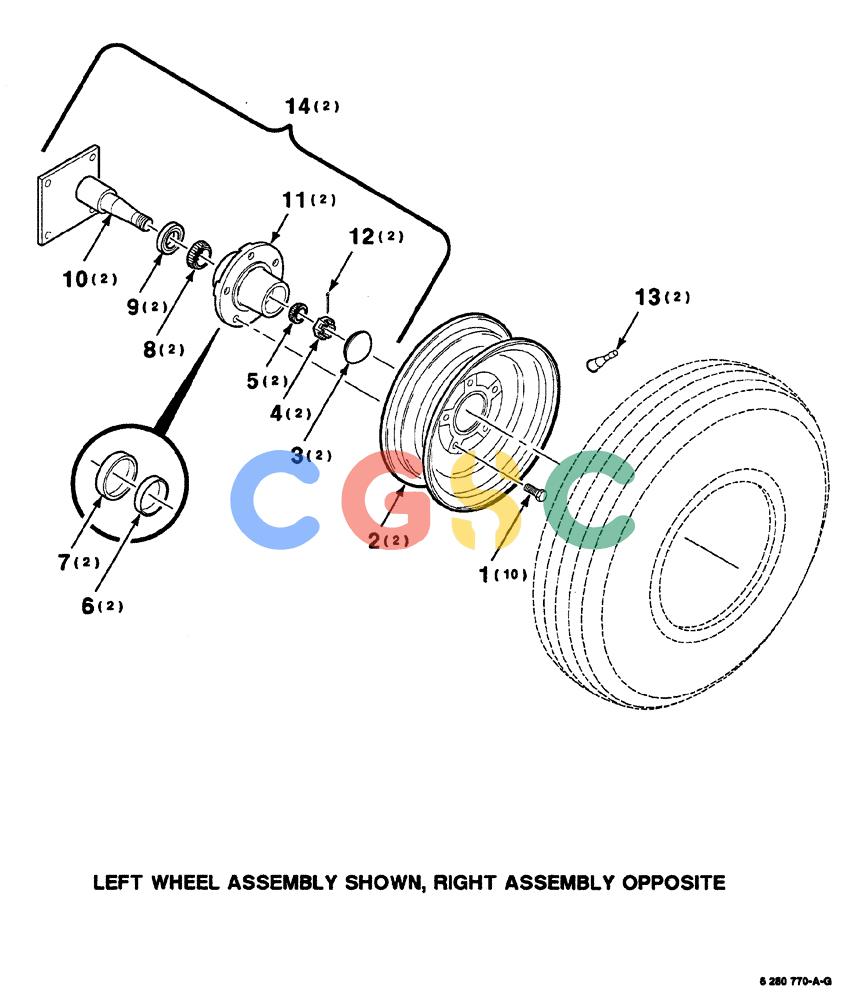

凯斯零件查询(8420) - CASE IH ROUND BALER (1/88-12/00) (07-20) - WHEEL AND HUB ASSEMBLY Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
327 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
T52730
|
[10] |
WHEEL BOLT
|
IH
wheel, 9/16"-18 x 1-1/8" Superseded by part number: 86628557
|
| 2. |
700707956
|
[2] |
WHEEL
|
L
15" x 6"
|
| 3. |
T27814
|
[2] |
CAP
|
CAS
hub Superseded by part number: 200734
|
| 4. |
704346
|
[2] |
BRACKET
|
IH
slotted hex jam, 1"-14 Superseded by part number: 129-270, 129-270, NLS
|
| 5. |
E13994
|
[2] |
BEARING,25.4mm ID
|
CAS
CONE outer
|
| 6. |
50104
|
[2] |
BEARING CUP,50.01mm OD
|
CAS
CUP outer
|
| 7. |
618024R1
|
[2] |
BEARING CUP,65.113mm OD x 13.97mm W
|
IH
Inner Superseded by part number: 86516467
|
| 8. |
618023R91
|
[2] |
BEARING ASSY,34.93mm ID x 18.2mm W
|
IH
inner
|
| 9. |
844571
|
[2] |
SEAL
|
L
grease Superseded by part number: 678620
|
| 10. |
6280804
|
[2] |
SPINDLE
|
L
WA
|
| 11. |
6280788
|
[2] |
HUB
|
L
ASSY., Includes: Ref. 6 and 7
|
| 12. |
432-824
|
[2] |
COTTER PIN,1/8" x 1 1/2"
|
CAS
Superseded by part number: 80708
|
| 13. |
A38261
|
[2] |
VALVE
|
CAS
STEM Superseded by part number: 196033
|
| 14. |
6280770
|
[2] |
HUB
|
HFI
SPINDLE ASSY., Includes: Ref. 3 thru 12
|
