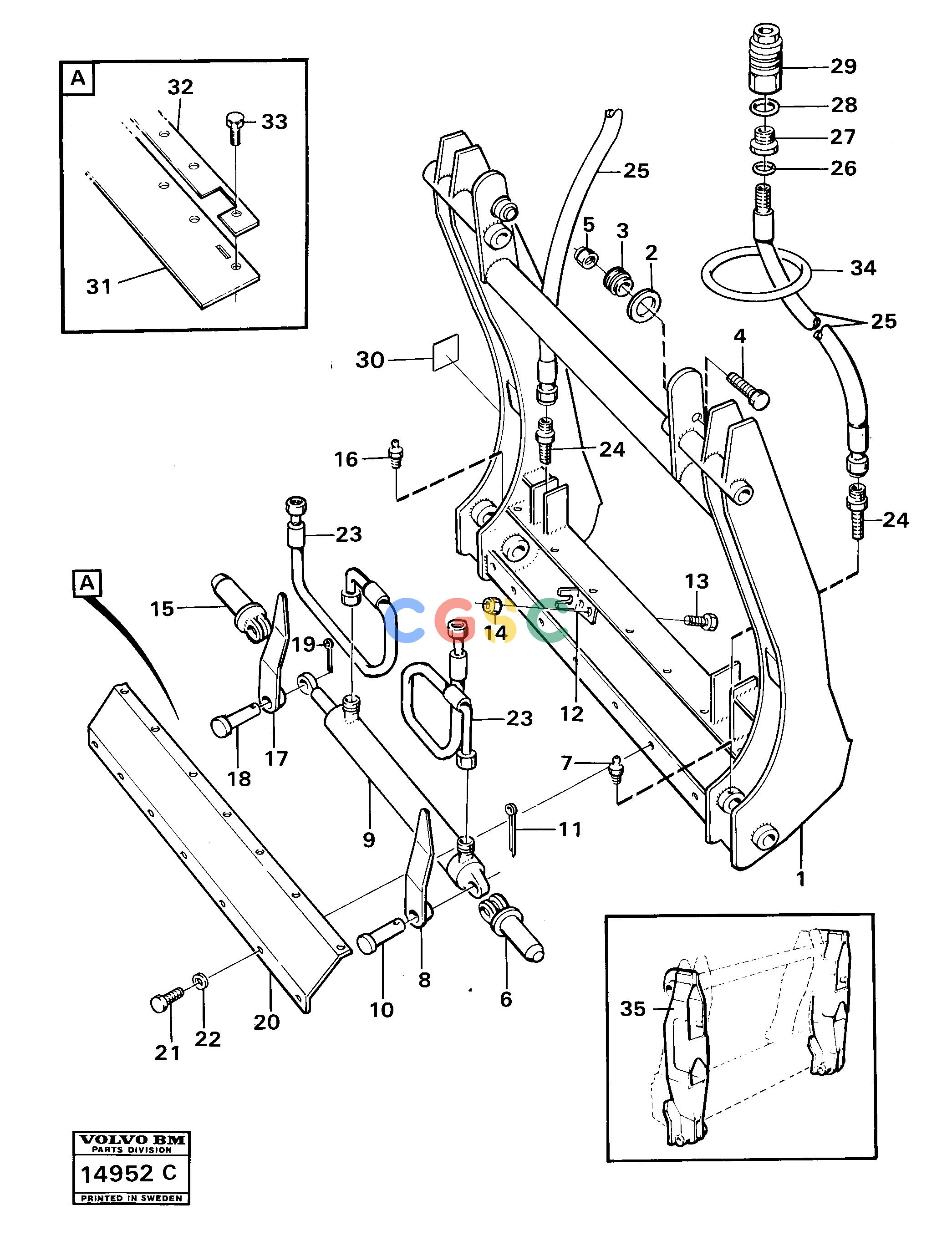

沃尔沃零件查询4300 Hydraulic attachment bracket 978294300 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
354 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
VOE4805100
|
|
Attachment bracket
|
SAF
|
| |
VOE4805100
|
|
Attachment bracket
|
|
| 1. |
|
[0001] |
Frame
|
|
| 2. |
VOE4885043
|
[0001] |
Washer
|
|
| 3. |
VOE4885042
|
[0002] |
Plug
|
|
| 4. |
VOE940132
|
[0002] |
Hexagon screw
|
|
| 5. |
VOE963106
|
[2] |
Lock nut
|
|
| 6. |
VOE4741314
|
[1] |
Pin
|
|
| 7. |
VOE951739
|
[1] |
Lubricating nipple
|
|
| 8. |
VOE11012725
|
[1] |
Indication arm
|
|
| 9. |
VOE11157115
|
[1] |
Hydraulic cylinder
|
|
| 10. |
VOE952771
|
[1] |
Clevis pin
|
|
| 11. |
VOE13907860
|
[1] |
Cotter Pin
|
|
| 12. |
VOE11011654
|
[0001] |
Stop
|
|
| 13. |
VOE13970972
|
[0002] |
Hexagon screw
|
|
| 14. |
VOE13971090
|
[0002] |
Lock nut
|
|
| 15. |
VOE4741314
|
[0001] |
Pin
|
|
| 16. |
VOE951739
|
[0001] |
Lubricating nipple
|
|
| 17. |
VOE4741392
|
[0001] |
Arm
|
|
| 18. |
VOE952771
|
[0001] |
Clevis pin
|
|
| 19. |
VOE13907860
|
[0001] |
Cotter Pin
|
|
| 20. |
VOE4739025
|
[0001] |
Protection
|
|
| 21. |
VOE13973071
|
[0009] |
Hexagon screw
|
|
| 22. |
VOE13960142
|
[0009] |
Washer
|
|
| 23. |
VOE932282
|
[0002] |
Hose assembly
|
|
| 24. |
VOE4741736
|
[0002] |
Nipple
|
|
| 25. |
VOE13932732
|
[0002] |
Hose assembly
|
|
| 26. |
VOE958226
|
[0002] |
O-ring
|
|
| 27. |
VOE963800
|
[0002] |
Nipple
|
|
| 28. |
VOE14013070
|
[0002] |
Sealing washer
|
|
| 29. |
VOE4786201
|
[0002] |
Snap-on coupling
|
|
| |
VOE927286
|
[0001] |
O-ring
|
D=30,2
|
| |
VOE925064
|
[0001] |
O-ring
|
D=32,2
|
| 30. |
VOE4807524
|
[0001] |
Sign
|
|
| 31. |
VOE4806634
|
[0001] |
Protection
|
|
| 32. |
|
[0001] |
Mounting plate
|
|
| 33. |
VOE13970948
|
[0007] |
Hexagon screw
|
|
| 34. |
VOE4850583
|
[0001] |
O-ring
|
|
| 35. |
|
[2] |
Adapter
|
|
