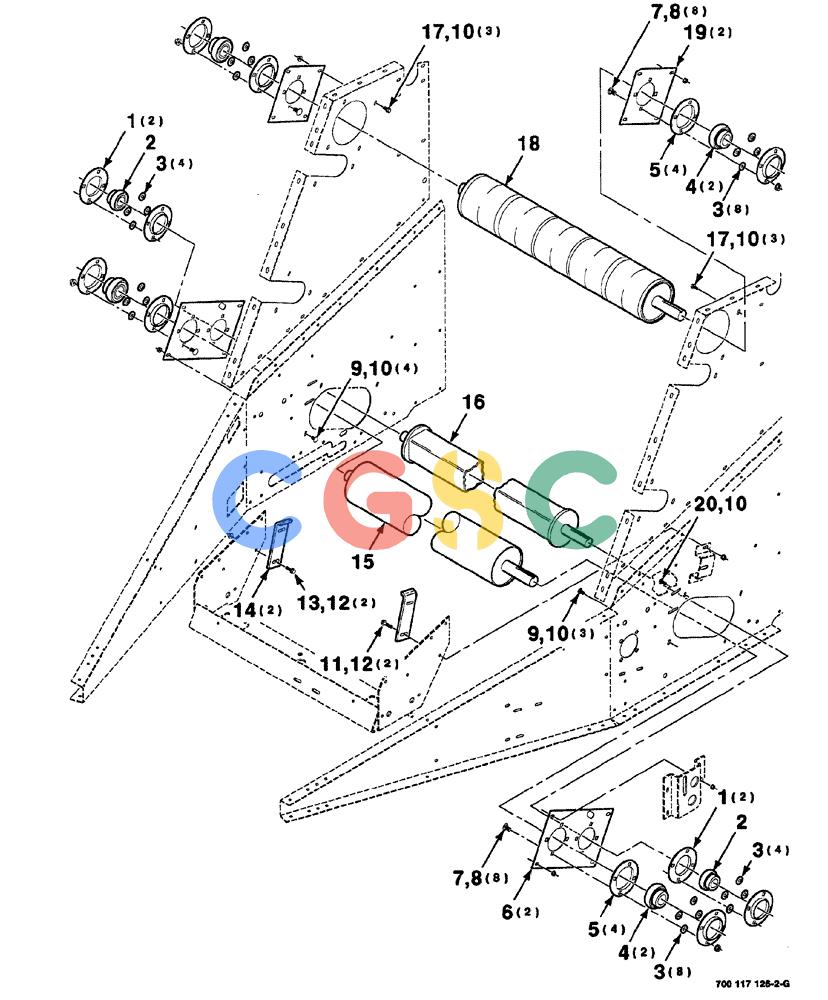

| 1. |
663562R1
|
[4] |
FLANGE
|
IH
bearing
|
| 2. |
50468
|
[2] |
SPHERICAL BEARING,38.1 mm ID x 80 mm OD x 22, 43.66 mm
|
IH
spherical
|
| 3. |
7852213
|
[24] |
SHIM
|
HFI
|
| 4. |
51318
|
[4] |
BEARING
|
IH
spherical Superseded by part number: 668718R92, 47577169
|
| 5. |
50583
|
[8] |
FLANGED BEARING
|
IH
bearing Superseded by part number: 86979948
|
| 6. |
700101737
|
[2] |
PLATE
|
HFI
MOUNT bearing, lower
|
| 7. |
433-816
|
[16] |
CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1", Gr 5
|
CAS
BOLT round head square neck, 1/2"-13 x 1" Superseded by part number: 280486
|
| 8. |
231-5148
|
[16] |
FLANGE NUT,Flg, USR, 1/2"-13
|
CAS
Superseded by part number: 72187069, 86512371
|
| 9. |
433-612
|
[7] |
CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5
|
CAS
Superseded by part number: 280430
|
| 10. |
231-5146
|
[14] |
FLANGE NUT,3/8"-16
|
CAS
Superseded by part number: 72187068, 247780
|
| 11. |
700711084
|
[2] |
BOLT
|
CAS
SCREW hex flange, 3/8"-16 x 1-1/2", grade 8
|
| 12. |
232-5316
|
[4] |
FLANGE NUT,Flg, 3/8"-16
|
CAS
lock, hex flange top, 3/8"-16, GR/G Superseded by part number: 86521609
|
| 13. |
121-237
|
[2] |
SERRATED BOLT,Hex, 3/8" - 16 x 1 1/4, Spcl
|
CAS
hex flange, 3/8"-16 x 1-1/4", grade 8 Superseded by part number: 87327172
|
| 14. |
700109052
|
[2] |
STRAP
|
HFI
|
| 15. |
700101689
|
[1] |
CONVEYOR ROLLER
|
HFI
WA
|
| 16. |
700101696
|
[1] |
ROLLER
|
HFI
WA
|
| 17. |
409-7612
|
[6] |
BOLT,3/8"-16 x 1.09" OAL
|
CAS
Superseded by part number: 72187187, 255918
|
| 18. |
700700733
|
[1] |
CONVEYOR ROLLER
|
CAS
rubber
|
| 19. |
700101736
|
[2] |
BOLT
|
HFI
MOUNT bearing, upper
|
| 20. |
434-616
|
[1] |
CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5
|
CAS
Superseded by part number: 80280503
|
