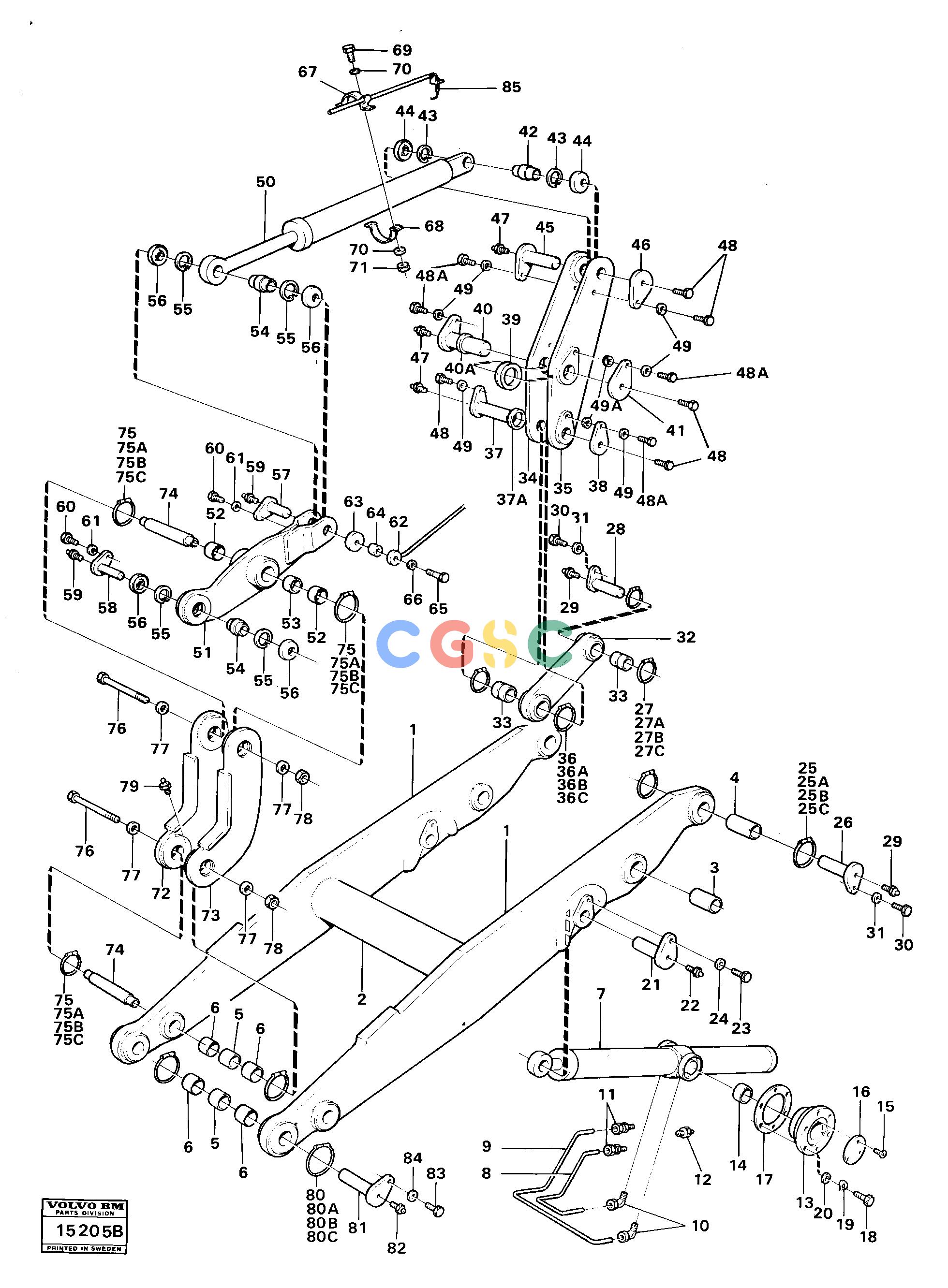

沃尔沃零件查询4300 Lifting unit4300 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
466 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 4. |
VOE4924507
|
[0002] |
Bushing
|
|
| 42. |
VOE6645259
|
[0002] |
Link bearing
|
|
| 43. |
VOE914533
|
[0004] |
Retaining ring
|
|
| 44. |
VOE4782563
|
[0004] |
Link bearing seal
|
|
| 45. |
VOE4926572
|
[0002] |
Pin
|
|
| 46. |
VOE4926337
|
[0002] |
Lock plate
|
|
| 47. |
VOE784323
|
[0006] |
Nipple
|
|
| 48. |
VOE13970969
|
[0010] |
Hexagon screw
|
|
| 48A. |
VOE13970969
|
[0008] |
Hexagon screw
|
L AGGR - 3060
|
| 48A. |
VOE13970972
|
[0008] |
Hexagon screw
|
L AGGR 3061 -
|
| 49. |
VOE60110353
|
[0018] |
Washer
|
|
| 49A. |
VOE4932346
|
[0008] |
Spacer washer
|
L AGGR 3061 -
|
| 50. |
|
[0002] |
Tilt cylinder
|
SEE GROUP 91
|
| 51. |
VOE4932274
|
[0002] |
Link
|
|
| 5. |
VOE4924440
|
[0004] |
Spacer ring
|
|
| 52. |
VOE4850501
|
[0004] |
Bushing
|
|
| 53. |
VOE4924440
|
[0002] |
Spacer ring
|
|
| 54. |
VOE6645259
|
[0004] |
Link bearing
|
|
| 55. |
VOE914533
|
[0008] |
Retaining ring
|
|
| 56. |
VOE4782563
|
[0008] |
Link bearing seal
|
|
| 57. |
VOE4926571
|
[0002] |
Pin
|
|
| 58. |
VOE4926588
|
[0002] |
Pin
|
|
| 59. |
VOE784323
|
[0004] |
Nipple
|
|
| 60. |
VOE13970969
|
[0008] |
Hexagon screw
|
|
| 6. |
VOE4850501
|
[0008] |
Bushing
|
|
| 61. |
VOE60110353
|
[0008] |
Washer
|
|
| 62. |
VOE4928110
|
[0001] |
Indicator
|
|
| 63. |
VOE4763193
|
[0001] |
Washer
|
|
| 64. |
VOE4928109
|
[0001] |
Spacer
|
|
| 65. |
VOE13970974
|
[0001] |
Hexagon screw
|
|
| 66. |
VOE13960145
|
[0001] |
Washer
|
|
| 67. |
VOE4947893
|
[0001] |
Retainer
|
AGGR - 4918
|
| |
VOE4947893
|
[0001] |
Retainer
|
AGGR 4919 -
|
| 68. |
VOE4928094
|
[0001] |
Clamp
|
|
| 69. |
VOE955297
|
[0002] |
Hexagon screw
|
|
| 70. |
VOE13955894
|
[0004] |
Washer
|
|
| 7. |
|
[0002] |
Lifting cylinder
|
SEE GROUP 91
|
| 71. |
VOE955782
|
[0002] |
Hexagon nut
|
|
| 72. |
VOE4947378
|
[0002] |
Link
|
L AGGR - 4579
|
| |
VOE4947378
|
[0002] |
Link
|
L AGGR 4580 -
|
| 73. |
VOE4947379
|
[0002] |
Link
|
L AGGR - 4579
|
| |
VOE4947379
|
[0002] |
Link
|
L AGGR 4580 -
|
| 74. |
VOE4924435
|
[0004] |
Pin
|
|
| 75. |
VOE4824481
|
[0008] |
O-ring
|
|
| 75A. |
VOE955259
|
[0008] |
Hexagon screw
|
|
| 75B. |
VOE13940090
|
[0008] |
Washer
|
|
| 75C. |
VOE13963104
|
[0008] |
Lock nut
|
|
| 76. |
VOE955402
|
[0004] |
Hexagon screw
|
|
| 77. |
VOE4850714
|
[0008] |
Washer
|
|
| 78. |
VOE955786
|
[0004] |
Hexagon nut
|
|
| 79. |
VOE914167
|
[0004] |
Lubricating nipple
|
|
| 8. |
VOE4927687
|
[0001] |
Tube
|
V
|
| 80. |
VOE4824482
|
[0004] |
O-ring
|
|
| 80A. |
VOE955259
|
[0004] |
Hexagon screw
|
|
| 80B. |
VOE13940090
|
[0004] |
Washer
|
|
| 80C. |
VOE13963104
|
[0004] |
Lock nut
|
|
| 81. |
VOE4926585
|
[0002] |
Pin
|
|
| 82. |
VOE784323
|
[0002] |
Nipple
|
|
| 83. |
VOE13970969
|
[0002] |
Hexagon screw
|
|
| 84. |
VOE60110353
|
[0002] |
Washer
|
|
| 85. |
|
|
Bucket positioner
|
|
| |
|
|
Boom kickout
|
|
| 1. |
VOE6212784
|
|
Lifting frame work
|
|
| |
VOE4927688
|
[0001] |
Tube
|
H
|
| 9. |
VOE4927692
|
[0001] |
Tube
|
V
|
| |
VOE4927693
|
[0001] |
Tube
|
H
|
| 10. |
VOE784399
|
[0004] |
Clutch
|
|
| 11. |
VOE11000305
|
[0004] |
Clutch
|
|
| 12. |
VOE914167
|
[0004] |
Lubricating nipple
|
|
| |
VOE4763295
|
[0004] |
Bushing Housing
|
|
| 13. |
|
[0004] |
Retainer
|
|
| 14. |
VOE4740395
|
[0004] |
Bushing
|
|
| 15. |
VOE4762787
|
[0004] |
Washer
|
|
| 1. |
|
[0002] |
Iron
|
|
| 16. |
VOE956205
|
[12] |
Cross recessed sunk screw
|
|
| 17. |
VOE4763127
|
[REQ] |
Shim
|
|
| 18. |
VOE13970949
|
[24] |
Hexagon screw
|
|
| 19. |
VOE941908
|
[24] |
Spring washer
|
|
| 20. |
VOE925742
|
[24] |
Washer
|
|
| 21. |
VOE4924453
|
[2] |
Pin
|
L AGGR - 1025
|
| |
VOE4928056
|
[2] |
Pin
|
L AGGR 1026-1112
|
| |
VOE4924453
|
[2] |
Pin
|
L AGGR 1113-1262
|
| |
VOE4928056
|
[2] |
Pin
|
L AGGR 1263-
|
| 22. |
VOE784323
|
[2] |
Nipple
|
|
| 23. |
VOE13970969
|
[2] |
Hexagon screw
|
|
| 2. |
VOE4924436
|
[0001] |
Cross Tube
|
|
| 24. |
VOE60110353
|
[2] |
Washer
|
|
| 25. |
VOE4824482
|
[4] |
O-ring
|
|
| 25A. |
VOE955259
|
[4] |
Hexagon screw
|
|
| 25B. |
VOE13940090
|
[4] |
Washer
|
|
| 25C. |
VOE13963104
|
[4] |
Lock nut
|
|
| 26. |
VOE4924503
|
[2] |
Pin
|
|
| 27. |
VOE4824481
|
[4] |
O-ring
|
|
| 27A. |
VOE955259
|
[4] |
Hexagon screw
|
|
| 27B. |
VOE13940090
|
[0004] |
Washer
|
|
| 27C. |
VOE13963104
|
[0004] |
Lock nut
|
|
| 28. |
VOE4924615
|
[0002] |
Pin
|
|
| 29. |
VOE784323
|
[0004] |
Nipple
|
|
| 30. |
VOE13970969
|
[0004] |
Hexagon screw
|
|
| 31. |
VOE60110353
|
[0004] |
Washer
|
|
| 32. |
VOE4932311
|
[0002] |
Link
|
|
| 33. |
VOE4929198
|
[0004] |
Bushing
|
|
| 3. |
VOE4929197
|
[0002] |
Bushing
|
|
| 34. |
VOE4932327
|
[0002] |
Link
|
|
| 35. |
VOE4932328
|
[0002] |
Link
|
|
| 36. |
VOE4824481
|
[0004] |
O-ring
|
|
| 36A. |
VOE955259
|
[0004] |
Hexagon screw
|
|
| 36B. |
VOE13940090
|
[0004] |
Washer
|
|
| 36C. |
VOE13963104
|
[0004] |
Lock nut
|
|
| 37. |
VOE4928662
|
[0002] |
Pin
|
|
| 37A. |
VOE13960145
|
[0002] |
Washer
|
L AGGR 1173-
|
| 38. |
VOE4926336
|
[0002] |
Lock plate
|
|
| 39. |
VOE4786718
|
[0004] |
Ring
|
|
| 40. |
VOE4928661
|
[0002] |
Pin
|
|
| 40A. |
VOE13960145
|
[0002] |
Washer
|
L AGGR 1173-
|
| 41. |
VOE4763269
|
[0002] |
Lock plate
|
|
