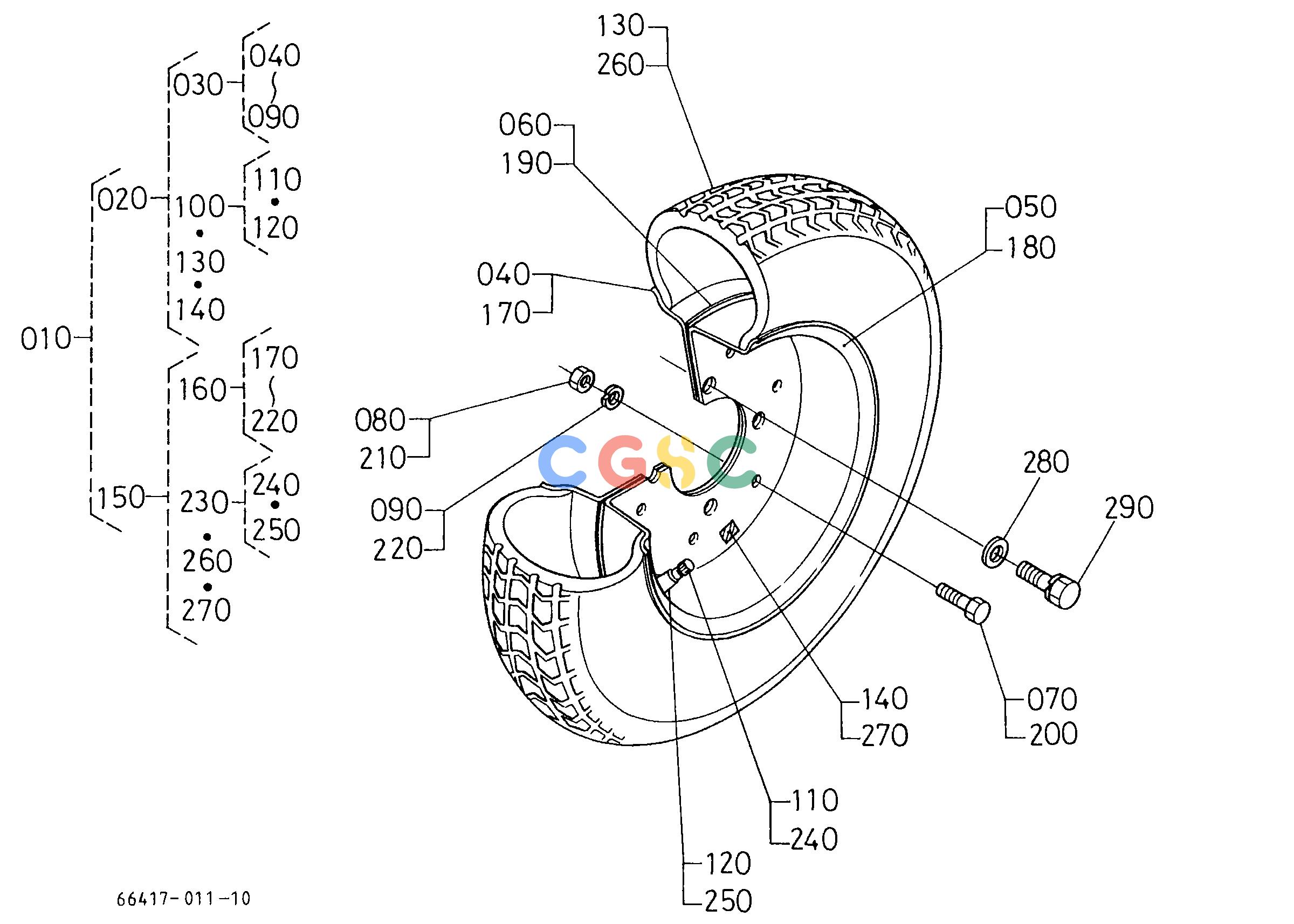

久保田零件查询T07503 FRONT WHEEL (18 X 9.50-8) FRONT AXLE/FRONT WHEELEPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
361 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6641457600
|
[1] |
ASSY FRONT WHEEL
|
0.0000(lbs); 0.000
|
| 020. |
6641457610
|
[1] |
ASSY FRONT WHEEL LH
|
0.0000(lbs); 0.000
|
| 030. |
6641457620
|
[1] |
WHEEL
|
7.2600(lbs); 3.300
|
| 040. |
9601845140
|
[1] |
RIM
|
2.6840(lbs); 1.220
|
| 050. |
9601845150
|
[1] |
RIM
|
4.1800(lbs); 1.900
|
| 060. |
9601845160
|
[1] |
GASKET
|
0.0440(lbs); 0.020
|
| 070. |
0115350820
|
[6] |
BOLT
|
0.0264(lbs); 0.012
|
| 080. |
0211450080
|
[6] |
NUT
|
0.0110(lbs); 0.005
|
| 090. |
0451250080
|
[6] |
WASHER SPRING
|
0.0044(lbs); 0.002
|
| 100. |
3415911850
|
[1] |
VALVE TIRE
|
0.0286(lbs); 0.013
|
| 110. |
3824011690
|
[1] |
CAP VALVE
|
0.0044(lbs); 0.002
|
| 120. |
3215027740
|
[1] |
CORE VALVE
|
0.0066(lbs); 0.003
|
| 130. |
9601845130
|
[1] |
TIRE
|
13.6400(lbs); 6.200
|
| 140. |
6641457630
|
[1] |
LABEL TIRE LH
|
0.0000(lbs); 0.000
|
| 150. |
6641457640
|
[1] |
ASSY FRONT WHEEL RH
|
0.0000(lbs); 0.000
|
| 160. |
6641457620
|
[1] |
WHEEL
|
7.2600(lbs); 3.300
|
| 170. |
9601845140
|
[1] |
RIM
|
2.6840(lbs); 1.220
|
| 180. |
9601845150
|
[1] |
RIM
|
4.1800(lbs); 1.900
|
| 190. |
9601845160
|
[1] |
GASKET
|
0.0440(lbs); 0.020
|
| 200. |
0115350820
|
[6] |
BOLT
|
0.0264(lbs); 0.012
|
| 210. |
0211450080
|
[6] |
NUT
|
0.0110(lbs); 0.005
|
| 220. |
0451250080
|
[6] |
WASHER SPRING
|
0.0044(lbs); 0.002
|
| 230. |
3415911850
|
[1] |
VALVE TIRE
|
0.0286(lbs); 0.013
|
| 240. |
3824011690
|
[1] |
CAP VALVE
|
0.0044(lbs); 0.002
|
| 250. |
3215027740
|
[1] |
CORE VALVE
|
0.0066(lbs); 0.003
|
| 260. |
9601845130
|
[1] |
TIRE
|
13.6400(lbs); 6.200
|
| 270. |
6641457650
|
[1] |
LABEL TIRE RH
|
0.0000(lbs); 0.000
|
| 280. |
0401360120
|
[8] |
WASHER PLAIN
|
0.0220(lbs); 0.010
|
| 290. |
0112351225
|
[8] |
BOLT
|
0.0880(lbs); 0.040
|
