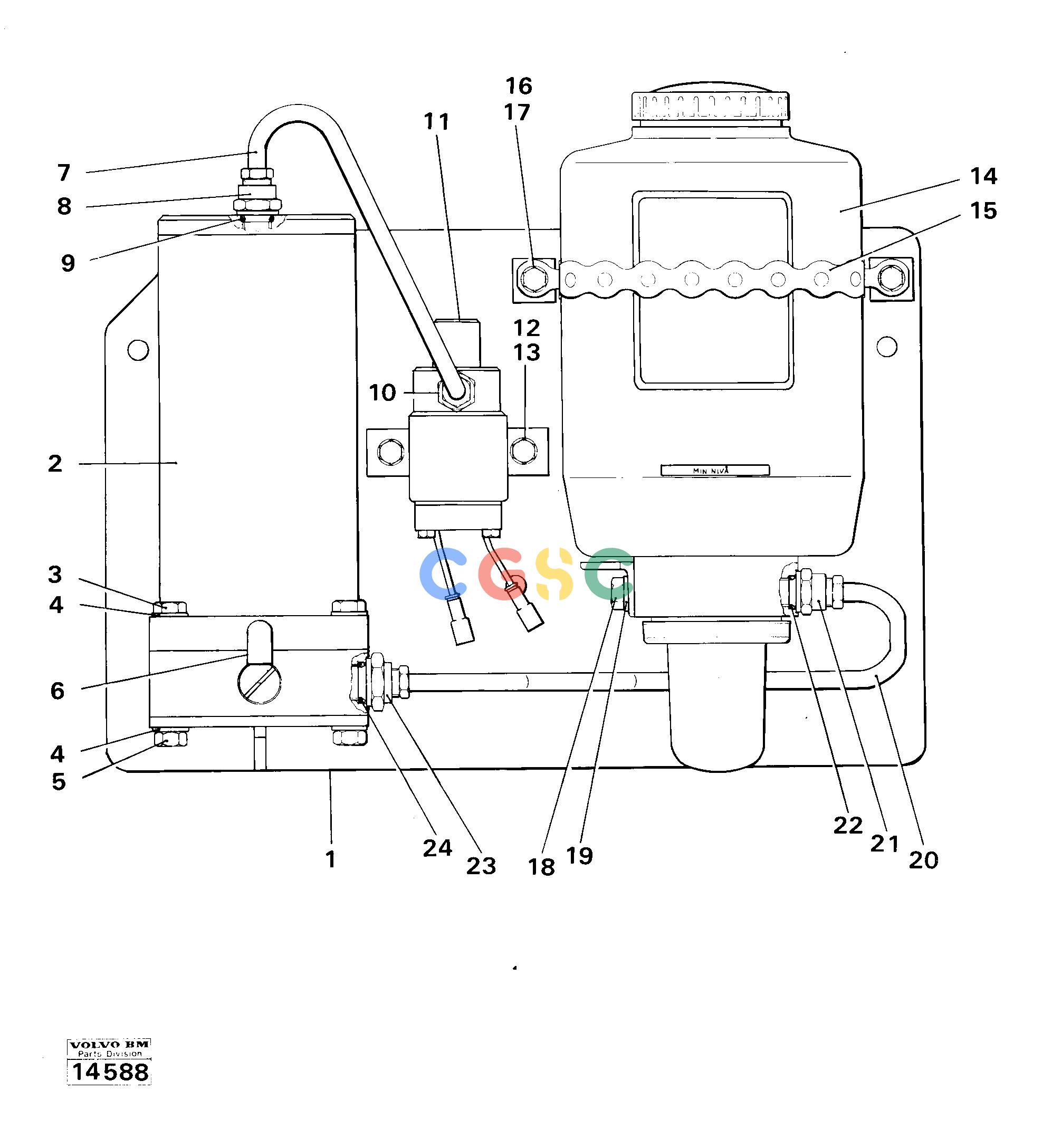

沃尔沃零件查询4300 Pump unit4300 NoneNone98381Autodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
166 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 4. |
VOE13955894
|
[0008] |
Washer
|
|
| 5. |
VOE955782
|
[0004] |
Hexagon nut
|
|
| 6. |
VOE4787759
|
[0001] |
Elbow nipple
|
|
| 7. |
VOE946234
|
[0280] |
Plastic pipe
|
|
| 8. |
VOE4787738
|
[0001] |
Clutch
|
|
| |
VOE4787779
|
[0001] |
Pump unit
|
|
| 9. |
VOE944364
|
[0001] |
O-ring
|
|
| 10. |
VOE4787762
|
[0001] |
Clutch
|
|
| 11. |
|
[0001] |
Solenoid valve
|
|
| 12. |
VOE955268
|
[0002] |
Hexagon screw
|
|
| 13. |
VOE955892
|
[0002] |
Plain washer
|
|
| 14. |
VOE6212675
|
[0001] |
Reservoir
|
|
| |
|
|
None
|
|
| 15. |
|
[0001] |
Strip
|
|
| 16. |
VOE955268
|
[0002] |
Hexagon screw
|
|
| 17. |
VOE955892
|
[0002] |
Plain washer
|
|
| 18. |
VOE13955294
|
[0002] |
Screw
|
|
| 1. |
|
[0001] |
Attaching plate
|
|
| 19. |
VOE13955894
|
[0002] |
Washer
|
|
| 20. |
|
[0001] |
Pipe
|
|
| 21. |
VOE4787738
|
[0001] |
Clutch
|
|
| 22. |
VOE944364
|
[0001] |
O-ring
|
|
| 23. |
VOE4787670
|
[0001] |
Clutch
|
|
| 24. |
VOE955976
|
[0001] |
O-ring
|
|
| 2. |
VOE4881183
|
[0001] |
Pump
|
|
| 3. |
VOE955303
|
[0004] |
Hexagon screw
|
|
