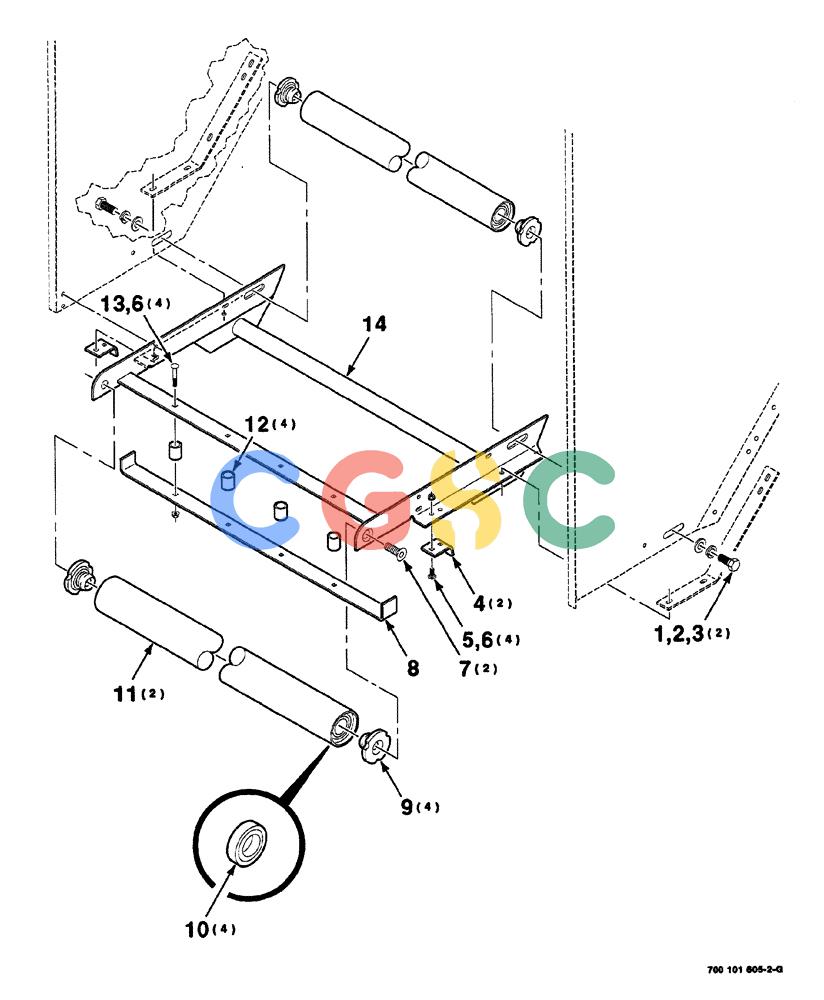

凯斯零件查询(8420) - CASE IH ROUND BALER (1/88-12/00) (05-08) - ROLLER ASSEMBLY (LOWER TAILGATE) Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
249 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
413-1228
|
[2] |
BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5
|
CAS
Superseded by part number: 88725
|
| 2. |
492-11075
|
[2] |
LOCK WASHER,3/4"
|
CAS
3/4" Superseded by part number: 87340
|
| 3. |
705566
|
[2] |
WASHER
|
IH
hardened plain, 3/4"
|
| 4. |
700101630
|
[2] |
LATCH
|
L
|
| 5. |
434-616
|
[4] |
CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5
|
CAS
Superseded by part number: 80280503
|
| 6. |
231-5146
|
[8] |
FLANGE NUT,3/8"-16
|
CAS
Superseded by part number: 72187068, 247780
|
| 7. |
700707981
|
[2] |
SCREW,FLAT, 3/4" - 10 x 1-3/4"
|
L
cap, hex socket flat countersunk head, special, 3/4"-10 x 1-3/4"
|
| 8. |
700101632
|
[1] |
GUIDE
|
HFI
belt
|
| 9. |
700100927
|
[4] |
HUB
|
L
roller
|
| 10. |
8050825
|
[4] |
BEARING, ROLLER, CYL,38.1 mm ID x 80 mm OD x 30.163 mm
|
L
cylindrical Superseded by part number: F82059
|
| 11. |
700101606
|
[2] |
CONVEYOR ROLLER
|
L
ASSY., Includes: Ref. 10
|
| 12. |
6866735
|
[4] |
GUIDE
|
HFI
SPACER
|
| 13. |
433-640
|
[4] |
CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2 1/2", Gr 5
|
CAS
BOLT round head square neck, 3/8"-16 x 2-1/2" Superseded by part number: 280744
|
| 14. |
700101608
|
[1] |
MOUNTING PARTS
|
HFI
WA
|
