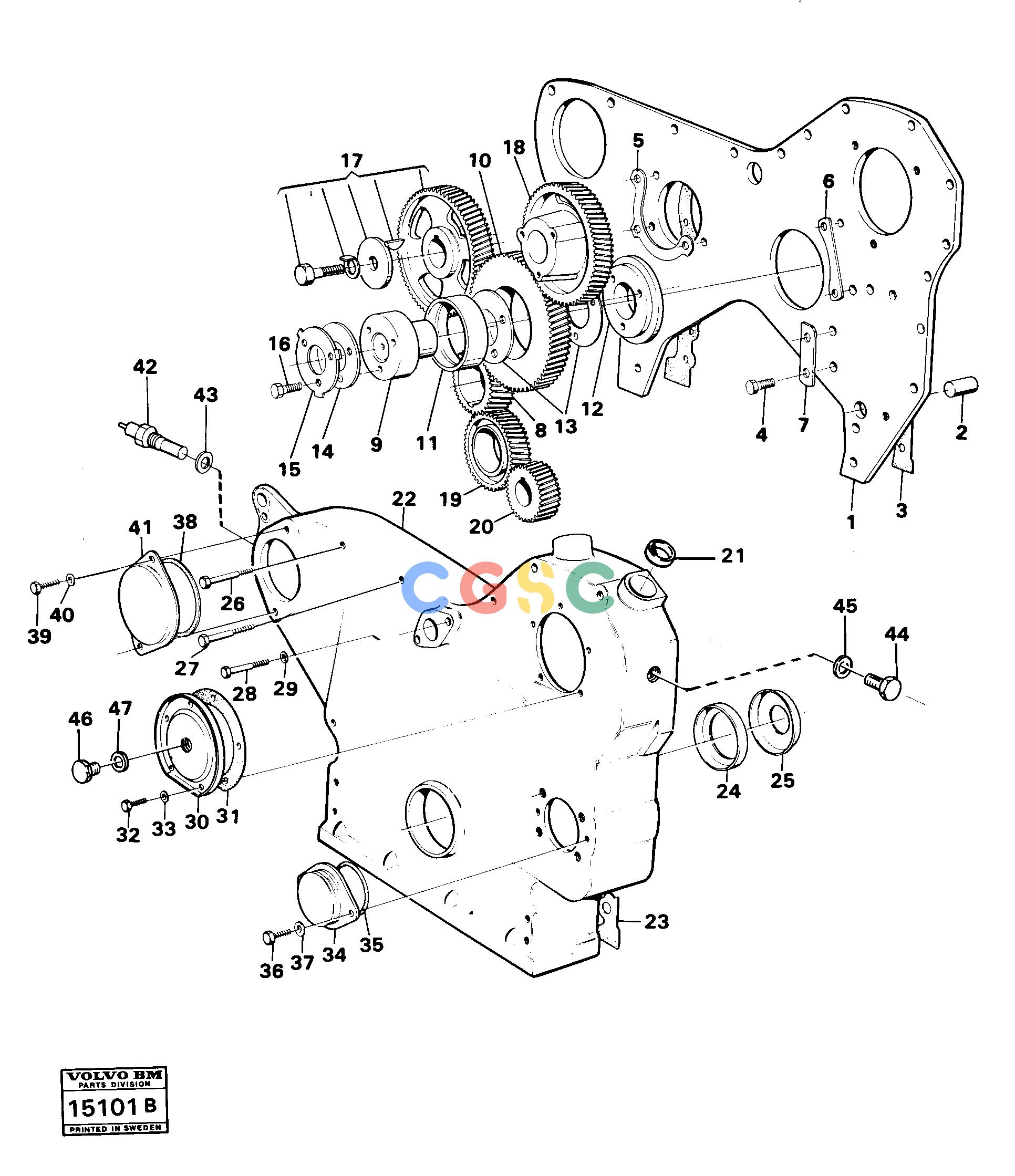

沃尔沃零件查询4300B Timing gear casing and gears4300B NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
434 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 5. |
VOE785796
|
[1] |
Striker plate
|
|
| 6. |
VOE785797
|
[1] |
Striker plate
|
|
| 7. |
VOE11000062
|
[1] |
Striker plate
|
|
| 8. |
|
[1] |
Crankshaft gear
|
|
| 9. |
VOE785723
|
[1] |
Pin
|
|
| 1. |
VOE4804585
|
[1] |
Xmsn Plate
|
|
| 10. |
VOE785767
|
[1] |
Idler gear
|
|
| 11. |
|
[1] |
Bushing
|
|
| 12. |
VOE785768
|
[1] |
Spacer plate
|
|
| 13. |
VOE787294
|
[2] |
Thrust washer
|
|
| 14. |
VOE787377
|
[1] |
Bearing shield
|
|
| 15. |
VOE785590
|
[0001] |
Striker plate
|
|
| 16. |
VOE955556
|
[0003] |
Hexagon screw
|
|
| 17. |
|
[0001] |
Camshaft gear
|
|
| 18. |
|
[0001] |
Gear
|
SEE GROUP 23
|
| 19. |
|
[0001] |
Gear
|
SEE GROUP 22
|
| 2. |
VOE191171
|
[2] |
Pin
|
|
| 20. |
|
[0001] |
Gear
|
SEE GROUP 22
|
| 21. |
VOE13946780
|
[0001] |
Cap plug
|
|
| 22. |
VOE4804736
|
[0001] |
Timing gear cover
|
|
| 23. |
VOE1161277
|
[0001] |
Sealant
|
|
| 24. |
VOE11713159
|
[0001] |
Sealing ring
|
|
| 25. |
VOE785517
|
[0001] |
Ring
|
|
| 26. |
VOE955531
|
[0008] |
Hexagon screw
|
|
| 27. |
VOE926083
|
[0002] |
Screw
|
|
| 28. |
VOE13940135
|
[0008] |
Screw
|
|
| 29. |
VOE13941907
|
[0018] |
Washer
|
|
| 3. |
VOE1161277
|
[1] |
Sealant
|
|
| 30. |
|
[0001] |
Cover
|
|
| 31. |
VOE785594
|
[0001] |
Gasket
|
|
| 32. |
VOE940100
|
[0005] |
Hexagon screw
|
|
| 33. |
VOE13941906
|
[0005] |
Washer
|
|
| 34. |
VOE785859
|
[0001] |
Cap
|
|
| 35. |
VOE926132
|
[0001] |
O-ring
|
|
| 36. |
VOE13940133
|
[0002] |
Screw
|
|
| 37. |
VOE13942336
|
[0002] |
Spring washer
|
|
| 38. |
VOE420213
|
[0001] |
Sealing ring
|
|
| 39. |
VOE955535
|
[0002] |
Hexagon screw
|
|
| 4. |
VOE955524
|
[7] |
Hexagon screw
|
|
| 40. |
VOE13942336
|
[0002] |
Spring washer
|
|
| 41. |
VOE7420183
|
[0001] |
Cover
|
|
| 42. |
VOE4780941
|
[0001] |
Induction sensor
|
|
| 43. |
VOE13947624
|
[0001] |
Plane gasket
|
|
| 44. |
VOE962632
|
[0001] |
Shim
|
|
| 45. |
VOE13947624
|
[0001] |
Plane gasket
|
|
| 46. |
VOE7301185
|
[0001] |
Plug
|
|
| 47. |
VOE13947627
|
[0001] |
Plane gasket
|
|
