神钢零件查询(4D31-T) - MITSUBISHI DIESEL ENGINE (1/88-12/06) (03-009) - FUEL RETURN SYSTEM Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
699 次

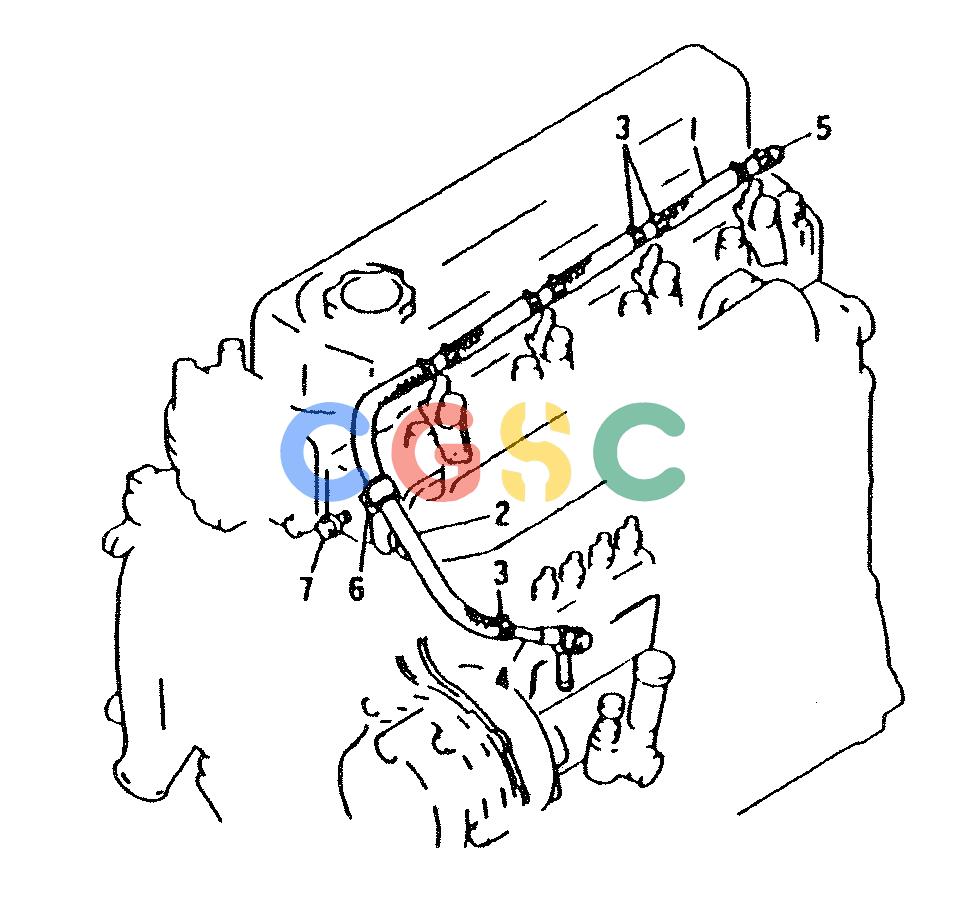

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | VAMS602013 | [3] | FLEXIBLE HOSE | KOBHOSE, FUEL 6 X 110 Superseded by part number: VAMS602013A |
| 2. | VAMS602067 | [1] | HOSE | KOBHOSE, FUEL 6 X 380 |
| 3. | VAMS660163 | [9] | CLAMP | KOBCLIP, HOSE 11.6 Superseded by part number: VA0531771160 |
| 4. | VAME018087 | [1] | PIPE | KOBPIPE, B FUEL LEAK OFF |
| 5. | VAME016571 | [1] | CAP | KOBCAP |
| 6. | VAMH020754 | [1] | CLIP | |
| 7. | VAMF140221 | [1] | BOLT | KOBBOLT, FLANGE 8 X 12 |
