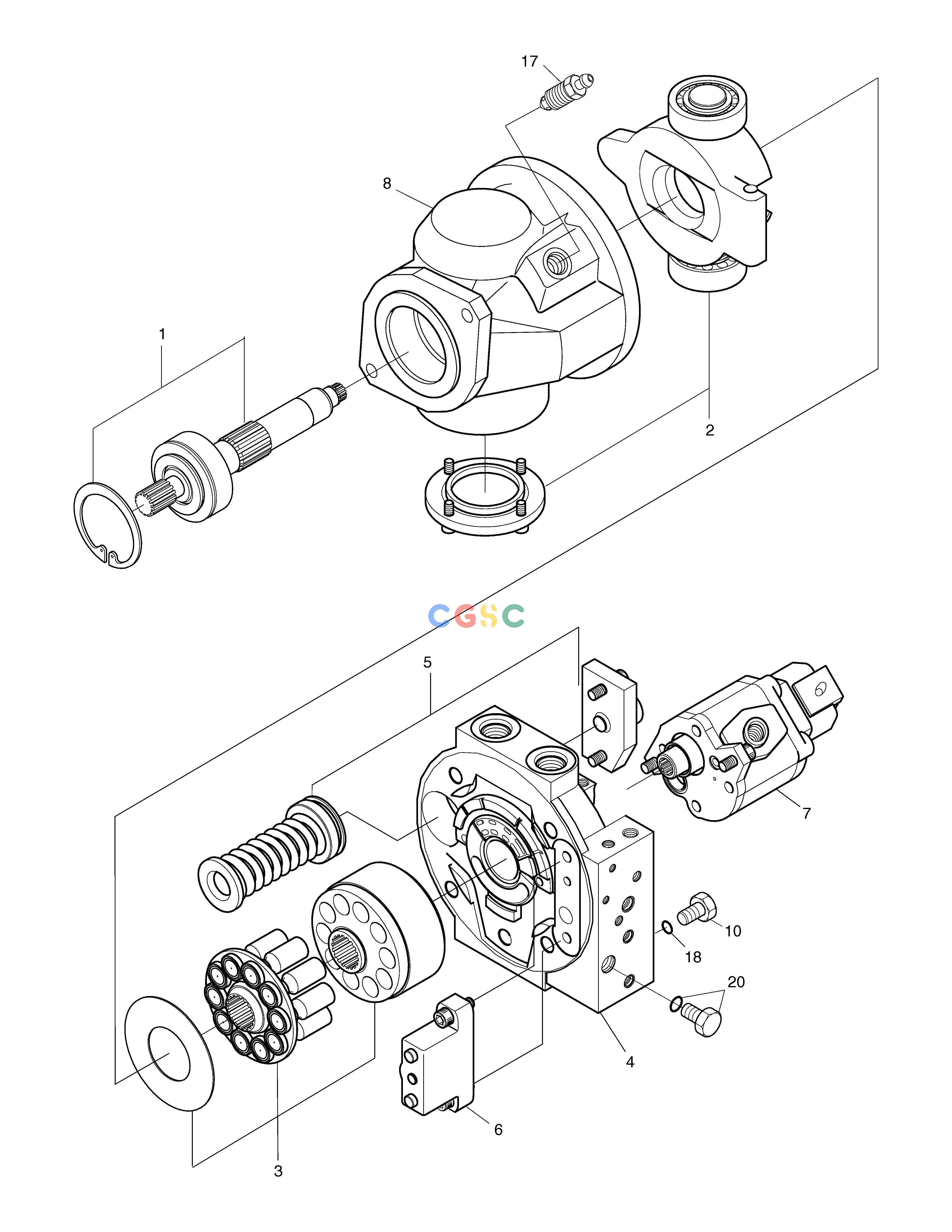

斗山零件查询MAIN PUMP B55W-1 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
1008 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
401-00358
|
[1] |
PUMP;MAIN
|
401-00358A
|
| -. |
401-00358A
|
[1] |
PUMP;MAIN
|
401-00358B
|
| -. |
401-00358B
|
[1] |
PUMP;MAIN
|
|
| 1. |
4100352698
|
[1] |
SHAFT ASS'Y
|
|
| 1. |
R971009502
|
[1] |
SHAFT ASS'Y
|
|
| 10. |
1100541268
|
[2] |
PLUG
|
|
| 17. |
1100494869
|
[1] |
AIR VENT VALVE
|
|
| 18. |
1800042641
|
[1] |
O-RING
|
|
| 2. |
4100318322
|
[1] |
HANGER ASS'Y
|
|
| 20. |
4100104426
|
[1] |
PLUG
|
|
| 3. |
4100504009
|
[1] |
ROTARY GROUP
|
|
| 3. |
R971008939
|
[1] |
ROTARY ASS'Y
|
|
| 4. |
4100501679
|
[1] |
COVER ASS'Y
|
|
| 5. |
4100692849
|
[1] |
CONTROL SPRING ASS'Y
|
|
| 5. |
R971010736
|
[1] |
CONTROL SPRING ASS'Y
|
|
| 6. |
4100694139
|
[1] |
CONTROL PISTON ASS'Y
|
|
| 7. |
H9116R6738-0
|
[1] |
PUMP;GEAR
|
|
| 8. |
1100487219
|
[1] |
HOUSING
|
|
