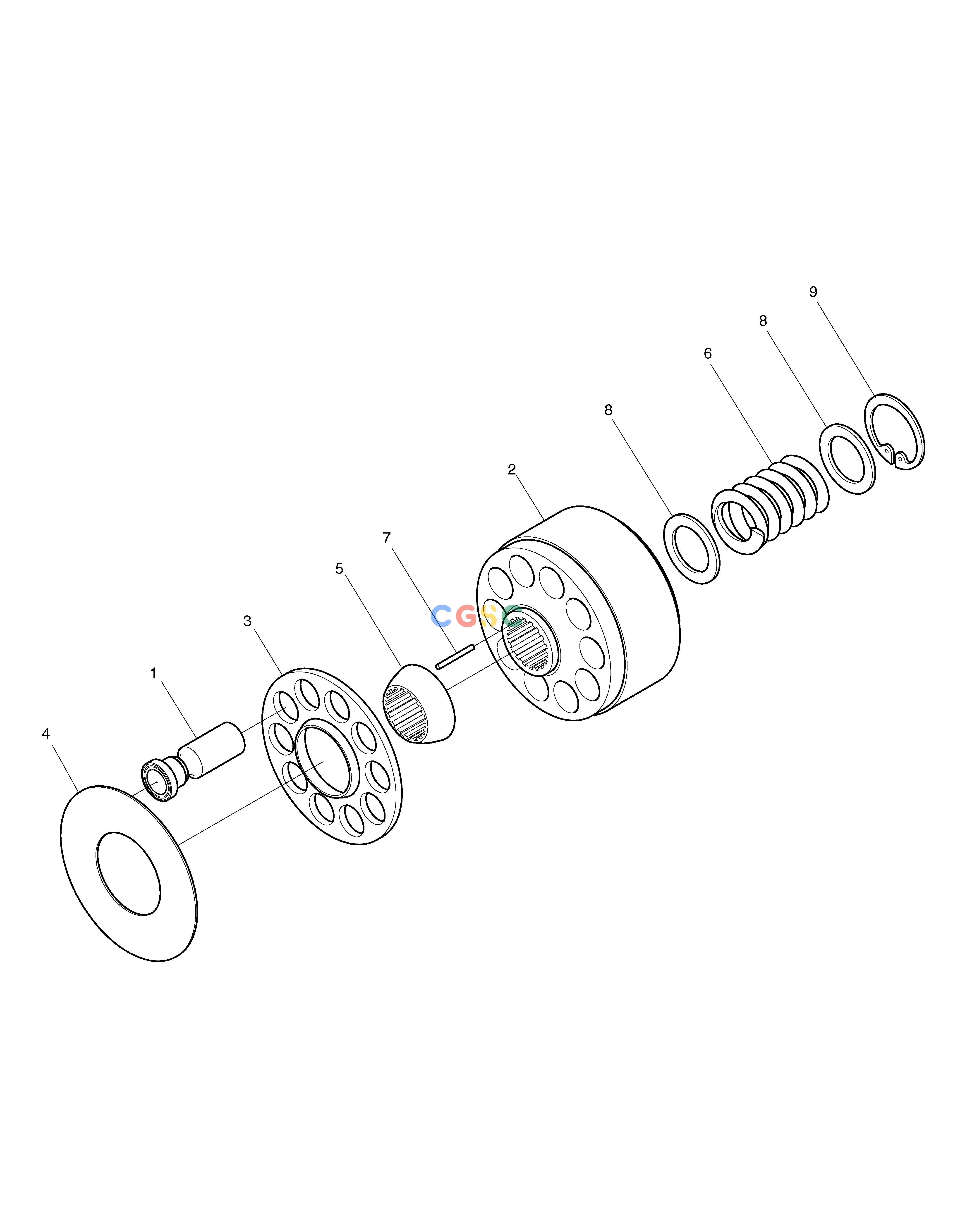

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 4100504019 | [10] | PISTON ASS'Y | |
| 2. | 1100483245 | [1] | BLOCK;CYLINDER | |
| 2. | R971008938 | [1] | BLOCK;CYLINDER | |
| 3. | 1100483171 | [1] | RETAINER | |
| 3. | R971008937 | [1] | RETAINER | |
| 4. | 1100316778 | [1] | PLATE | |
| 5. | 1100195746 | [1] | GUIDE | |
| 6. | 1100485911 | [1] | SPRING | |
| 7. | 1100049349 | [3] | PIN;PARALLEL | |
| 8. | 1100312693 | [2] | SEAT;SPRING | |
| 9. | 1302160003 | [1] | RING;RETAINING |
