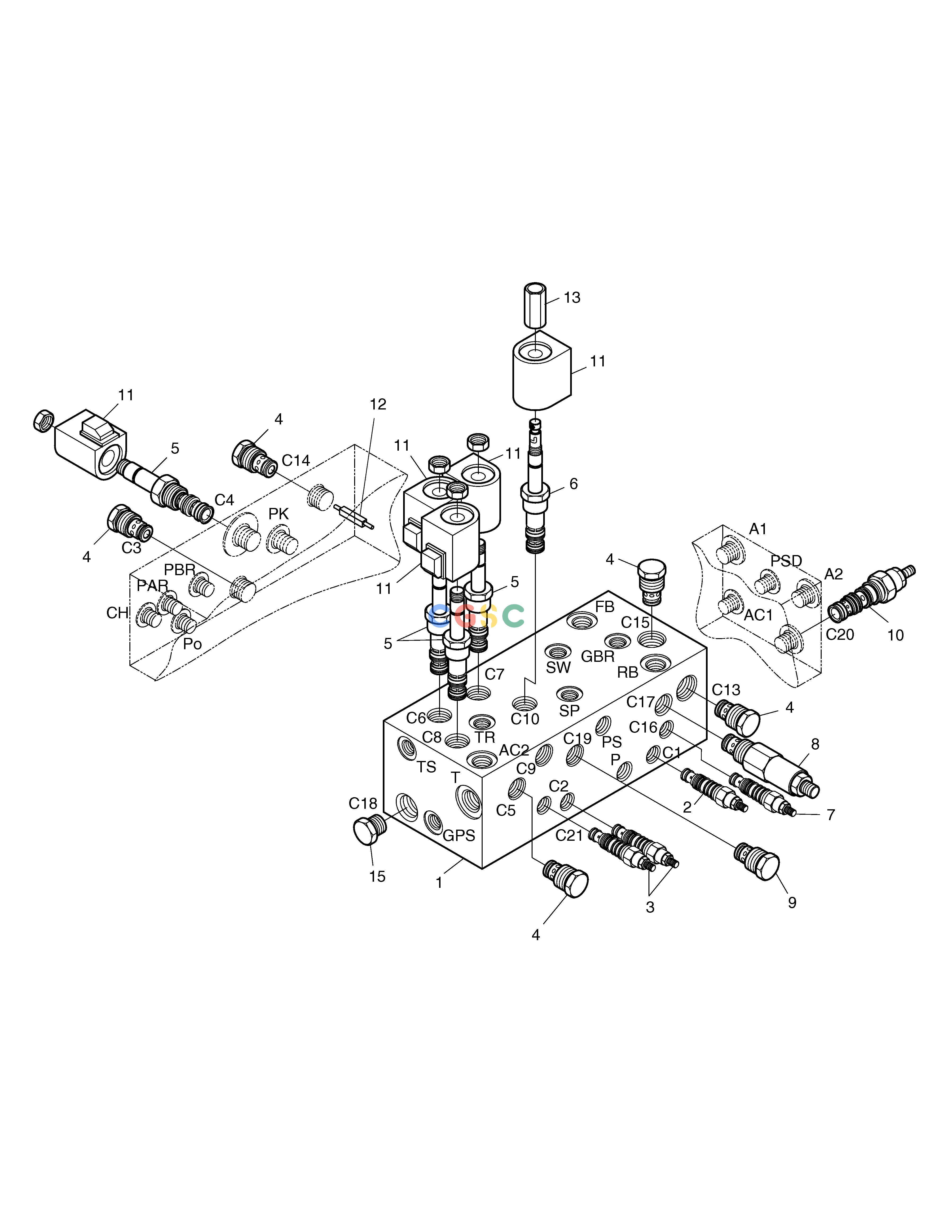

斗山零件查询PILOT SUPPLY VALVE B55W-1 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
939 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420-00428
|
[1] |
VALVE;PILOT SUPPLY
|
|
| 1. |
NA00069
|
[1] |
BLOCK
|
|
| 10. |
FVCA-LAN-10L
|
[1] |
VALVE;PRIORITY
|
|
| 11. |
VDL12
|
[5] |
COIL
|
|
| 12. |
NA00043
|
[1] |
|
|
| 13. |
NA00628
|
[1] |
NUT,LOCK
|
|
| 15. |
NA00843
|
[1] |
PLUG
|
|
| 2. |
RSDC-LDN
|
[1] |
VALVE;SEQUENCE
|
|
| 3. |
PBDB-LNN
|
[2] |
VALVE;REDUCING
|
|
| 3A. |
990-011-007
|
[1] |
SEAL KIT
|
|
| 4. |
FD-DC-0-B
|
[5] |
VALVE;CHECK
|
|
| 4A. |
DECVA-S-01
|
[1] |
SEAL KIT
|
|
| 5. |
DF-S3A-00
|
[4] |
VALVE;SOLENOID
|
|
| 5A. |
DF-S3A-S-01
|
[1] |
SEAL KIT
|
|
| 6. |
DF-S3A-0M
|
[1] |
VALVE;SOLENOID
|
|
| 7. |
QPAB-LBN
|
[1] |
VALVE;UNLOADER
|
|
| 8. |
DE-RVA-00-3000
|
[1] |
VALVE;RELIEF
|
|
| 9. |
FD-DC-0-A
|
[1] |
VALVE;CHECK
|
|
