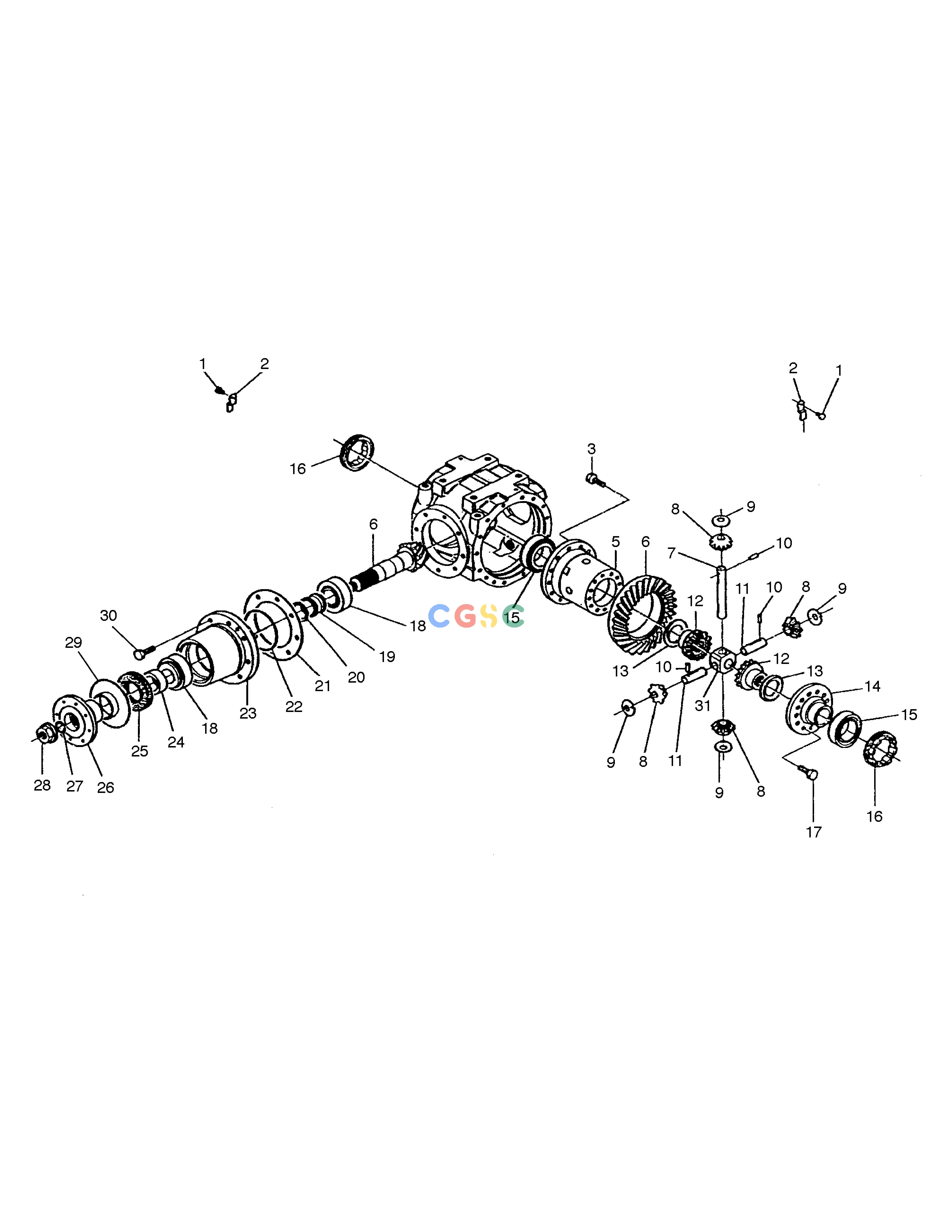

斗山零件查询REAR AXLE(2) B55W-1 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
451 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
016.01.1180
|
[2] |
BOLT;HEX.
|
|
| 10. |
014.03.2841
|
[3] |
DOWEL
|
|
| 11. |
171.04.008.02
|
[2] |
PIN
|
|
| 12. |
171.04.005.05
|
[2] |
GEAR;DIFFERENTIAL SIDE
|
|
| 13. |
171.04.011.01
|
[2] |
WASHER;FRICTION
|
|
| 14. |
171.04.013.02
|
[1] |
COVER
|
|
| 15. |
005.09.0496
|
[2] |
BEARING;TAPER ROLLER
|
|
| 16. |
171.04.015.01
|
[2] |
NUT;RING
|
|
| 17. |
016.01.0373
|
[8] |
BOLT;HEX.
|
|
| 18. |
005.09.2938
|
[2] |
BEARING
|
|
| 19. |
171.04.016.02
|
[1] |
SPACER
|
|
| 2. |
171.04.020.01
|
[2] |
PLATE;LOCKING
|
|
| 20. |
013.01.1369
|
[1] |
SHIM
|
|
| 20. |
013.01.1371
|
[1] |
SHIM
|
|
| 20. |
013.01.3067
|
[1] |
SHIM
|
|
| 20. |
013.01.3279
|
[1] |
SHIM
|
|
| 21. |
171.01.006.01
|
[1] |
SHIM
|
|
| 21. |
171.01.006.02
|
[1] |
SHIM
|
|
| 21. |
171.01.006.03
|
[1] |
SHIM
|
|
| 21. |
171.01.006.04
|
[1] |
SHIM
|
|
| 22. |
001.05.1443
|
[1] |
O-RING
|
|
| 23. |
171.01.005.01
|
[1] |
COVER
|
|
| 24. |
171.04.018.01
|
[1] |
SPACER
|
|
| 25. |
001.03.0730
|
[1] |
SEAL
|
|
| 26. |
542.22.004.06
|
[1] |
FLANGE
|
|
| 27. |
001.05.0041
|
[1] |
O-RING
|
|
| 28. |
746.04.008.01
|
[1] |
NUT
|
|
| 29. |
953.01.025.01
|
[1] |
PLATE;COVER
|
|
| 3. |
016.28.3312
|
[12] |
BOLT
|
|
| 30. |
016.01.1209
|
[8] |
BOLT
|
|
| 31. |
171.04.006.02
|
[1] |
RETAINER;SHAFT
|
|
| 5. |
171.04.001.04
|
[1] |
CARRIER;DIFFERENTIAL
|
171.04.001.07
|
| 5. |
171.04.001.07
|
[1] |
CARRIER;DIFFERENTIAL
|
|
| 6. |
171.04.500.10
|
[1] |
SET;BEVEL GEAR
|
|
| 7. |
171.04.007.02
|
[1] |
PIN
|
|
| 8. |
171.04.004.01
|
[4] |
PINION;DIFFERENTIAL
|
|
| 9. |
171.04.012.01
|
[4] |
WASHER;FRICTION
|
|
