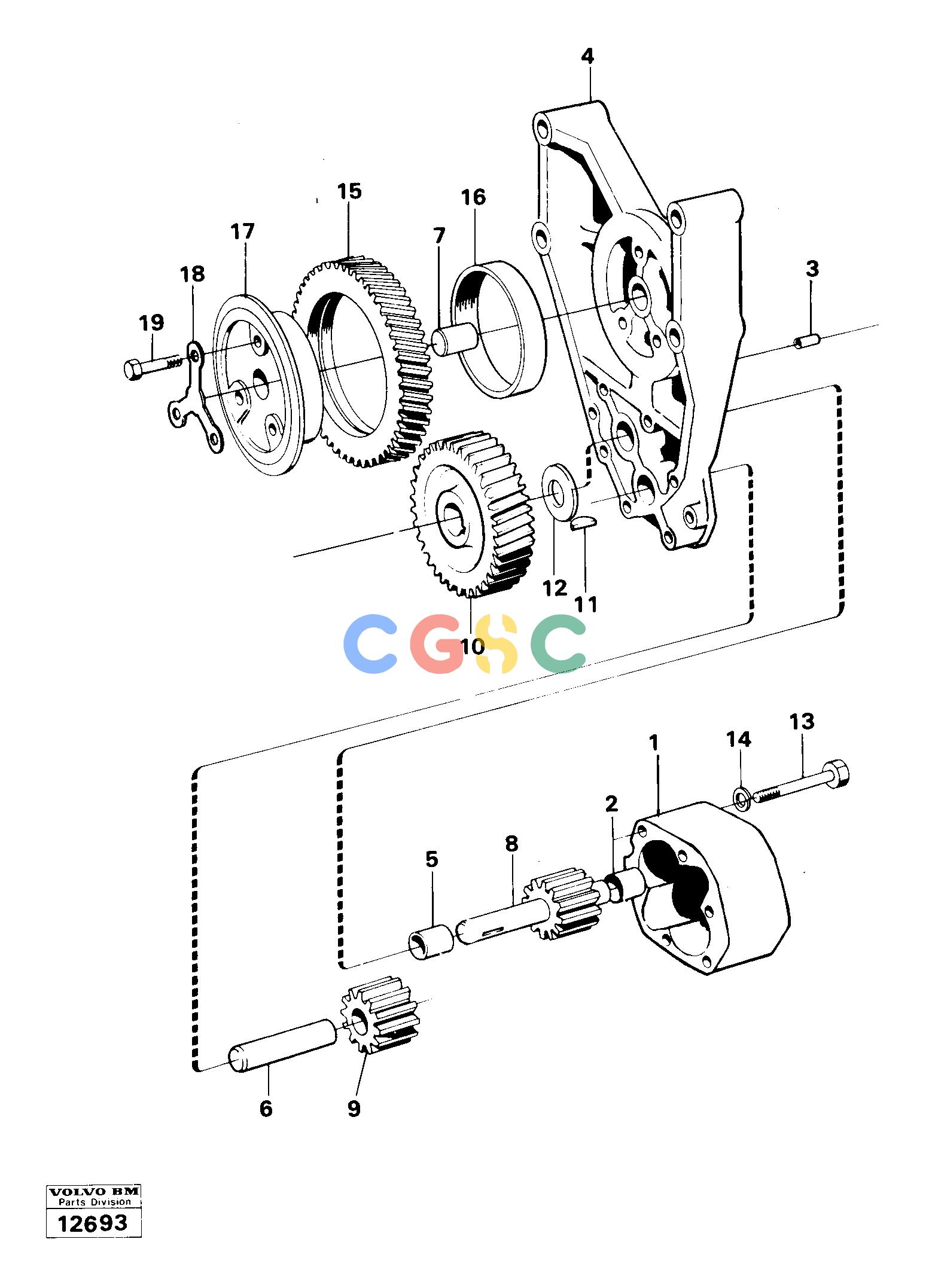

沃尔沃零件查询4400 Oil pump4400 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
858 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 4. |
VOE421042
|
[0001] |
Bracket
|
|
| 5. |
VOE470234
|
[0001] |
Bushing
|
|
| 6. |
VOE422041
|
[0001] |
Pivot Pin
|
|
| 7. |
VOE191171
|
[0001] |
Pin
|
|
| 8. |
|
[0001] |
Shaft with gear
|
|
| |
VOE466387
|
[0001] |
Oil pump
|
|
| 9. |
VOE425183
|
[0001] |
Gear
|
|
| 10. |
VOE469177
|
[0001] |
Drive Gear
|
|
| 11. |
VOE910115
|
[0001] |
Woodruff key
|
|
| 12. |
VOE424133
|
[0001] |
Thrust washer
|
|
| 13. |
VOE13940136
|
[0002] |
Screw
|
|
| 14. |
VOE13941907
|
[0002] |
Washer
|
|
| 15. |
VOE421046
|
[0001] |
Drive Gear
|
|
| 16. |
|
[0001] |
Bushing
|
|
| 17. |
VOE420048
|
[0001] |
Bearing sleeve
|
|
| 18. |
VOE421076
|
[0001] |
Lock washer
|
|
| 1. |
VOE421040
|
[0001] |
Housing
|
|
| 19. |
VOE940186
|
[0003] |
Hexagon screw
|
|
| |
VOE275570
|
[0001] |
Oil pump kit
|
|
| 2. |
VOE470234
|
[0001] |
Bushing
|
|
| 3. |
VOE401146
|
[0002] |
Guide sleeve
|
|
