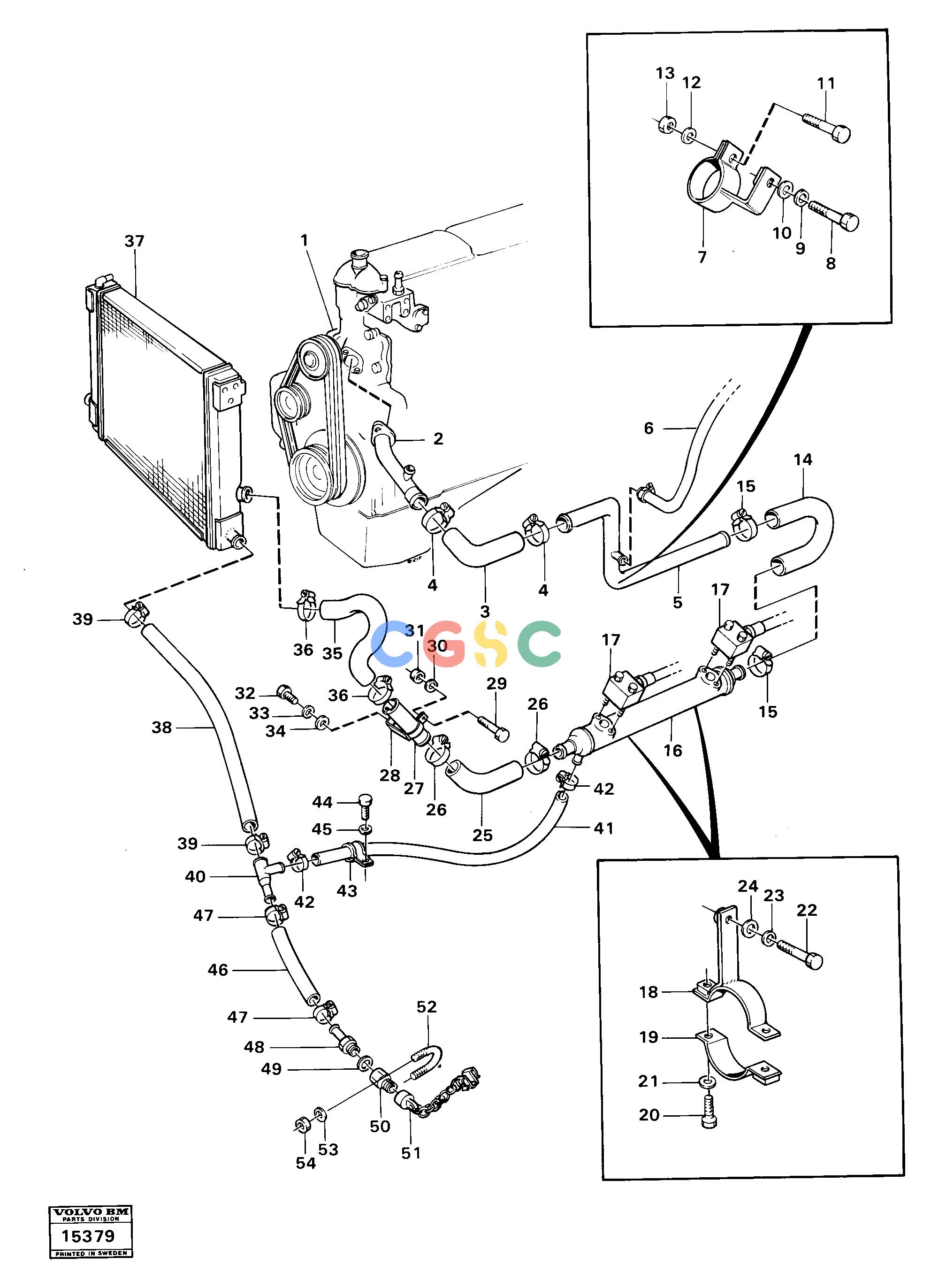

沃尔沃零件查询4400 Cooling system, oil-cooler4400 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
874 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 5. |
VOE4773871
|
[0001] |
Tube
|
SER NO -1010
|
| 50. |
VOE4786585
|
[0001] |
Insert nipple
|
|
| 51. |
VOE11147580
|
[0001] |
Dust cover
|
SER NO -5644
|
| |
VOE11194108
|
[0001] |
Protecting sleeve
|
SER NO 5645-
|
| 52. |
VOE4739982
|
[0001] |
Clamp
|
|
| |
VOE4850673
|
[0001] |
Tube
|
SER NO 1011-
|
| 53. |
VOE13941907
|
[0002] |
Washer
|
|
| 54. |
VOE955782
|
[0002] |
Hexagon nut
|
|
| 6. |
|
[0001] |
Hose
|
SEE GROUP 83
|
| 7. |
VOE4773893
|
[0001] |
Anchorage
|
SER NO -1010
|
| |
VOE4773873
|
[0001] |
Anchorage
|
SER NO 1011-
|
| 8. |
VOE940142
|
[0001] |
Hexagon screw
|
|
| 9. |
VOE13941907
|
[0001] |
Washer
|
|
| 1. |
|
[0001] |
Water pump
|
|
| 10. |
VOE13960143
|
[0001] |
Washer
|
|
| 11. |
VOE940142
|
[0001] |
Hexagon screw
|
|
| 12. |
VOE13941907
|
[0001] |
Washer
|
|
| 13. |
VOE955782
|
[0001] |
Hexagon nut
|
|
| 14. |
VOE4773770
|
[0001] |
Hose
|
|
| 15. |
VOE943479
|
[0002] |
Hose clamp
|
|
| 16. |
VOE4773795
|
[0001] |
Oil cooler
|
|
| 17. |
|
[0002] |
Connection
|
SEE GROUP 41
|
| 18. |
VOE4763590
|
[2] |
Anchorage
|
|
| 19. |
VOE4773877
|
[2] |
Clamp
|
|
| 2. |
|
[0001] |
Pipe
|
|
| 20. |
VOE940142
|
[4] |
Hexagon screw
|
|
| 21. |
VOE13941907
|
[4] |
Washer
|
|
| 22. |
VOE13970948
|
[2] |
Hexagon screw
|
|
| 23. |
VOE941908
|
[2] |
Spring washer
|
|
| 24. |
VOE13960143
|
[2] |
Washer
|
|
| 25. |
VOE4773769
|
[1] |
Hose
|
|
| 26. |
VOE943479
|
[2] |
Hose clamp
|
|
| 27. |
VOE4773775
|
[1] |
Tube
|
|
| 28. |
VOE4773777
|
[1] |
Anchorage
|
|
| 29. |
VOE940142
|
[1] |
Hexagon screw
|
|
| 3. |
VOE4773776
|
[0001] |
Hose
|
|
| 30. |
VOE13941907
|
[1] |
Washer
|
|
| 31. |
VOE955782
|
[1] |
Hexagon nut
|
|
| 32. |
VOE13970948
|
[0001] |
Hexagon screw
|
|
| 33. |
VOE941908
|
[0001] |
Spring washer
|
|
| 34. |
VOE13960143
|
[0001] |
Washer
|
|
| 35. |
VOE4773768
|
[0001] |
Hose
|
|
| 36. |
VOE943479
|
[0002] |
Hose clamp
|
|
| 37. |
|
[0001] |
Radiator
|
|
| 38. |
VOE943367
|
[0620] |
Hose
|
|
| 39. |
VOE943471
|
[0002] |
Hose clamp
|
|
| 4. |
VOE943479
|
[0002] |
Hose clamp
|
|
| 40. |
VOE4850381
|
[0001] |
Tube
|
|
| 41. |
VOE13961191
|
[0450] |
Hydraulic hose
|
|
| 42. |
VOE13943472
|
[0002] |
Hose clamp
|
|
| 43. |
VOE977599
|
[0001] |
Clamp
|
|
| 44. |
VOE13955294
|
[0001] |
Screw
|
|
| 45. |
VOE13941907
|
[0001] |
Washer
|
|
| 46. |
VOE13961191
|
[0330] |
Hydraulic hose
|
|
| 47. |
VOE13943472
|
[0002] |
Hose clamp
|
|
| 48. |
VOE4786606
|
[0001] |
Hose nipple
|
|
| 49. |
VOE947623
|
[0001] |
Gasket
|
|
