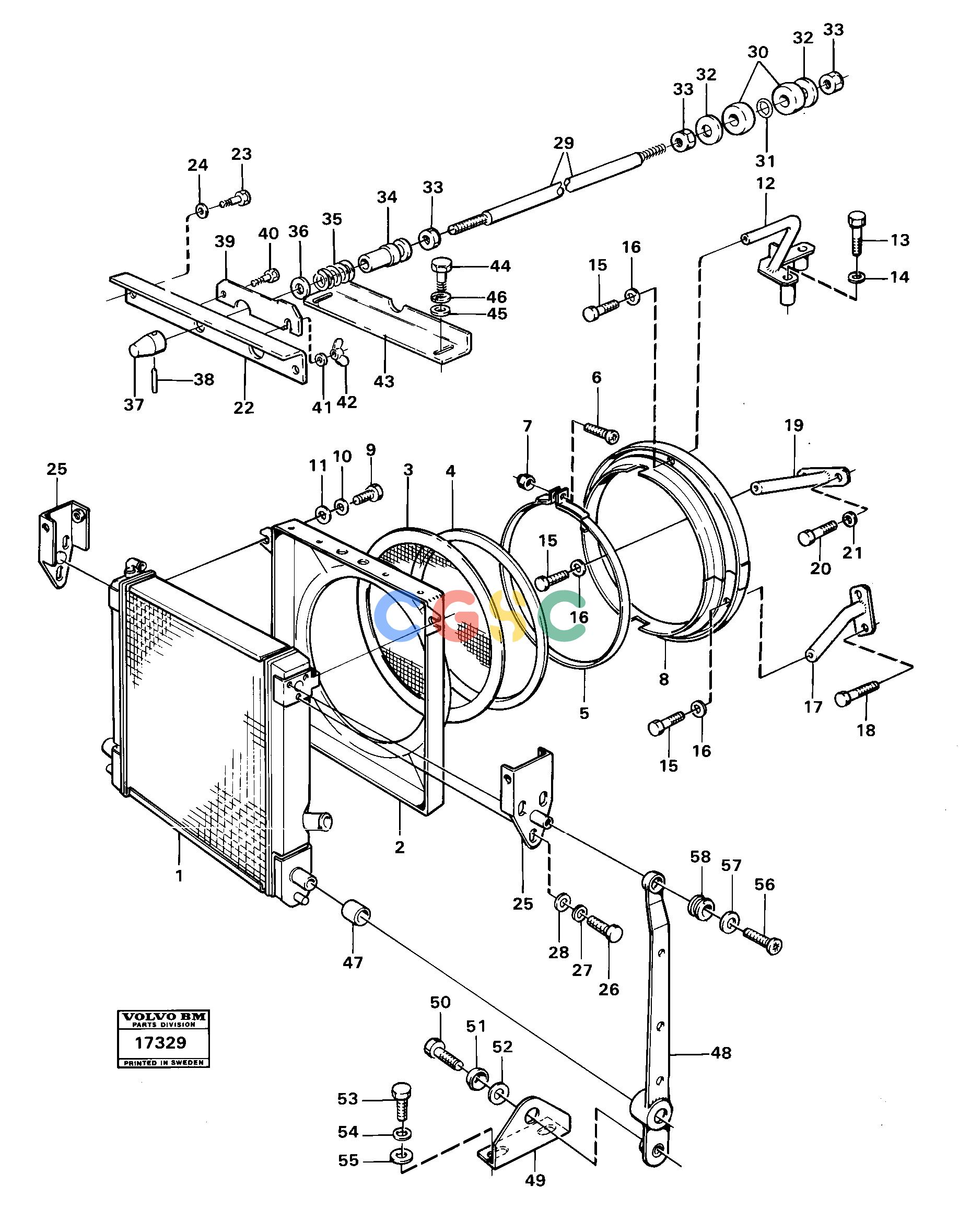

沃尔沃零件查询4400 Radiator with fitting parts Tillv Nr 3744-4400 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
139 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 5. |
VOE1544652
|
[0001] |
Tensioning band
|
|
| 50. |
VOE13970991
|
[2] |
Hexagon screw
|
|
| 51. |
VOE961390
|
[2] |
Disc spring
|
|
| 52. |
VOE930844
|
[2] |
Plain washer
|
|
| 53. |
VOE970945
|
[4] |
Hexagon screw
|
|
| 54. |
VOE941908
|
[4] |
Spring washer
|
|
| 55. |
VOE13960143
|
[4] |
Washer
|
|
| 56. |
VOE956209
|
[2] |
Cross recessed sunk screw
|
|
| 57. |
VOE787889
|
[2] |
Washer
|
|
| 58. |
VOE787653
|
[2] |
Rubber bushing
|
|
| 6. |
VOE956086
|
[0001] |
Cross recessed screw
|
|
| 7. |
VOE13963104
|
[0001] |
Lock nut
|
|
| 8. |
VOE4774131
|
[0001] |
Fan ring
|
|
| 9. |
VOE13955294
|
[0002] |
Screw
|
|
| 1. |
VOE4775002
|
[0001] |
Radiator
|
|
| 10. |
VOE13941907
|
[0002] |
Washer
|
|
| 11. |
VOE13960141
|
[0002] |
Washer
|
|
| 12. |
VOE4854622
|
[0001] |
Fan ring attachment
|
|
| 13. |
VOE955538
|
[0002] |
Hexagon screw
|
|
| 14. |
VOE13942336
|
[0002] |
Spring washer
|
|
| |
|
[0001] |
Radiator
|
|
| 15. |
VOE955293
|
[0003] |
Hexagon screw
|
|
| |
|
|
None
|
|
| 16. |
VOE13955894
|
[0003] |
Washer
|
|
| 17. |
VOE4854626
|
[0001] |
Fan ring attachment
|
|
| 18. |
|
[0002] |
Bolt
|
SEE GROUP 21
|
| 19. |
VOE4854624
|
[0001] |
Fan ring attachment
|
|
| 2. |
VOE4854698
|
[0001] |
Fan shroud
|
|
| 20. |
VOE955529
|
[0002] |
Hexagon screw
|
|
| 21. |
VOE13942336
|
[0002] |
Spring washer
|
|
| 22. |
VOE4854360
|
[0001] |
Cross member
|
|
| 23. |
VOE946471
|
[0002] |
Flange screw
|
|
| 24. |
VOE941908
|
[0002] |
Spring washer
|
|
| 25. |
VOE787654
|
[0002] |
Retainer
|
|
| 26. |
VOE13955294
|
[0006] |
Screw
|
|
| 27. |
VOE13941907
|
[0006] |
Washer
|
|
| 28. |
VOE13960141
|
[0006] |
Washer
|
|
| 29. |
VOE4854537
|
[0001] |
Link rod
|
|
| 3. |
VOE4854363
|
[0001] |
Net
|
|
| 30. |
VOE252203
|
[0002] |
Washer
|
|
| 31. |
VOE925059
|
[0001] |
O-ring
|
|
| 32. |
VOE191940
|
[0002] |
Washer
|
|
| 33. |
VOE955785
|
[0003] |
Hexagon nut
|
|
| 34. |
VOE4854356
|
[0001] |
Spring retainer
|
|
| 35. |
VOE4854353
|
[0001] |
Spring
|
|
| 36. |
VOE925751
|
[0001] |
Washer
|
|
| 37. |
VOE4854357
|
[0001] |
Pin
|
|
| 38. |
VOE13951966
|
[0001] |
Spring pin
|
|
| 39. |
VOE4854358
|
[0001] |
Lock brace
|
|
| 4. |
VOE475903
|
[0001] |
Sealing strip
|
|
| 40. |
|
[0001] |
Bolt
|
|
| 41. |
VOE13955894
|
[0001] |
Washer
|
|
| 42. |
VOE192354
|
[0001] |
Wing nut
|
|
| 43. |
VOE4854359
|
[0001] |
Retainer
|
|
| 44. |
VOE13955295
|
[0002] |
Screw
|
|
| 45. |
VOE13955894
|
[0002] |
Washer
|
|
| 46. |
VOE13941907
|
[0002] |
Washer
|
|
| 47. |
VOE363345
|
[0002] |
Rubber cushion
|
|
| 48. |
VOE787890
|
[0002] |
Attaching arm
|
STD
|
| |
VOE4854957
|
[0001] |
Attaching arm
|
H
|
| |
VOE4854980
|
[0001] |
Attaching arm
|
V
|
| 49. |
VOE787784
|
[2] |
Anchorage
|
STD
|
| |
|
[2] |
Attachment
|
|
