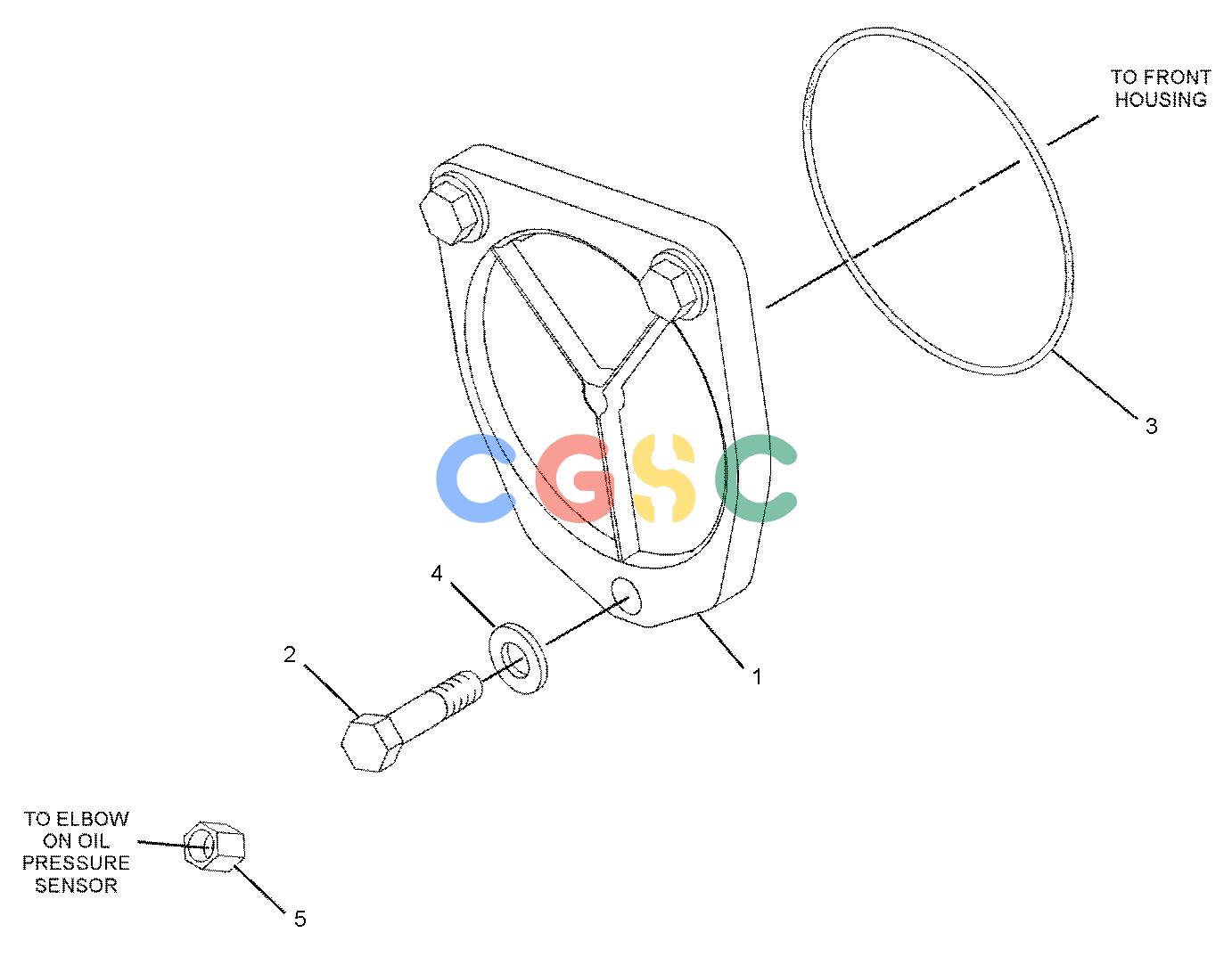

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 285-0823 | [1] | COVER | |
| 2. | 6V-8197M | [3] | BOLT(M12X1.75X40-MM) | |
| 3. | 7J-6285 | [1] | SEAL-O-RING | |
| 4. | 8T-4223 | [3] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 5. | 9L-8493 | [1] | CAP-FLARED | |
| M | METRIC PART | |||
广数供应链运营团队, 14 02月, 2025，浏览： 352 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 285-0823 | [1] | COVER | |
| 2. | 6V-8197M | [3] | BOLT(M12X1.75X40-MM) | |
| 3. | 7J-6285 | [1] | SEAL-O-RING | |
| 4. | 8T-4223 | [3] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 5. | 9L-8493 | [1] | CAP-FLARED | |
| M | METRIC PART | |||
