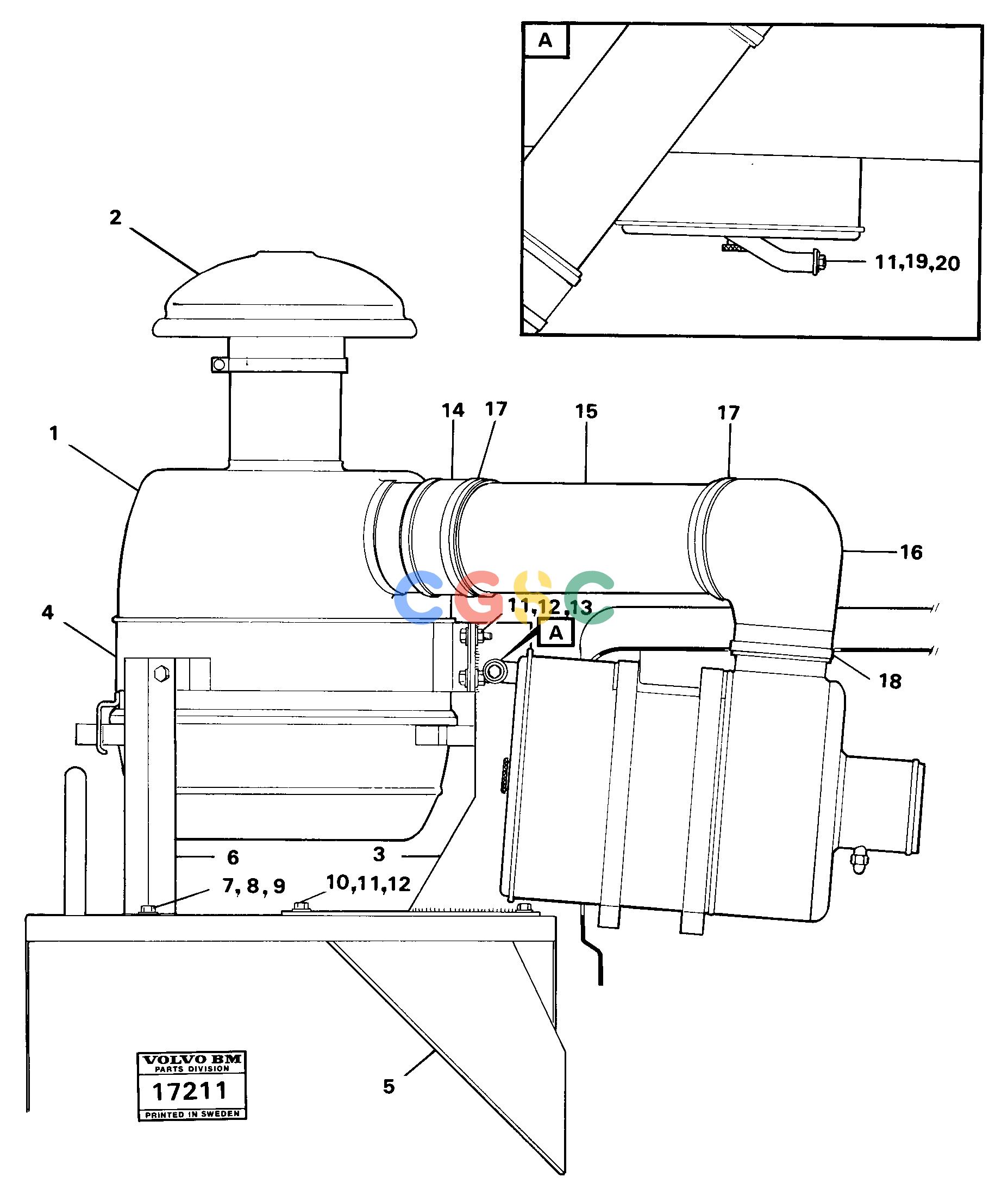

沃尔沃零件查询4400 Air cleaner 99297, 99299, 998174400 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
720 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 5. |
|
[0001] |
Bracket
|
|
| 6. |
|
[0001] |
Brace
|
|
| 7. |
VOE13955894
|
[0004] |
Washer
|
|
| 8. |
VOE60111880
|
[0002] |
Hexagon screw
|
|
| 9. |
VOE955782
|
[0002] |
Hexagon nut
|
|
| 1. |
VOE815706
|
[0001] |
Air cleaner
|
|
| 10. |
VOE13970947
|
[0004] |
Hexagon screw
|
|
| 11. |
VOE976945
|
[0017] |
Washer
|
|
| 12. |
VOE971071
|
[0008] |
Hexagon nut
|
|
| 13. |
VOE13970948
|
[0004] |
Hexagon screw
|
|
| 14. |
VOE4762204
|
[0001] |
Hose
|
|
| 15. |
VOE4774789
|
[0001] |
Tube
|
|
| 16. |
VOE4774276
|
[0001] |
Pipe Bend
|
|
| 17. |
VOE943485
|
[0003] |
Hose clamp
|
|
| 18. |
VOE943484
|
[0001] |
Hose clamp
|
|
| 19. |
VOE955535
|
[0001] |
Hexagon screw
|
|
| 2. |
VOE11707307
|
[0001] |
Cover
|
|
| 20. |
VOE926049
|
[0001] |
Nut
|
|
| 3. |
|
[0001] |
Bracket
|
|
| 4. |
|
[0001] |
Tensioning band
|
|
