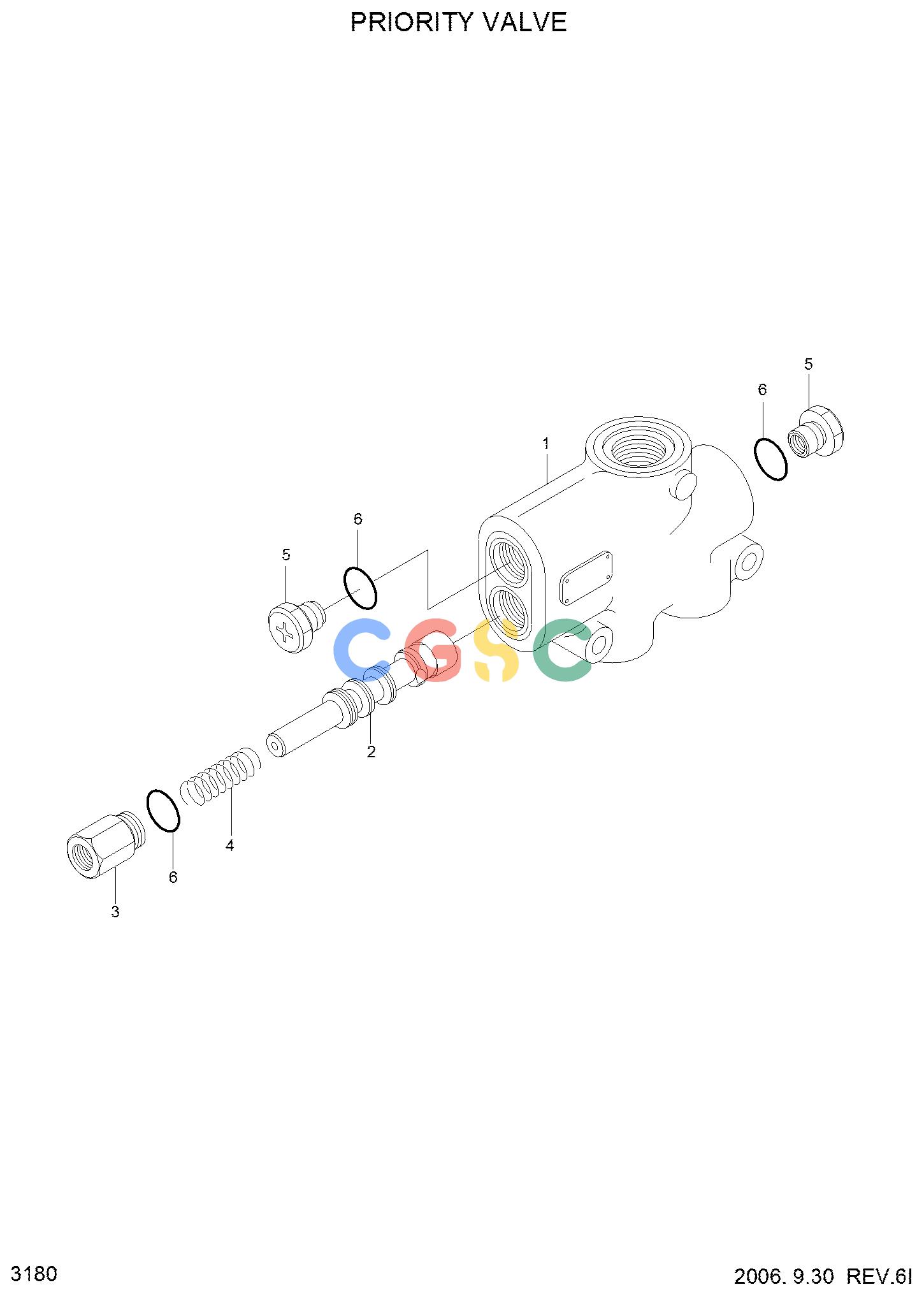

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| . | 31FG-03000 | [1] | PRIORITY VALVE | |
| N1. | 31FG-03010 | [1] | BODY | |
| N2. | 31FG-03020 | [1] | SPOOL | |
| N3. | 31FG-03030 | [1] | PLUG-END | |
| 4. | 31FG-03040 | [1] | SPRING | |
| N5. | 31FG-03050 | [2] | PLUG-END | |
| 6. | 31FG-03060 | [3] | O-RING |
广数供应链运营团队, 14 02月, 2025，浏览： 360 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| . | 31FG-03000 | [1] | PRIORITY VALVE | |
| N1. | 31FG-03010 | [1] | BODY | |
| N2. | 31FG-03020 | [1] | SPOOL | |
| N3. | 31FG-03030 | [1] | PLUG-END | |
| 4. | 31FG-03040 | [1] | SPRING | |
| N5. | 31FG-03050 | [2] | PLUG-END | |
| 6. | 31FG-03060 | [3] | O-RING |
